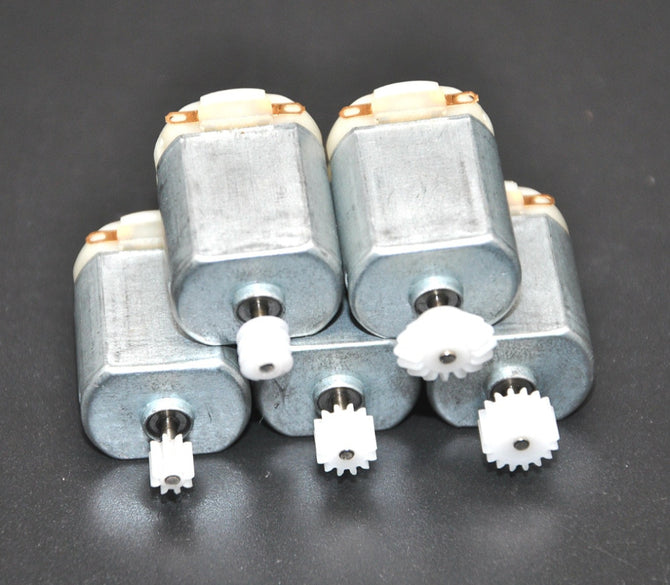

Free shipping 5PCS/ 130 Small DC motor 3 to 5V Miniature motor four-wheel motor small 17000-18000 RPM+(Gear package 5pcs)
US$ 6.25
: In stock
:
Small DC motor 3 to 5V Runs on as little as 3 Volts, 5 Volts Maximum. Current at 5V: 400 mA No Load, 1.7A Stalled (Do not stall for more...
Share:
Small DC motor 3 to 5V
Runs on as little as 3 Volts, 5 Volts Maximum.
Current at 5V: 400 mA No Load, 1.7A Stalled (Do not stall for more than a few seconds at 5V). The RoboRED, when running from an external power supply, can supply 5V at 2A which can run one of these motors. Otherwise a separate 5V supply is needed. Runs well from two AA batteries.
Can be speed controlled with PWM (Pulse Width Modulation) by . A power transistor must be used to control the motor; pins do not have enough power to run this motor directly.
Size: 20 * 15 * 25
Shaft length: 8mm
Shaft Diameter: 2mm
Voltage: 1-6v
Reference current: 0.35-0.4A
3v speed: 17000-18000 rpm
