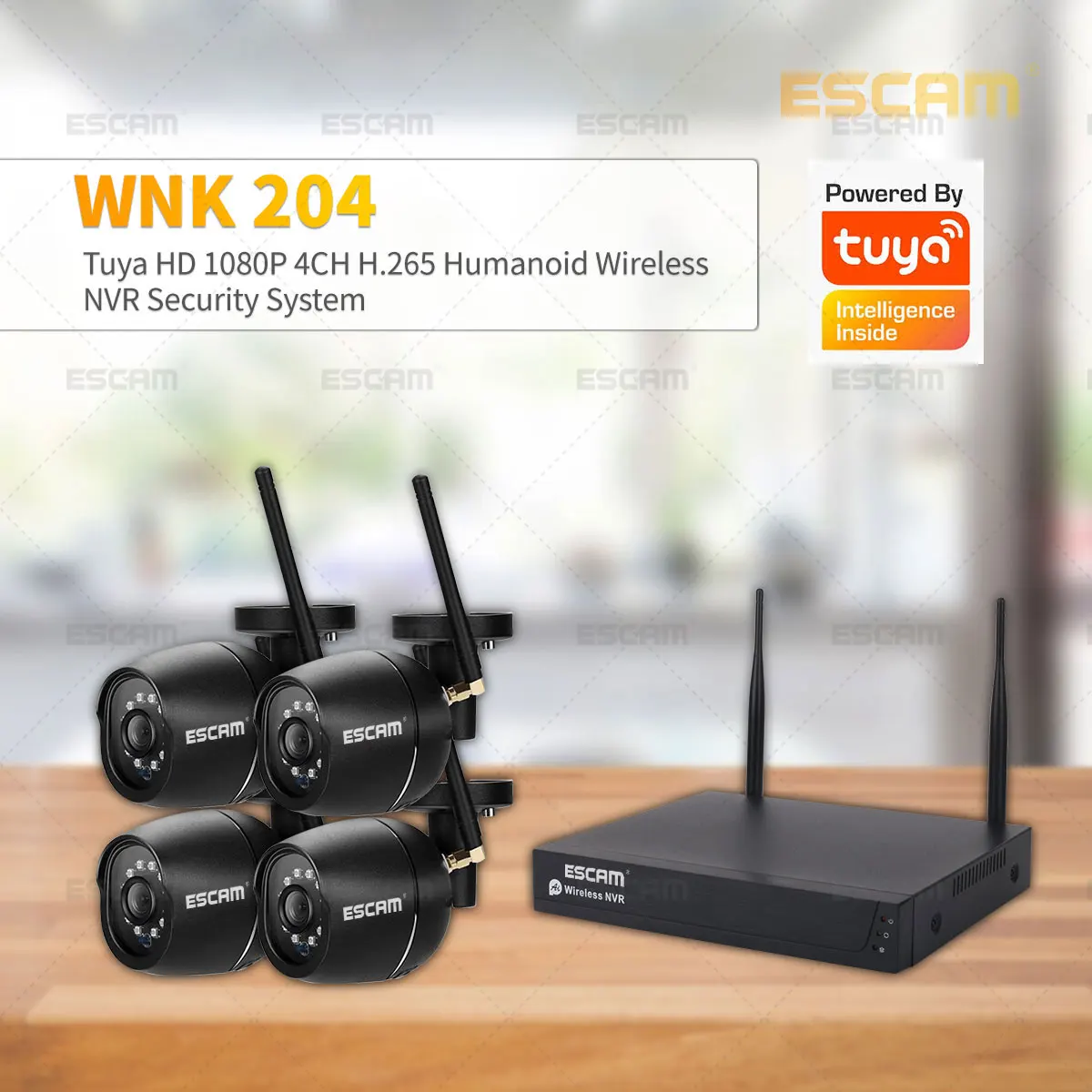

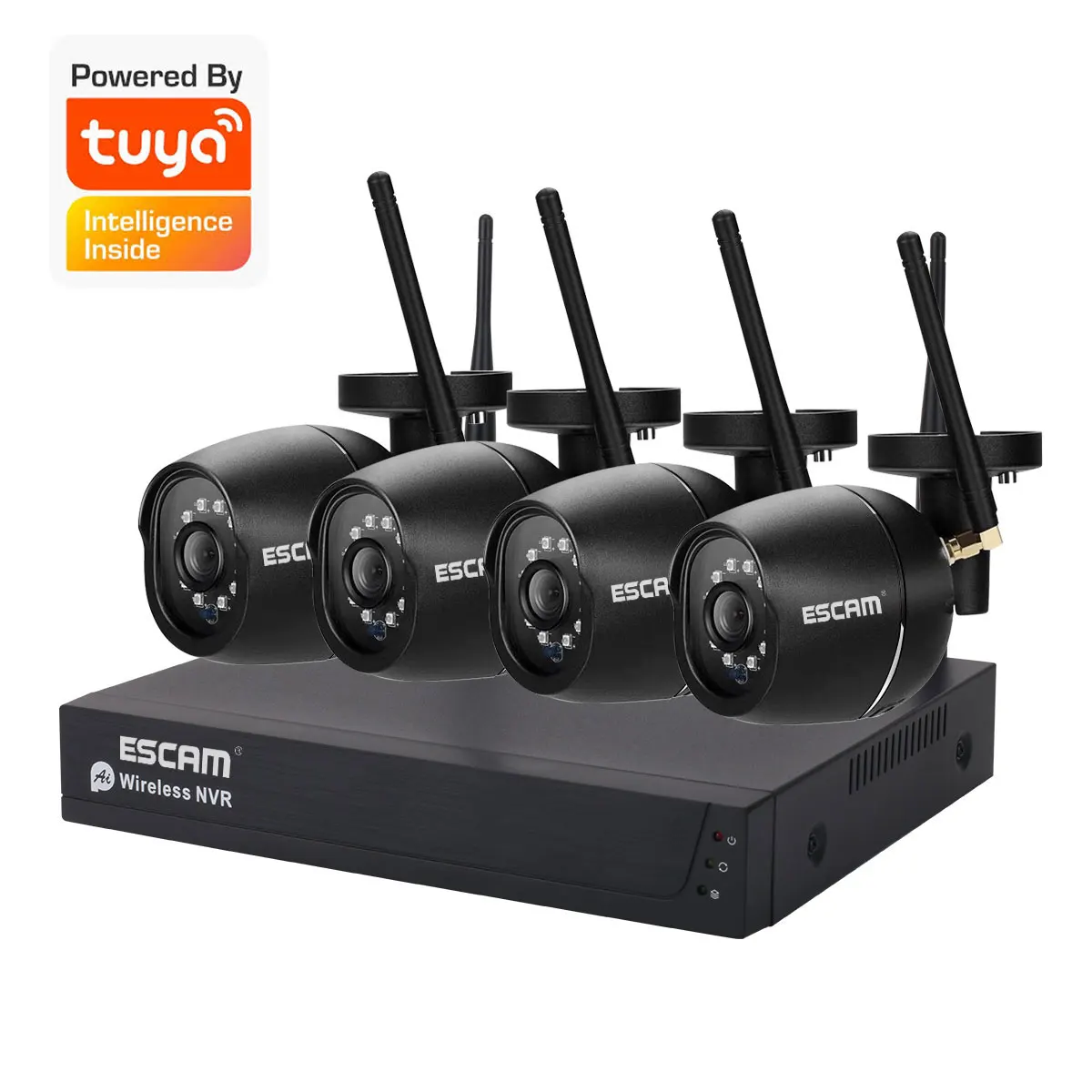

ESCAM WNK204 2MP 1080P Tuya 4CH Wireless WIFI IP Camera NVR Kit AI Humanoid Tracking Outdoor Water-proof CCTV Monitor wholesale bulk price
US$ 168.00
US$ 199.00
: In stock
: 2327827
Product Attribute Model Number : ESCAM WNK204 Cable Length : None PCS of Camera : 4PCS TV System : NTSC,PAL Resolution : 1080P Video Input : 4 Channel Origin : CN(Origin) Model ESCAM WNK204 Wireless IP Camera Parameter Image sensor 1/2.9" 2.0M...
Share:
| Product Attribute | |
|---|---|
|
Model Number : ESCAM WNK204
|
Cable Length : None
|
|
PCS of Camera : 4PCS
|
TV System : NTSC,PAL
|
|
Resolution : 1080P
|
Video Input : 4 Channel
|
|
Origin : CN(Origin)
|
|
| Model | ESCAM WNK204 | |
| Wireless IP Camera Parameter | ||
| Image sensor | 1/2.9" 2.0M Pixel CMOS | |
| Lens | 3.6 mm, horizontal field of view: 75° | |
| Min. Illumination | Color：0.01Lux@(F1.2，AGC ON)，B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON) | |
| S / N ratio | ≥39dB | |
| Shutter speed | 1/5 - 1/20,000s | |
| Day & Night | Day / Night / External control（IR Cut Filter）,IR Distance 15m(50 ft) | |
| AGC | Auto | |
| White balance | Auto | |
| Wide dynamic range | Auto | |
| Digital noise Reduction | 2DNR,3DNR | |
| Video Compression | H.265 /H.264 | |
| Audio Compression | G711 | |
| Max.Image Resolution | 1920x1080@15fps | |
| Image Resolution | Main stream （1920x1080） | |
| Sub-stream （640×360） | ||
| Bitrate | VBR, 32Kbps~10Mbps variable | |
| AI Motion Detection | Support human motion detection | |
| P2P | Android、IOS | |
| Protocols | TCP/IP，HTTP， NTP， DHCP，DDNS，DNS，P2P | |

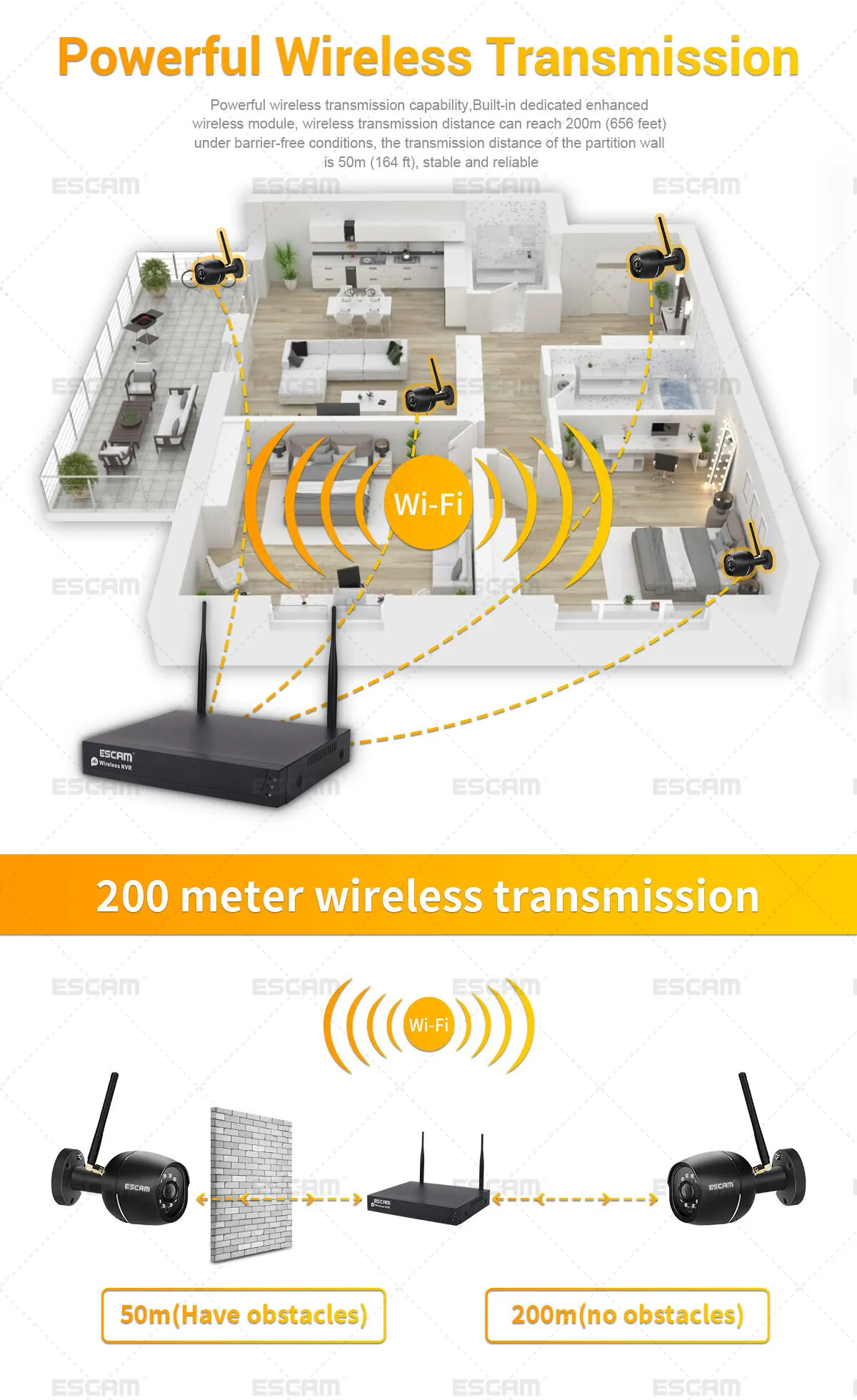

| Wireless Transmission | Transmission distance : Max 200 meters with no obstacle，Max 50 meters if penetrate the wall， The actual transmission distance according to the situation(Only 2.4Ghz) | |
| Power | 12V1A | |

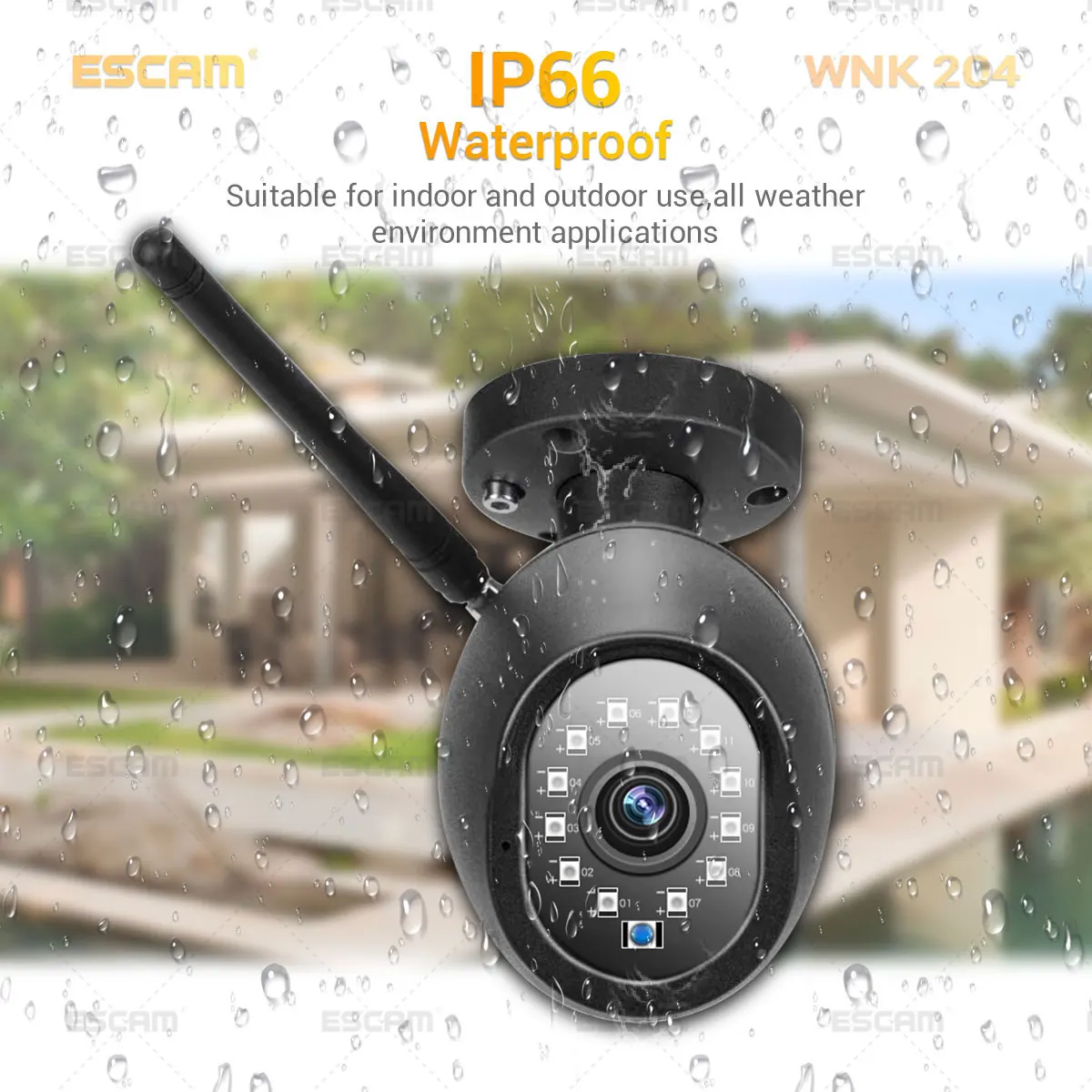

| Waterproof | IP66 | |

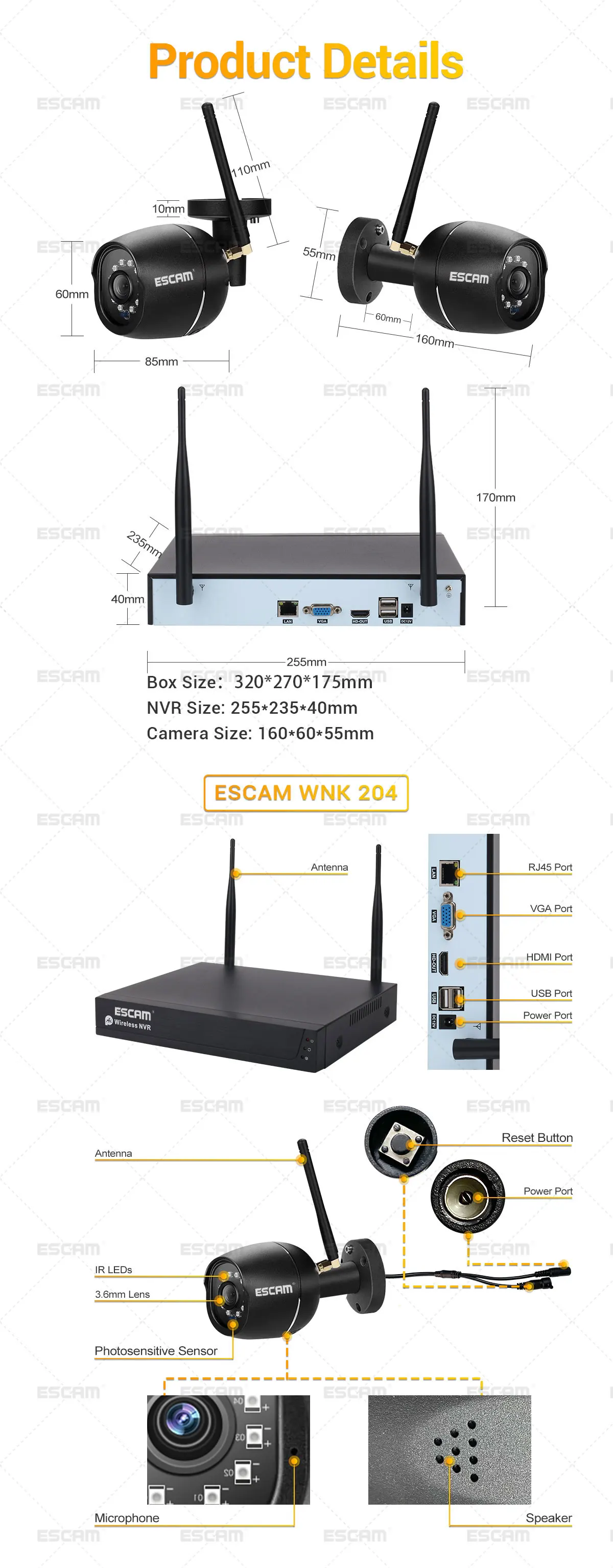

| Dimensions | 160x60x55mm | |
| Weight | 0.3KG | |
| Working Environment | -30°C ~60°C, Humidity≤90%RH(Unsupport-condensing) | |
| Wireless NVR Parameter | ||
| System | Operating System | Embedded Linux |
| A/V Input | Video Input | 4 xWIFI IP Camera |
| A/V Output | VGA Output | 1024*768,1280*1024,1440*900,1920*1080(1080P) |
| HDMI Output | 1024*768,1280*1024,1440*900,1920*1080(1080P) | |
| HDD | Interface Type | 1 SATA Interface |

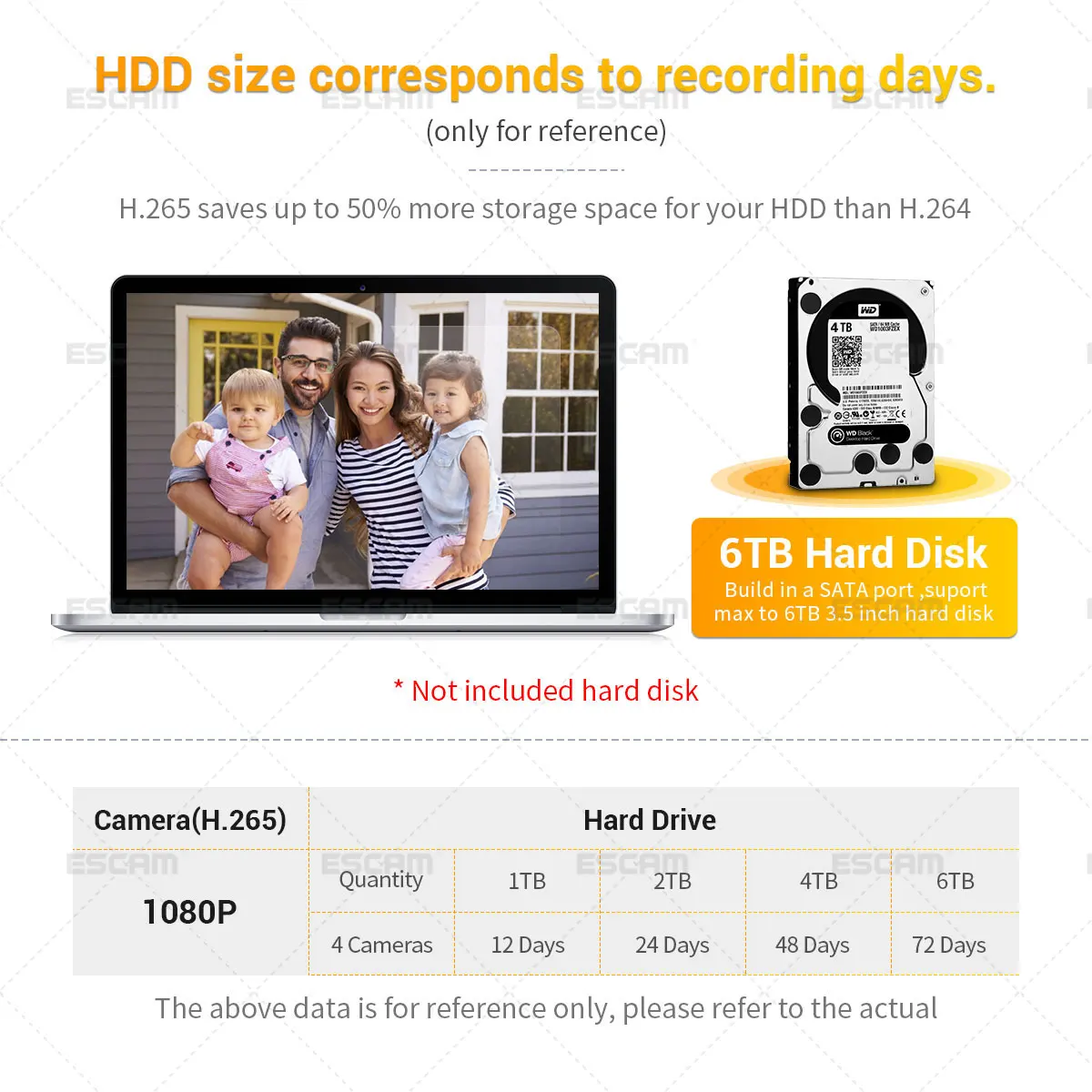

| Maximum Capacity | 6TB（Not included） | |
| Record & playback | Recording mode | Manual/Alarm/Continuous |
| Synchronous Playback | 4 Channel | |
| Storage & Backup | Record Storage | 3.5inch hard disk&Cloud Storage |
| Backup mode | USB hard disk | |
| Network | Protocol | TCP/IP，HTTP， NTP， DHCP，SMTP，DDNS，DNS，P2P |
| Mobile Device | iPhone, Android Smartphones | |
| Remote Software | App access | |
| Computer access | IE Browser | |
| External Interface | USB Connector | 2x USB 2.0 |
| Network Interface | 10M/100M Ethernet RJ45 port | |
| General | Power supply | DC 12V 2A |
| Power Consumption | 5W（Without HDD） | |
| Work environment | Temperature:-10℃－＋55℃, Humidity:10%-90%RH | |
| Dimension | 255*235*40mm | |
| Weight | 0.62kg | |
| Package information | Dimension | 320*270*175mm |
| Weight | 2.8kg | |

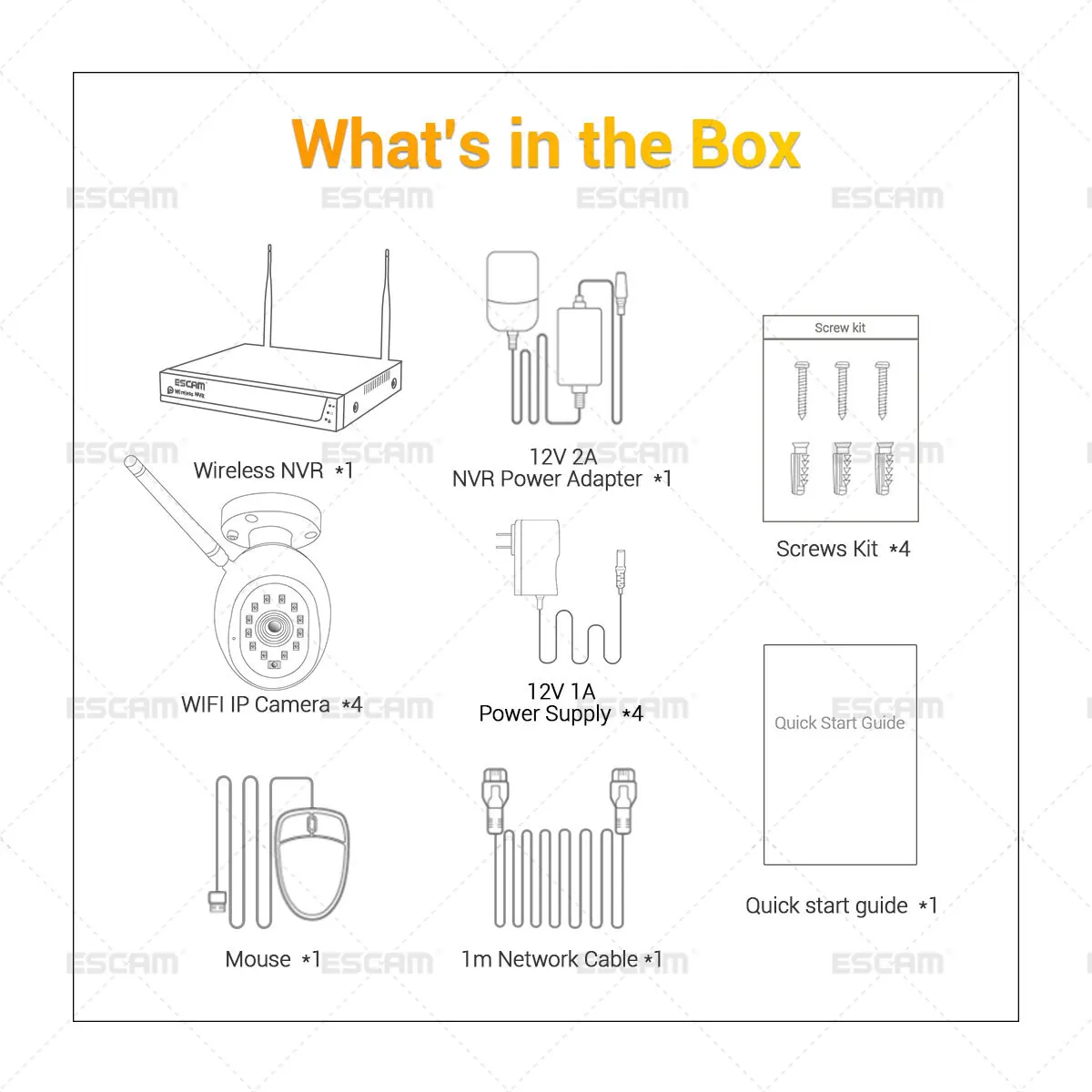

| Packing List | 4CH WIFI NVR*1,WIFI IP Camera*4,NVR Power Adapter*1,Camera Power adapter *4 ,Guide*1,USB Mouse*1,Screws Package*4,1m Network Cable*1 | |
