EQKIT® Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit wholesale bulk price
US$ 2.99
: In stock
:
Compatibility To confirm that this part fits your vehicle, please enter your vehicle's details below. Year: Select Make: Select Model: Select Submodel: Select Trim: Select Engine: Select Clear All This...
Share:
Compatibility
To confirm that this part fits your vehicle, please enter your vehicle's details below.- Year:
Select
- Make:
Select
- Model:
Select
- Submodel:
Select
- Trim:
Select
- Engine:
Select
- Clear All
This part is compatible with 0 vehicle(s).
Show all compatible vehicles
This part is compatible with
1 vehicle(s) matching
This part is not compatible with
Recent searches
- Year
- Make
- Model
- Submodel
- Trim
- Engine
How it light:
Feature:
Feature:
Name: HV-1 high-pressure igniter (DIY kit, you need to assemble it)
Input voltage: DC3-5V
Input current: 3A
Operating current: no less than 2.5A
Working mode: self-excited oscillation boost
Working frequency: about 20KHz
Continuous working time: 10 seconds
Arc length: about 5 mm
Size: 71 x 18 x 12mm (L x W x H)
Ignition switch: yes
Weight: 15 g

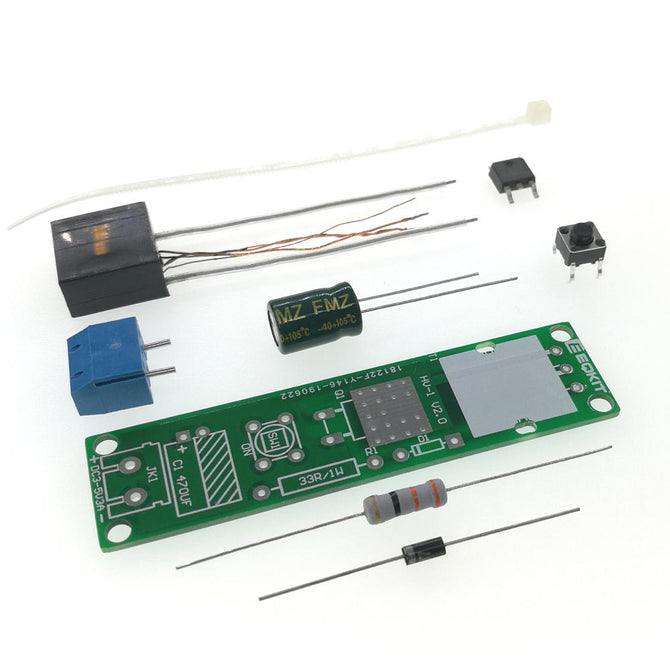

List:
List:
| NO. | Component Name | PCB Marker | Parameter | QTY |
| 1 | Carbon film resistors | R1 | 33R/1W | 1 |
| 2 | Electrolytic capacitor | C1 | 470UF | 1 |
| 3 | Diode | D1 | 1N5819 | 1 |
| 4 | Button | SW1 | 6*6*5mm | 1 |
| 5 | Transistor | Q1 | D880 | 1 |
| 6 | Battery terminal | JK1 | KF301-2P | 1 |
| 7 | Transformer | T1 | 14*15*8 | 1 |
| 8 | PCB | -- | 18*71mm | 1 |
| 9 | Screw | Q1 | M3*5 | 1 |
| 10 | Nut | Q1 | M3 | 1 |
| 11 | Tie | T1 | 3*100mm | 1 |
Package includes:
1 x Arc Ignition Lighter Kit
After assemble, for reference only
After assemble, for reference only
,
,
,
,
,
