ELP 4K HDMI 12X Zoom USB Camera Instant Zoom H.265 H.264 1080P 60fps With 2.4G Remote Control Webcam UVC for Video Live Stream
: In stock
:
Features
* TOF Laser Fast Autofocus: 200ms, HFOV 72 degree, no distortion also could manual focus, 12X zoom
* Zoom: 12x zoomm-10x optical zoom and 1.2 digital zoom
* High frame rate - MJPEG 3840*2160 @30fps/1920*1080 @60fps; H.264/H.265 1920*1080 @30f'p'sfps
* Sony 1/2.8” CMOS sensor for high quality image
* MJPEG/YUY2/H.264/H.265 dual output format optional

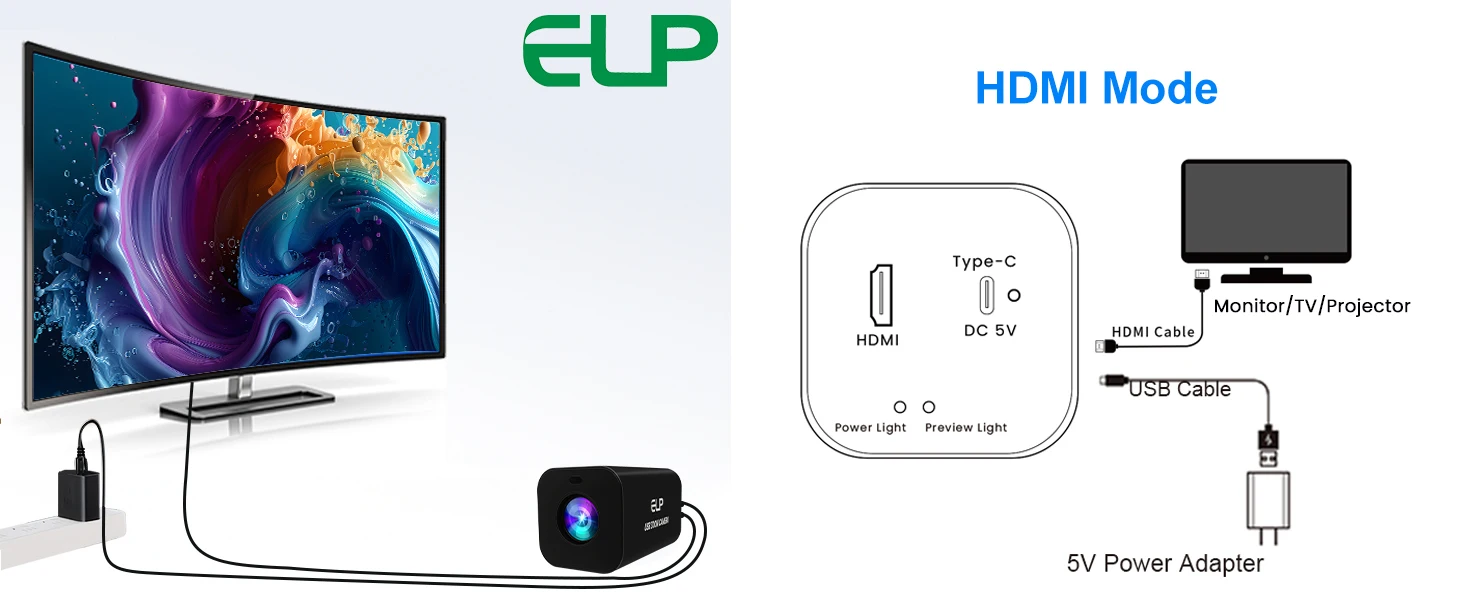

* Interface:Type-C & HDMI

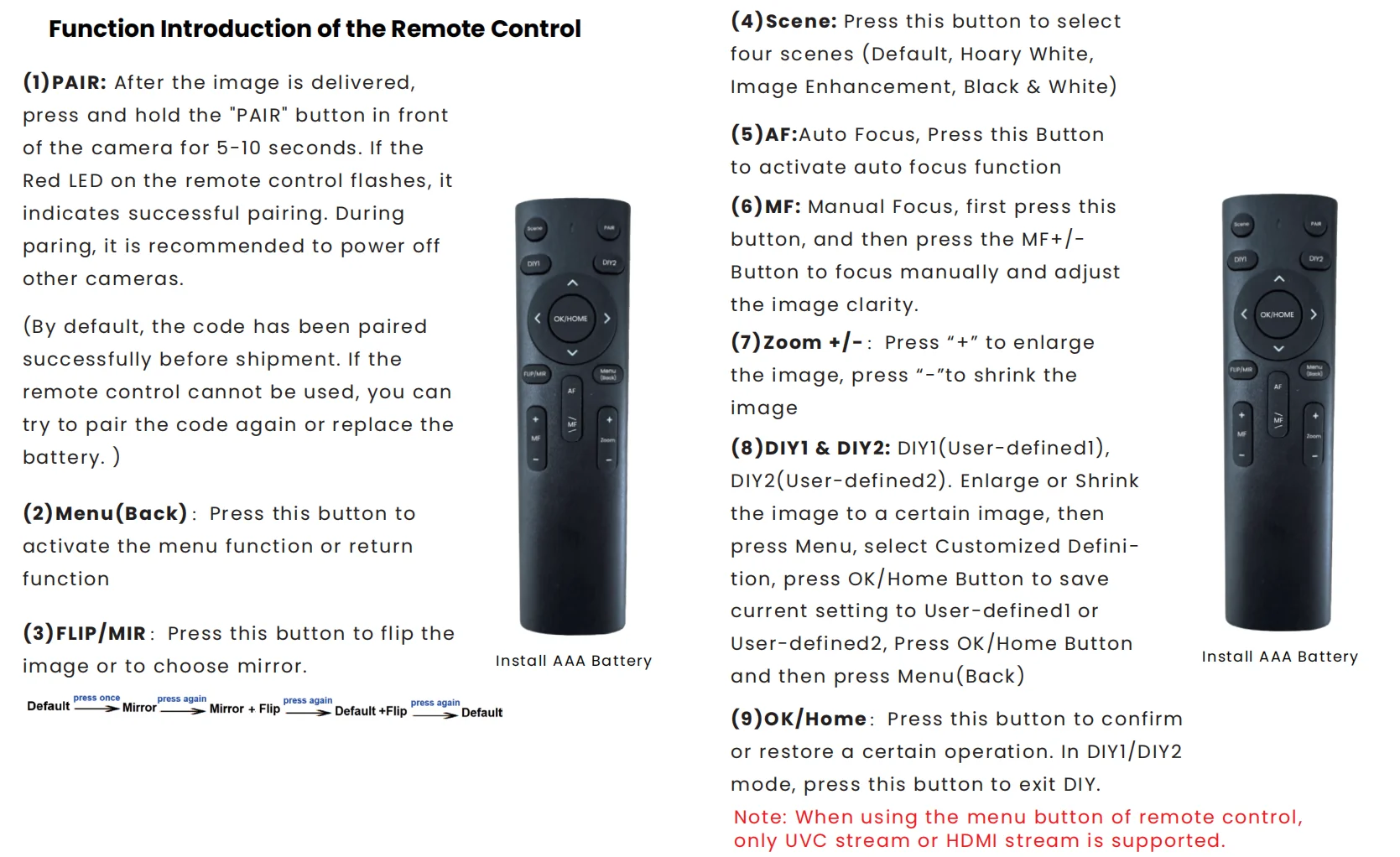

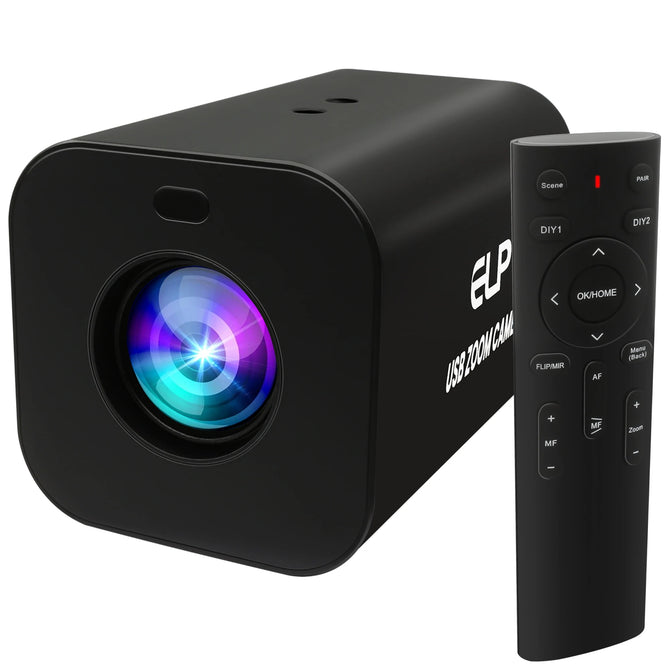

* 2.4G wireless infrared remote control
* UVC compliant - support Windows, Linux, Android system with UVC
What is HDMI?
"HDMI" stands for High-Definition Multimedia Interface. It is a proprietary video interface for the transmission of crisp, clear visuals;
It is a digital transmission, maximum video quality guaranteed; It supports a wide range of resolutions and refresh rates, including
1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming. Except these advantages, HDMI provides a seamless way to enjoy high-quality multimedia content across different devices.
What is H.265?
H.265 is the successor to the previous MJPEG standard. H.265 was designed to improve video compression efficiency and reduce the amount of data needed to transmit or store in high-quality video content. H.265-encoded videos can achieve the same video quality at a lower bit rate or achieve higher video quality at the same bit rate compared to MJPEG videos. This is quiet important for high-resolution content like 4K and 8K videos.
Specification
Model No.: |
ELP-USB4KCAM06ZF-B12 |
|
Zoom Range |
12X Zoom |
|
Image Sensor |
SONY 4K 1/2.8 inch CMOS Sensor |
|
Pixel Size |
2.0μm X 2.0μm |
|
Scanning System |
4:3/16:9 Progressive Scan |
|
Synchronization System |
Internal Synchronization |
|
Sensor |
Effective Resolution |
3840（H）X2160(V) |
Min. illumination |
0.2 Lux |
|
Horizontal Resolution |
1000TVL |
|
Compression Format |
MJPEG / YUY2(YUYV)/H.264/H.265 |
|
Resolution & Frame |
MJPEG: |
|
Optical |
Lens |
Autofocus, 10X Optical Zoom F=4.8mm-48.2mm |
Zoom Speed |
Wide~Tele: About 3.0s Tele~Wide: About 2.6s |
|
Focus Mode |
Auto/Manual |
|
Focus Range |
About 10cm~∞(Wide) About 50cm~∞(Tele) |
|
Field of View Angle |
About 72°(Wide) About 7.2°(Tele) |
|
Function |
Automatic Aperture |
Auto/Manual |
Exposure |
Auto/Manual |
|
White Balance |
Auto/Manual |
|
Electronic Rolling Shutter |
1/2~1/10000(s) |
|
Remote Control |
2.4G wireless remote control |
|
Menu |
Function menu in Chinese and English |
|
Noise Reduction |
2D&3D noise reduction |
|
Other Functions |
Gamma, Mirror Image, Flips, Anti-flicker |
|
Communi-cation Mode |
UVC Protocol |
Standard UVC protocol |

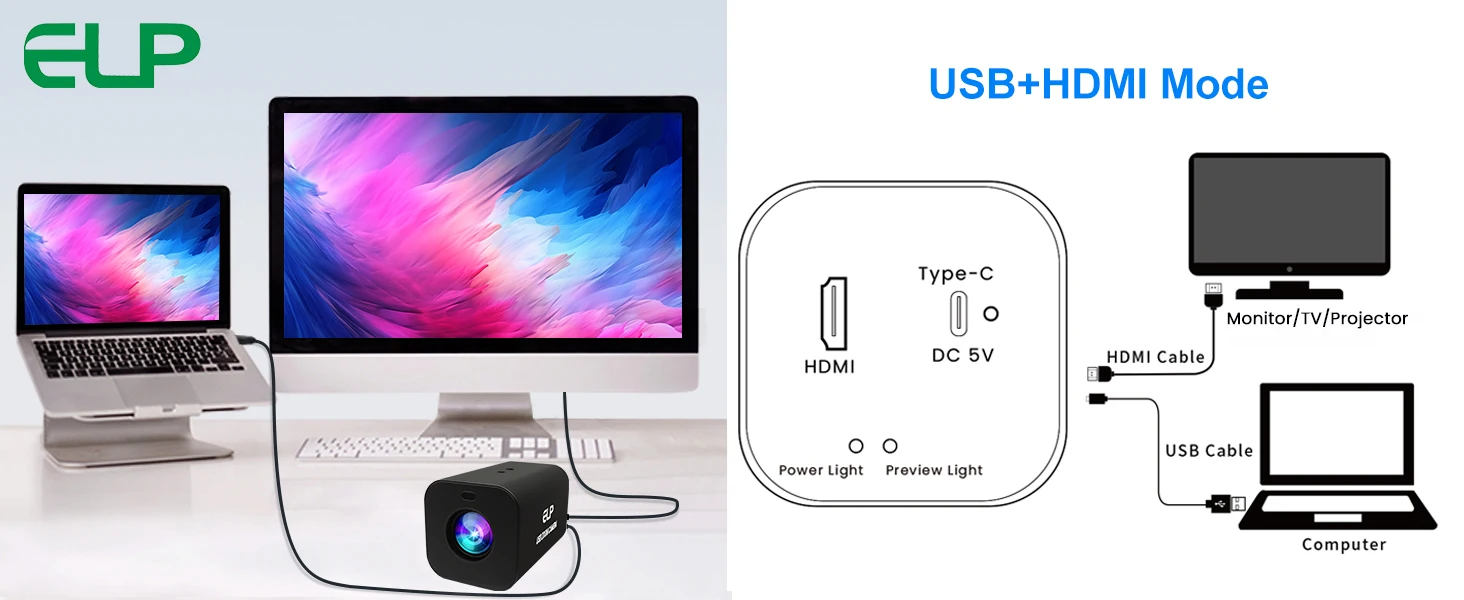

Display Modes & Power Supply |

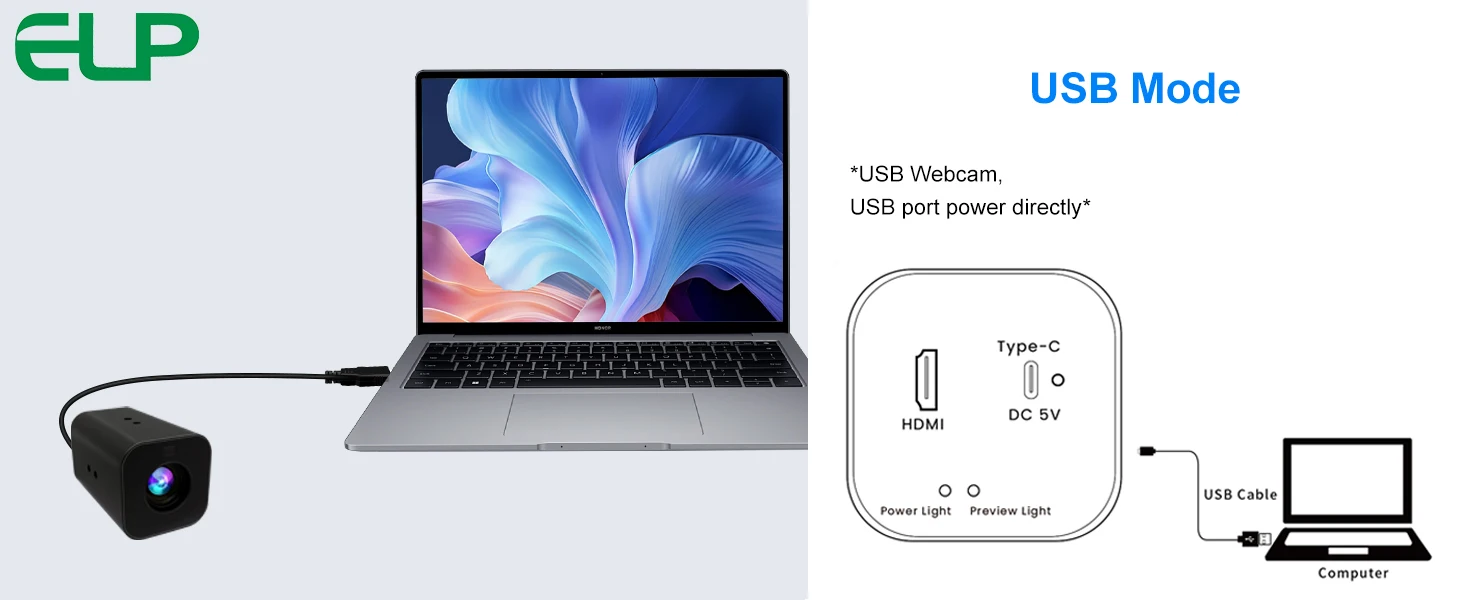

I. USB Output |
|
Working Temperature |
-20°C~60°C |
|
Power Supply |
DC 5V, 2A |
|
Size |
Metal Case, 66.5x66.5x104.3mm/ about 330g |
|
USB Cable |
3m cable with Type-C & USB 3.0 port |
|
HDMI Cable |
1.5m cable with HDMI ports |
|
Operating System Request |
Win7/Win8/Win9/Win10/Win11 etc. |
|
Product Display

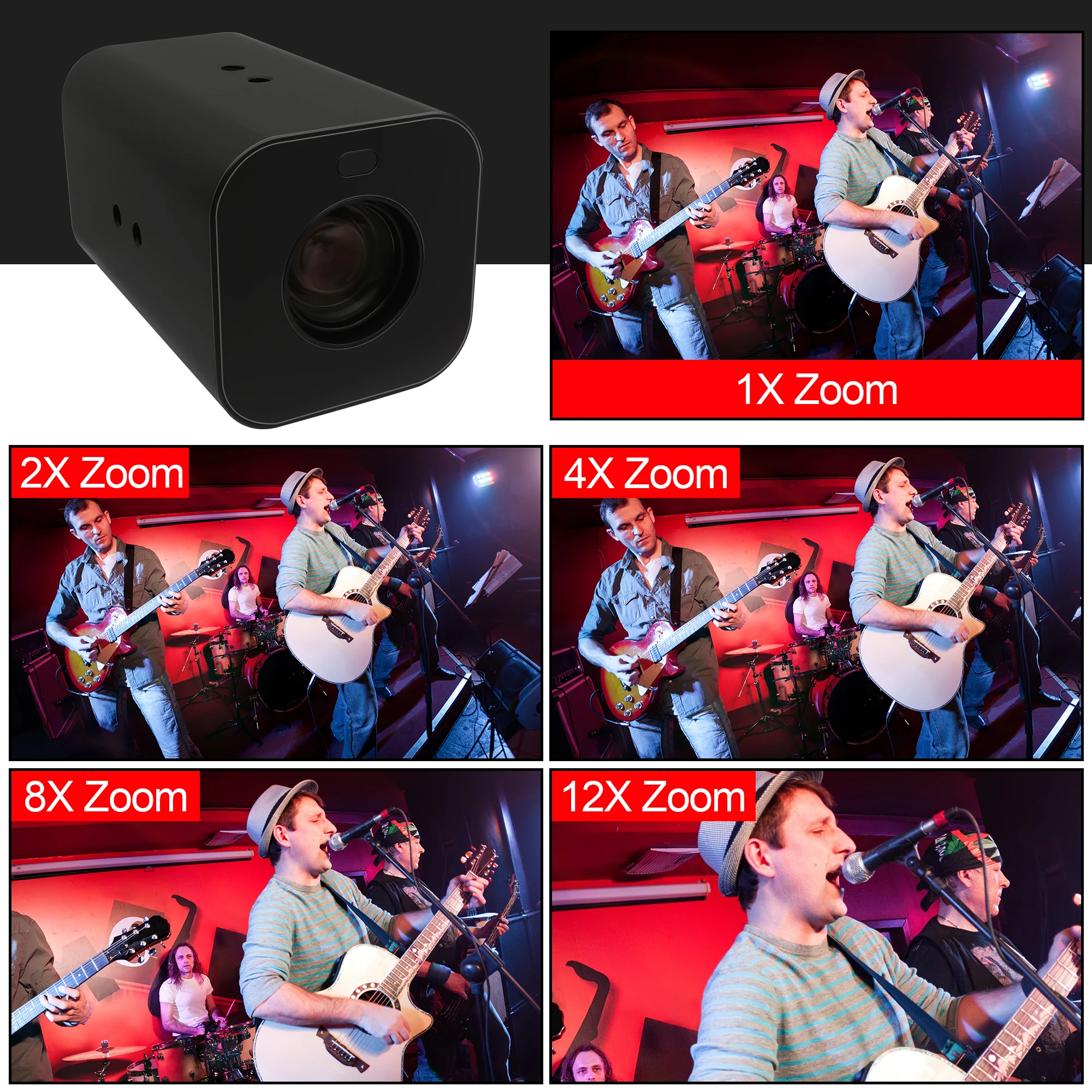

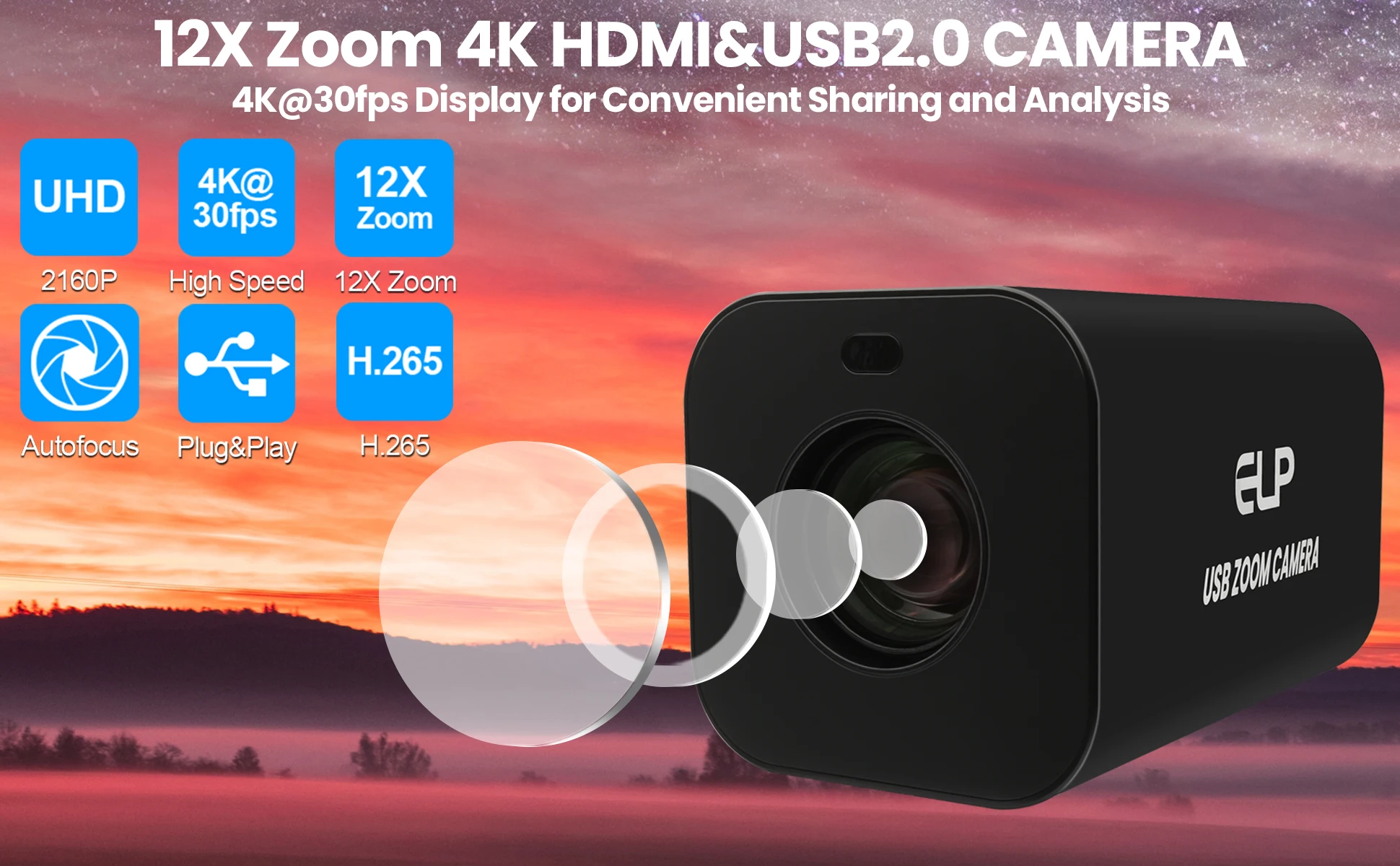

12X zoom hdmi usb camera, good zoom in and out, great for shooting in detail at different distance and always delivers clear and precise images.
H.265/H.264/MJPEG Compression Format
Product Size
Applications
Widely used in Commericial, Industrial, Medical,Automobile, Astronomical, Biological Field:
Like Online-Teaching, Webcast, industrial camera, Video Conferencing, Live Streaming, Security, Medical device,Industrial Inspection, Scientific research and development, Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner etc.
