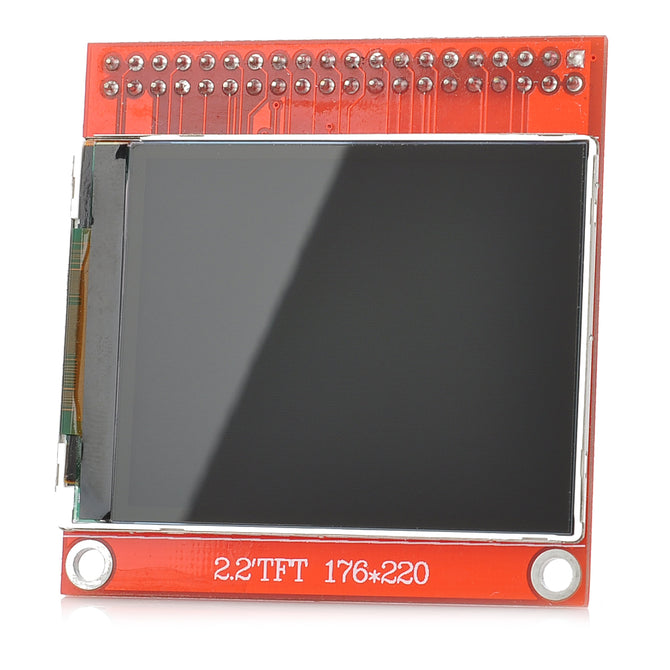

Elecfreaks TFT01-2.2 2.2" TFT LCD Module for DIY Arduino & SCM - Red + Black (176 x 220)

US$ 4.90 US$ 9.90

Availability: In stock

SKU: 238268

Brand Elecfreaks Model TFT01-2.2 Quantity 1 Color Red + black Material FR4 Features Mini size, high resolution; UTFT compliant; Support TFT01 LCD Shield / TFT01 Mega shield; Can be used...

Add to wishlist

Tweet
Facebook
Google+
Linkedin
Pinterest

Brand	Elecfreaks
Model	TFT01-2.2
Quantity	1
Color	Red + black
Material	FR4
Features	Mini size, high resolution; UTFT compliant; Support TFT01 LCD Shield / TFT01 Mega shield; Can be used in arduino directly
Specification	TFT01_2.2 is a 2.2"TFT LCD Screen Module, 40pins interface, not just a LCD break but include SD card(Support 2GB), but without Touch screen; VCC 3.3V and Backlight LED 3.3V; The LCD in the TFT01 is S6D0164; It's 176 x 220 (resolution), the contrast is also very suitable
Application	Arduino development testing and learning
English Manual/Spec	Yes
Packing List	1 x TFT01-2.2 TFT LCD module
