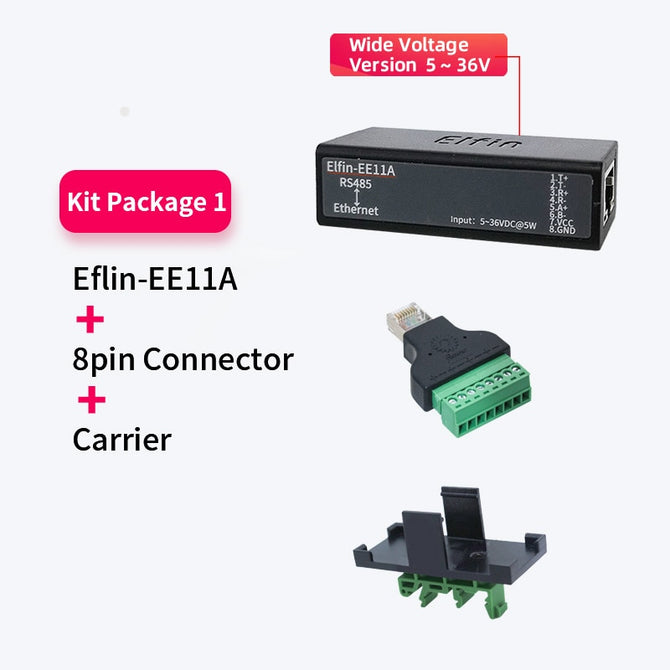

EE11A MINI RS485 Serial Server to Ethernet ModbusTCP to Ethernet RJ45 Converter With Eembedded Web Server
: In stock
:
Elfin-EE11A series support RS485 to Ethernet
Note: EE11A is the upgrade version, support wide voltage 5v-36v, other Function with same as EE11 .
The Elfin-EE11 series support RS485 to Ethernet, Elfin-EE11 unit is a complete solution for serial port device connecting to network. This powerful device supports a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack,and standards-based (AES) encryption.
For Elfin Series Assemble Drawing
For Elfin Series Assemble Drawing RS232 to GPRS/GSM Elfin-EG10 RS485 to GPRS/GSM Elfin-EG11 RS232 to Wifi Elfin-EW10 RS485 to Wifi Elfin-EW11 RS232 to Ethernet Elfin-EE10 RS485 to Ethernet Elfin-EE11 RS485 to 2G/3G/4G Elfin-EG41 RS485 to 2G/3G/4G/Ethernet Elfin-EG46
StorageTemp. |
-45 ~ 105°C， 5 ~ 95% RH |
Processor |
Cortex-M3 |
Basic Frequency |
96MHz |
Flash |
2MB |
SDRAM |
128KB |
Operating System |
FreeRTOS |
Ethernet |
1 |
Interface Standard |
10/100M Base-T Auto-Negotiation |
Network Protocol |
IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP， AutoIP， ICMP， Telnet，NTP， Modbus TCP |
Security Protocol |
TLS 1.2 AES 128Bit DES3 |
Port Number |
EE10：1 RS232 EE11：1 RS485 |
Data Bits |
5，6，7，8 |
Stop Bit |
1，2 |
Check Bit |
None，Even，Odd |
Baud Rate |
TTL：600 bps~460800bps |
Flow Control |
No Flow Control Half Flow Control(RS485) Software Xon/ Xoff flow control |
Configuration |
Http Web Configuration Customization of HTTP Web Pages |
Size |
61 x 26 x 17.8 mm |
Input Voltage |
5～18VDC |
Power |
<400mW |
Network Transformer |
Integrated |
Work Temp. |
-40 ~ 85°C |
