Easy IO Shield for Pro Mini Kit Easy-plug Colorful XH 2.54mm Sensor Module Expansion with Pro Mini Board / USB cable for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Description

If you want to place the bulk order that the stock is not enough, please contact with us.

This kit includes one Easy IO Shield, one Arduino compatible Pro Mini board, and one type-C USB cable. This kit can easily help you to evaluate the performance of the ATMEGA328P or ATMEGA328PB development board and the demo projects.

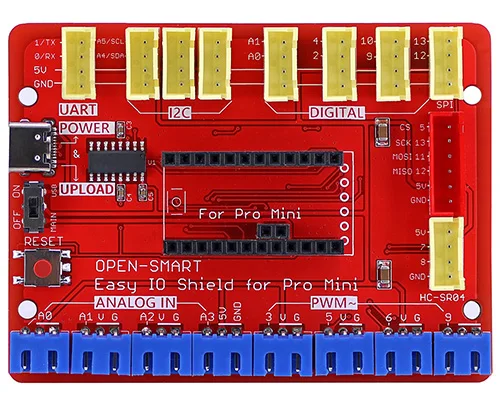

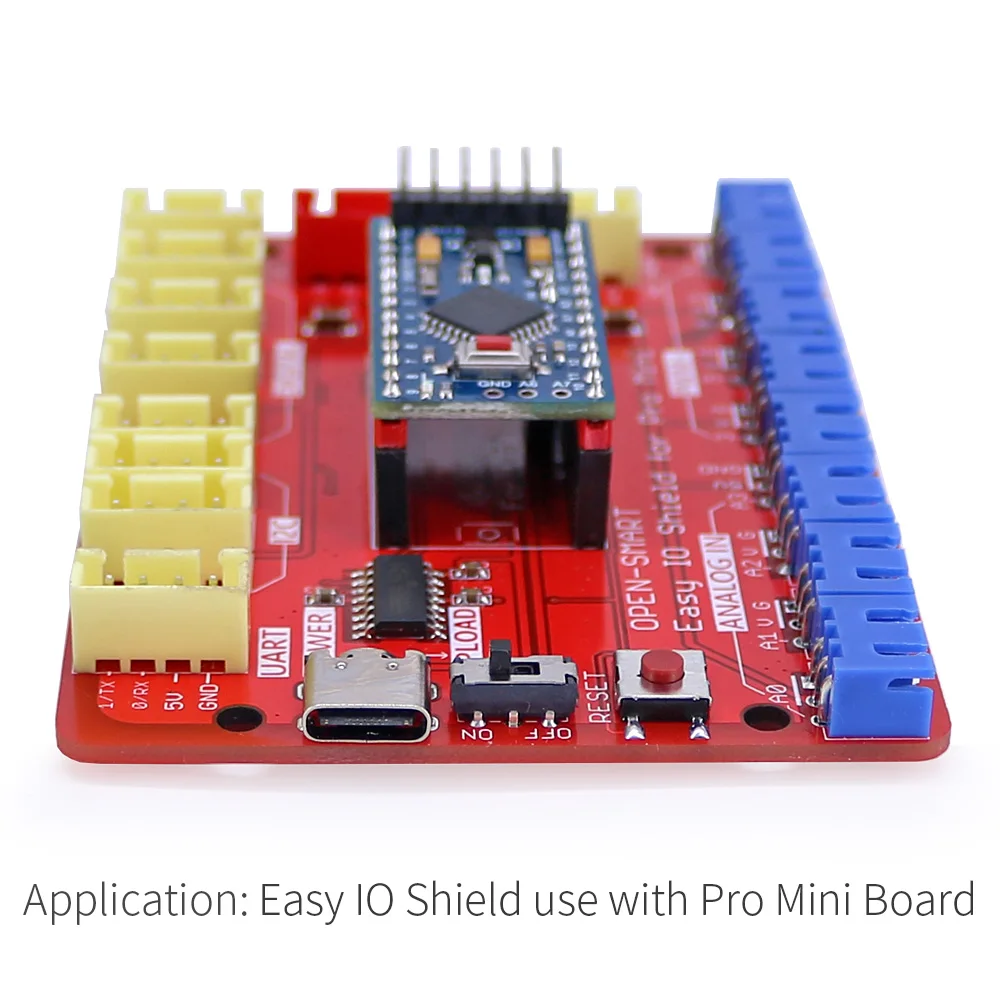

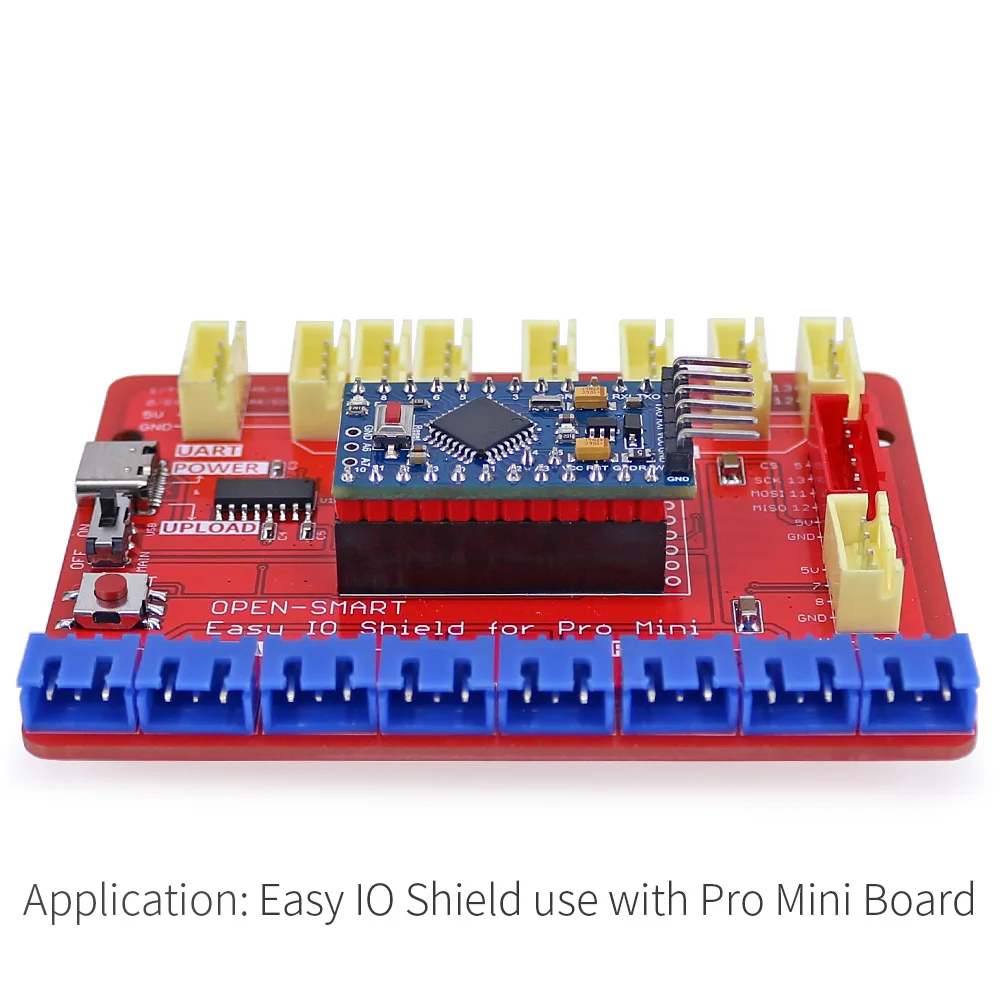

The Easy IO Expansion Shield is compatible for Arduino Pro Mini board.

It is a connection bridge between the electronic building block module and the board.

The Easy IO Shield extends SPI port, UART, I2C, PWM and analog INPUT pins for the board, so DIY enthusiasts, interactive designers can quickly attach the modules to the board and accelerate project development progress.

Easy to plug OPEN-SMART products with XH cable into this shield and do not need to pay attention to the connections. So it is great for training institutions and visual programming education.

-------------You can also buy the Easy IO Shield Here （Link）:-----------------

--------------------------------------------------------------------------------------------------------

Features:

- Compatible for Arduino Pro Mini;

- MCU on the board: ATMEGA328PB or ATMEGA328P;

- TypeC USB on the Shield: can supply power and upload code;

- Onboard switch to select whether the power is from the typeC USB or the board;

- Onboard suitable reset button;

- All sockets onboard are XH 2.54mm pitch;

- I2C socket number: 3;

- UART socket number: 1;

- Hardware SPI socket: 1,for TF card module to store some information;

- 3PIN socket number: 8;

- 4PIN socket number: 9;

- Onboard 4PIN socket for HC-SR04 ultrasonic sensor module;

- Analog input socket number: 4(A0, A1, A2, A3),also can be digital input / output;

- PWM output socket number: 4(D3, D5, D6, D9).

- Colorful socket: 3pin is blue, 4pin is yellow, 6pin is red.

Dimensions for the Easy IO Shield:

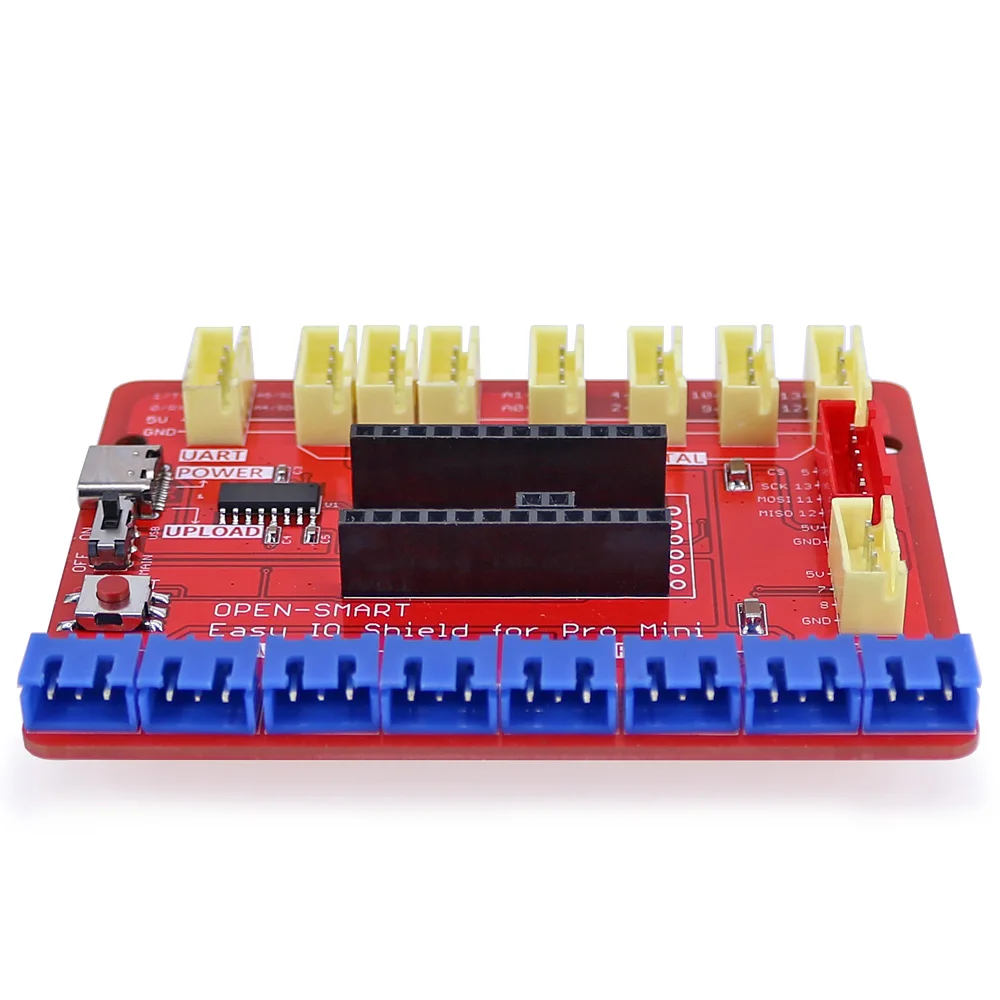

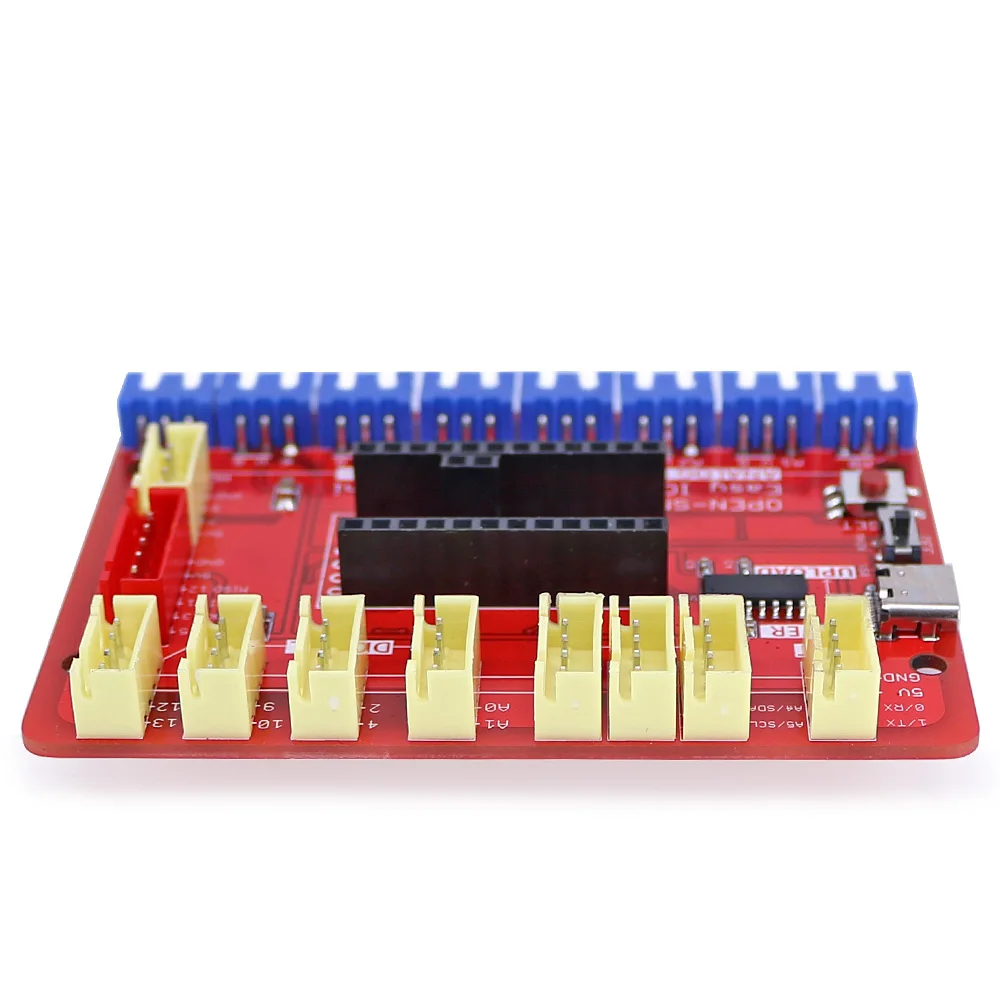

Photos

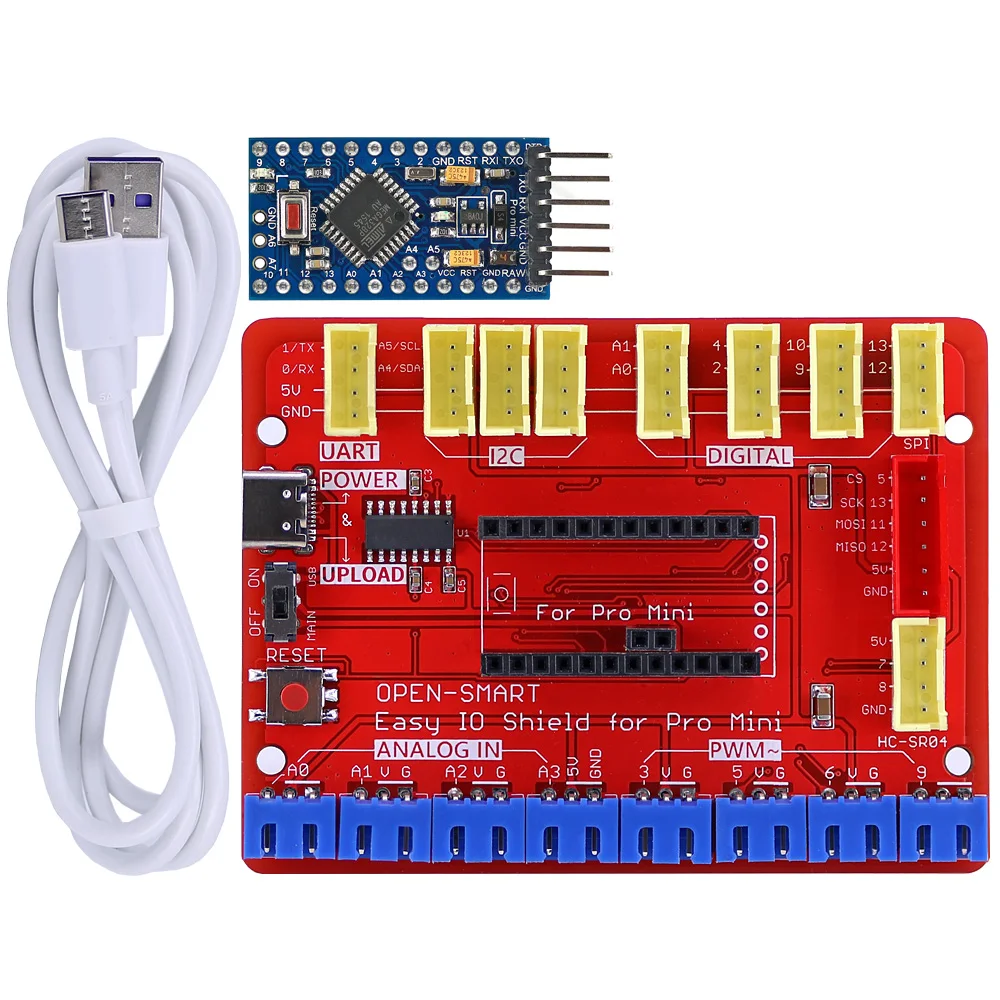

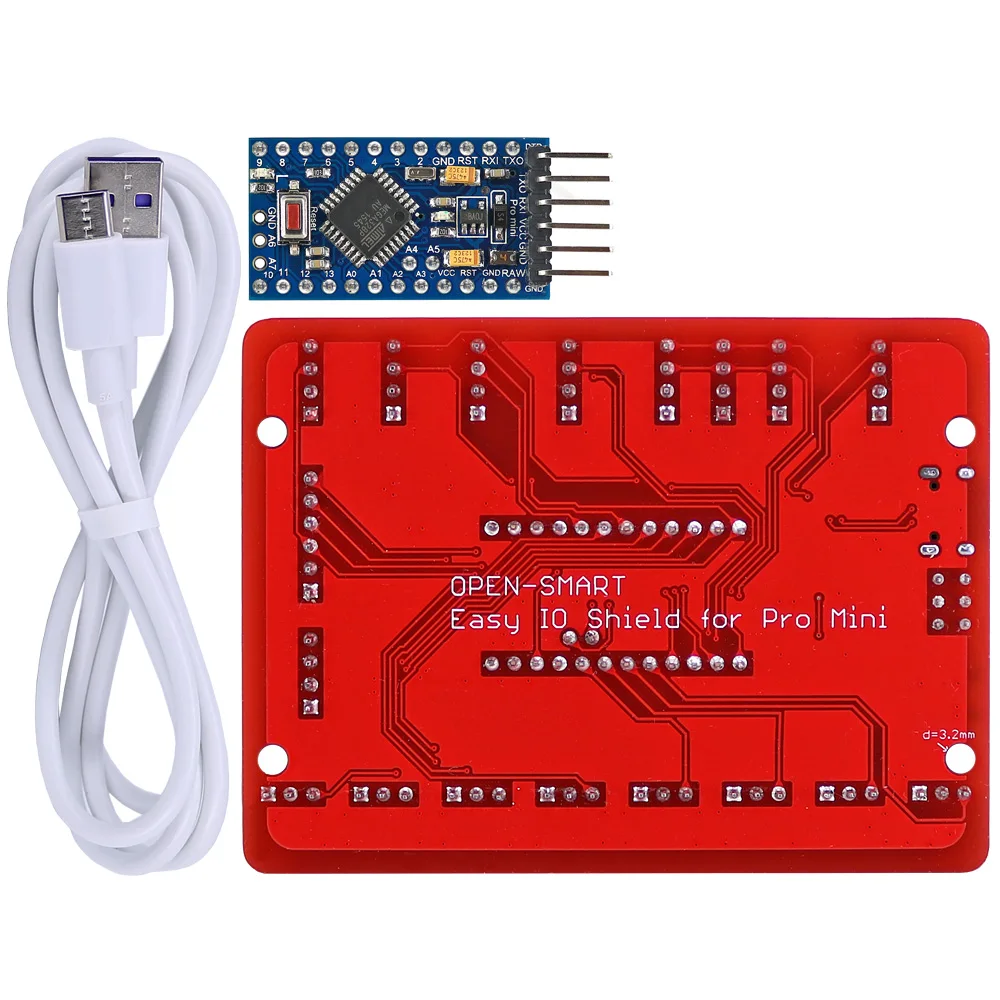

Part List (Schematics and program can be sent ,Please contact us)

1 x Easy IO Shield

1 x MCU board

1 x Cable (length is about 1m)
