Easy IO Shield Easy-plug Colorful XH 2.54mm Socket Sensor Expansion Board Shield Compatible for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Features

Note: If you want to place the bulk order that the stock is not enough, please contact with us.

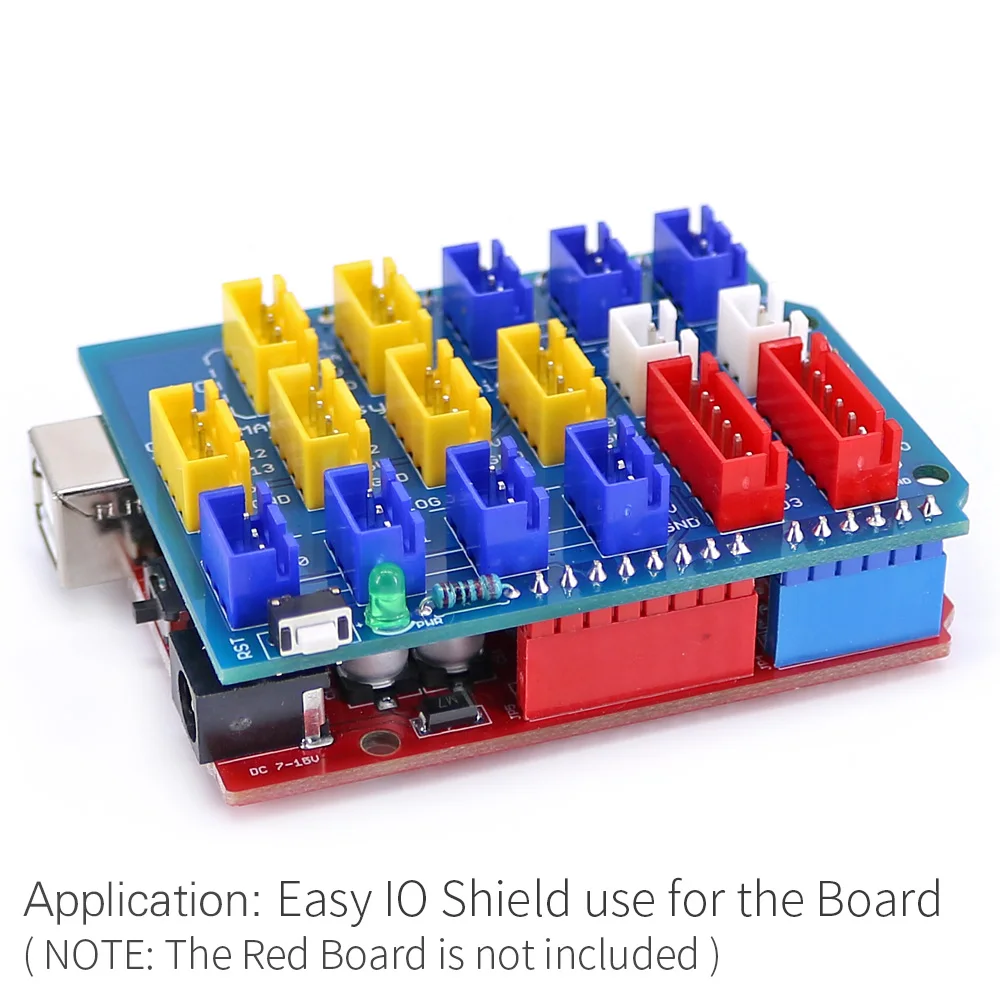

This Easy IO Expansion Shield is compatible for Arduino.

It is a connection bridge between the electronic building block module and the board.

It extends SPI port, UART, I2C, PWM and analog INPUT pins for the board, so DIY enthusiasts, interactive designers can quickly attach the modules to the board and accelerate project development progress.

Easy to plug OPEN-SMART products with XH socket to this shield and do not need to pay attention to the connection. So it is great for Training institutions and visual programming education.

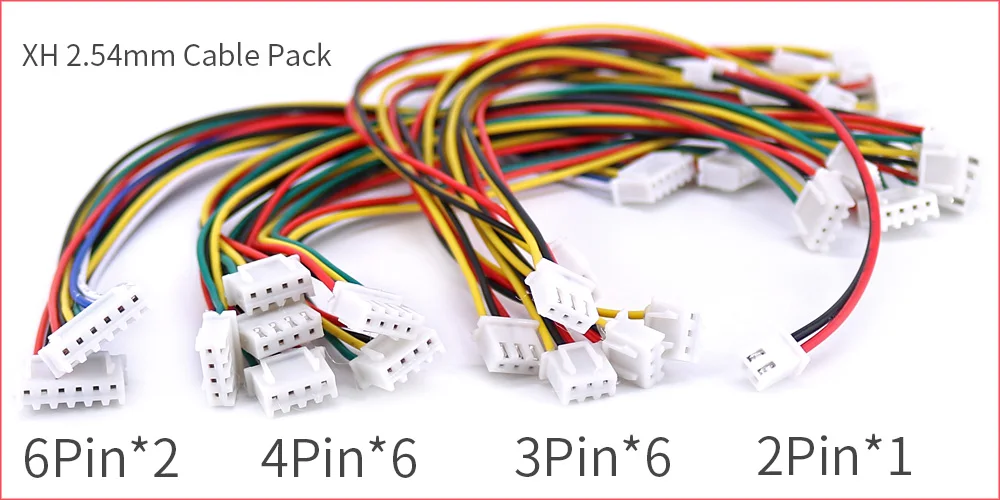

You can buy the XH 2.54mm Pitch Cable Pack for Easy Shield here (link):

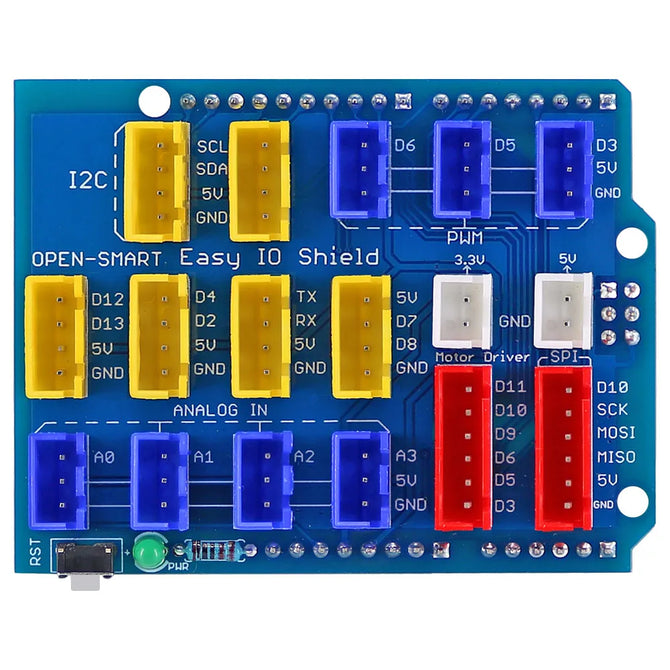

Features:

- Compatible for the R3 Board .

- All sockets onboard are XH 2.54mm pitch.

- I2C socket number: 2

- PWM socket number: 3(D6, D5, D3)

- 4PIN socket number: 4

- Power socket number: 2(one for 5V, the other 3.3V)

- Analog input socket number: 4(A0, A1, A2, A3)

- Motor Driver socket: for OPEN-SMART car chassis

- SPI socket number: 1

- Colorful socket: 2pin is white, 3pin is blue, 4pin is yellow, 6pin is red.

- On-board reset button, power indicator led.

Part List (Schematics and program can be sent , Please contact us)

1 x Module
