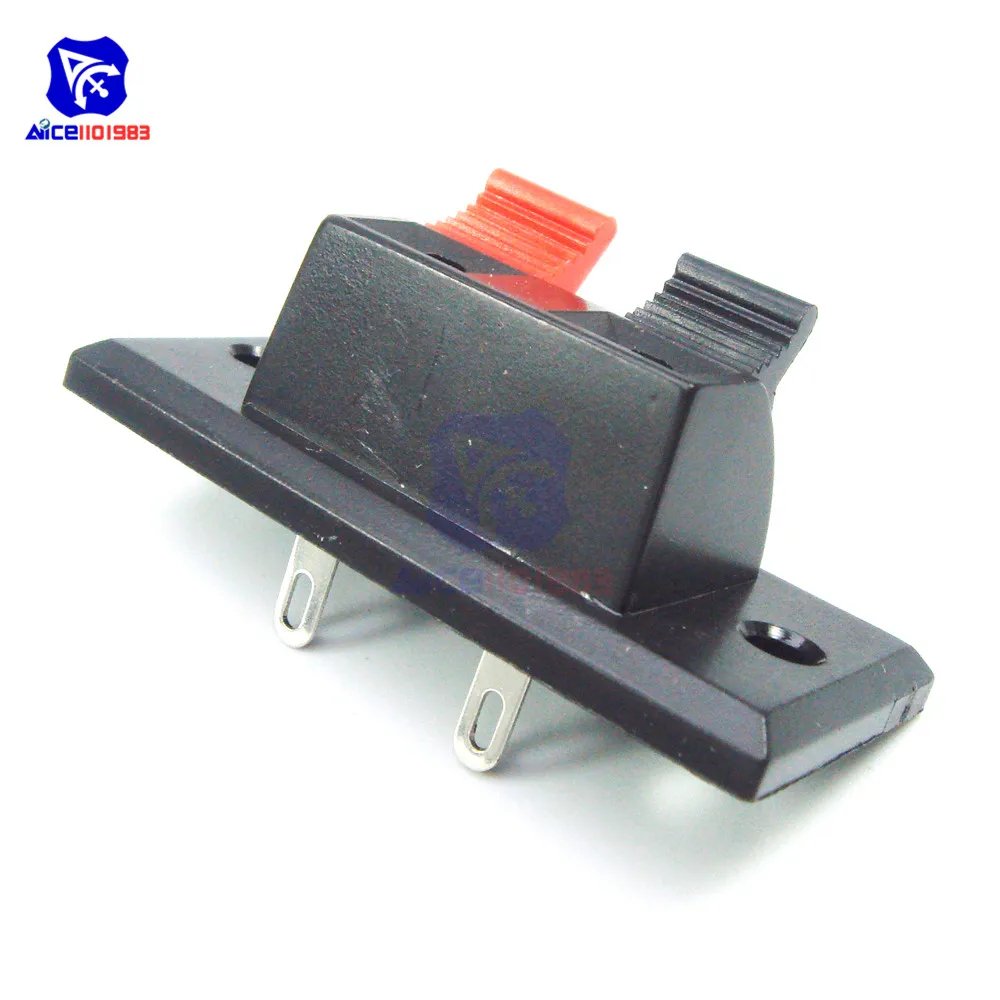

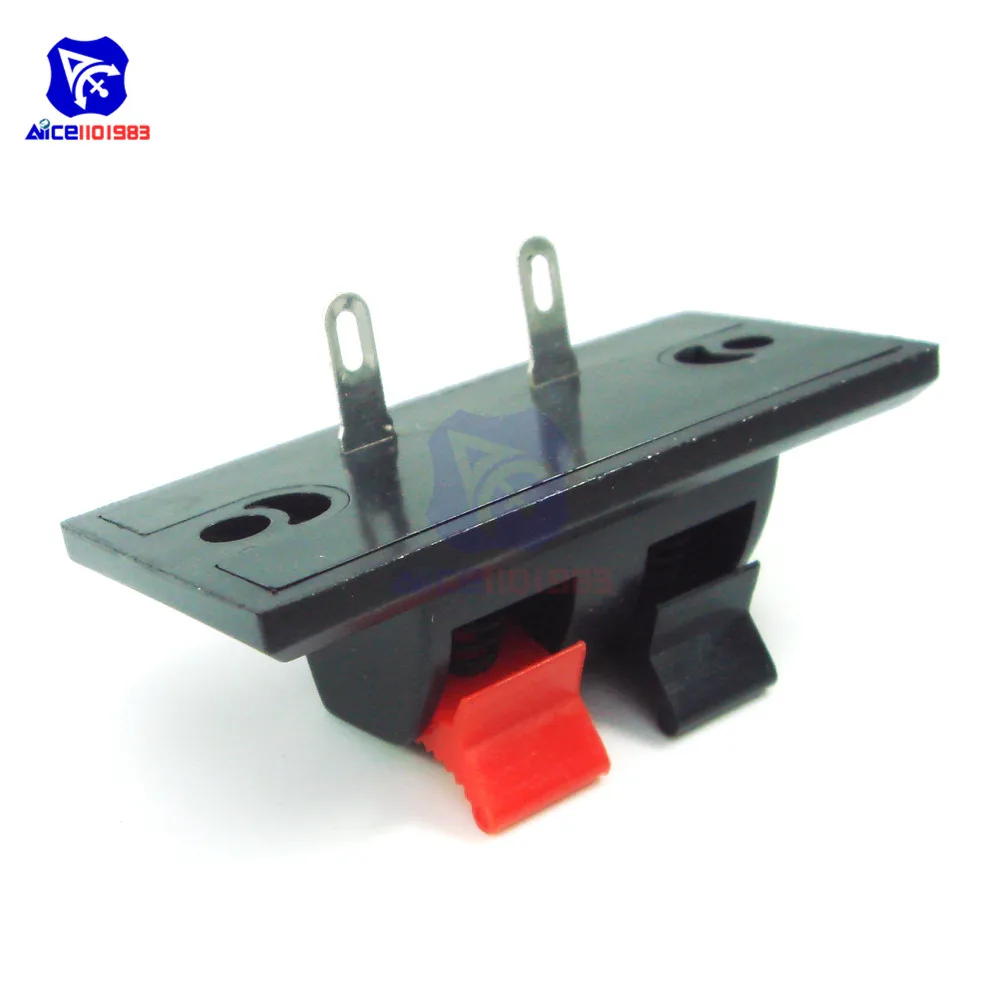

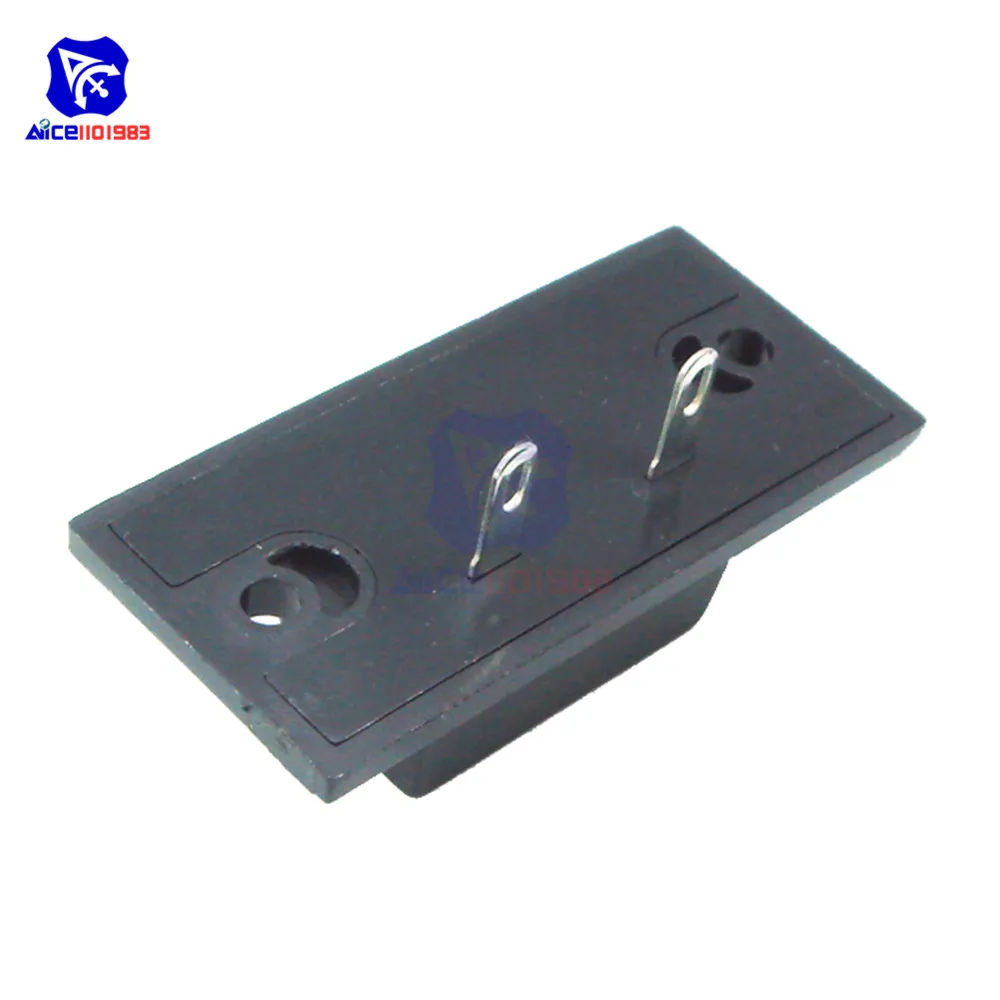

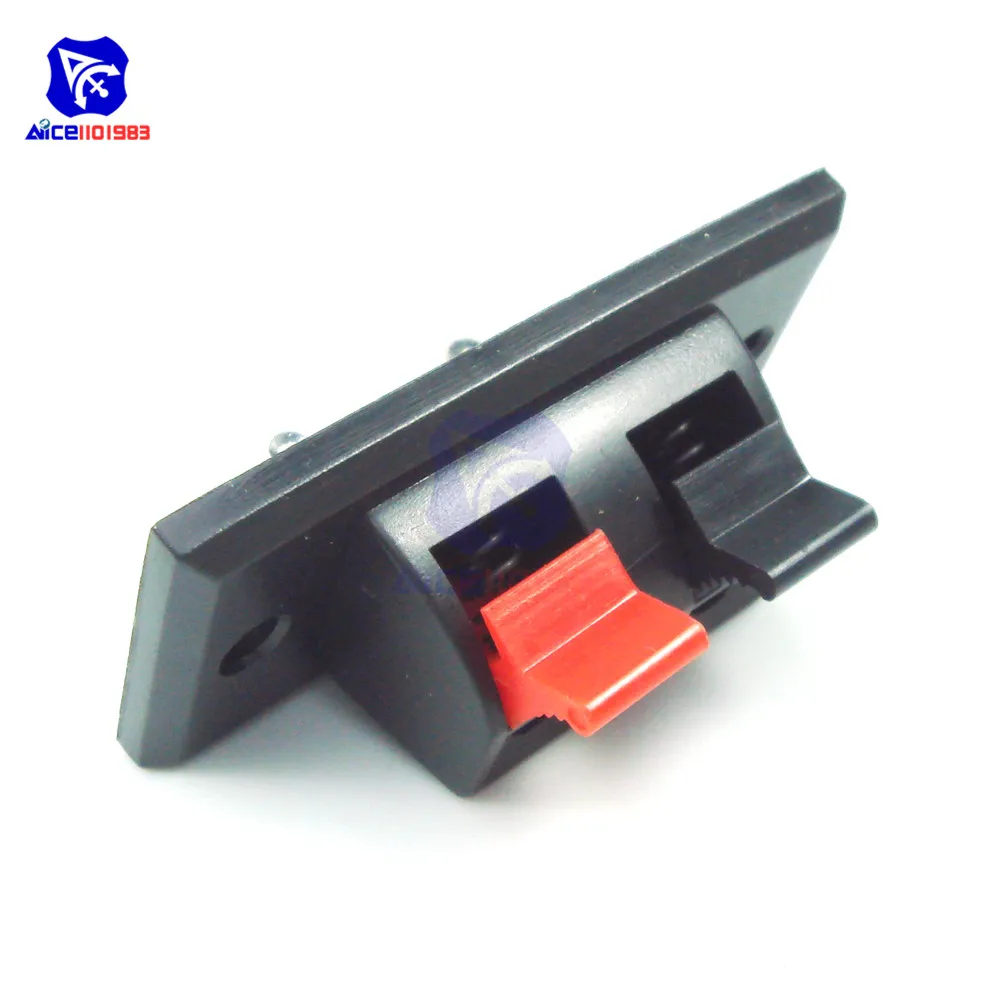

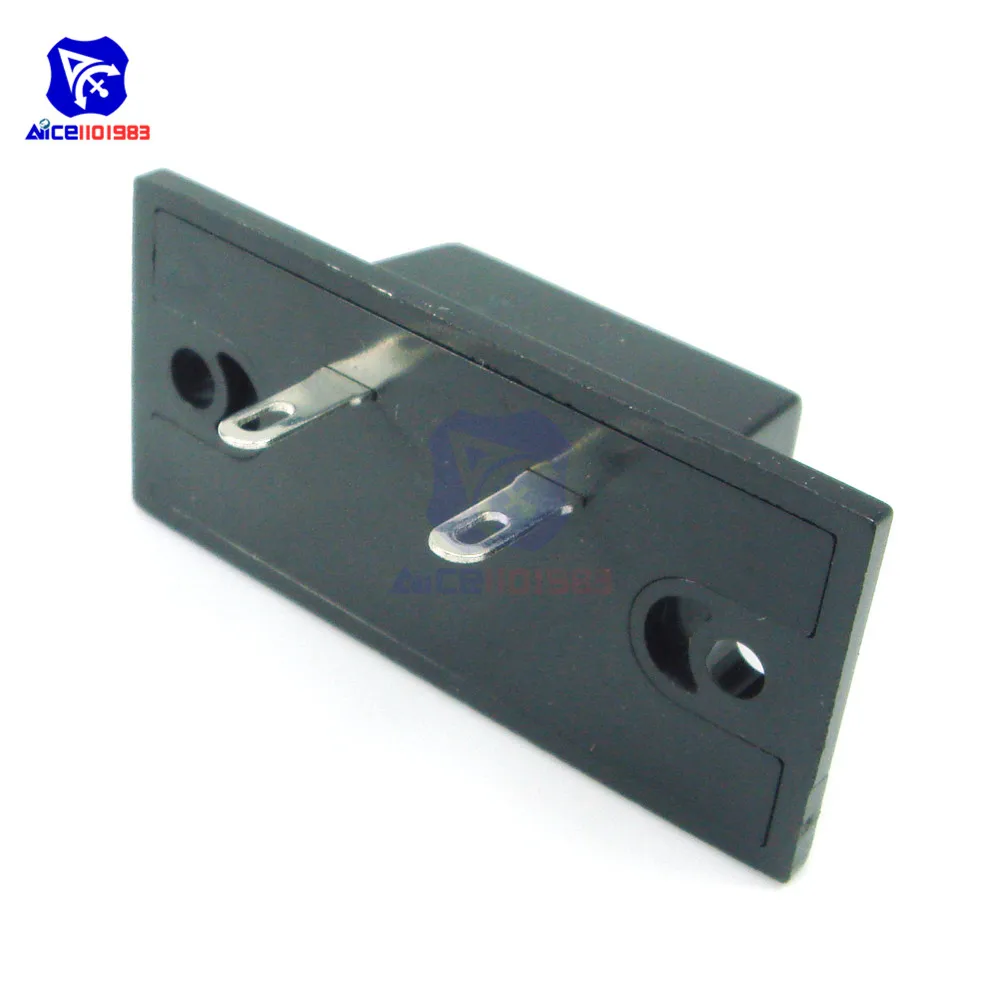

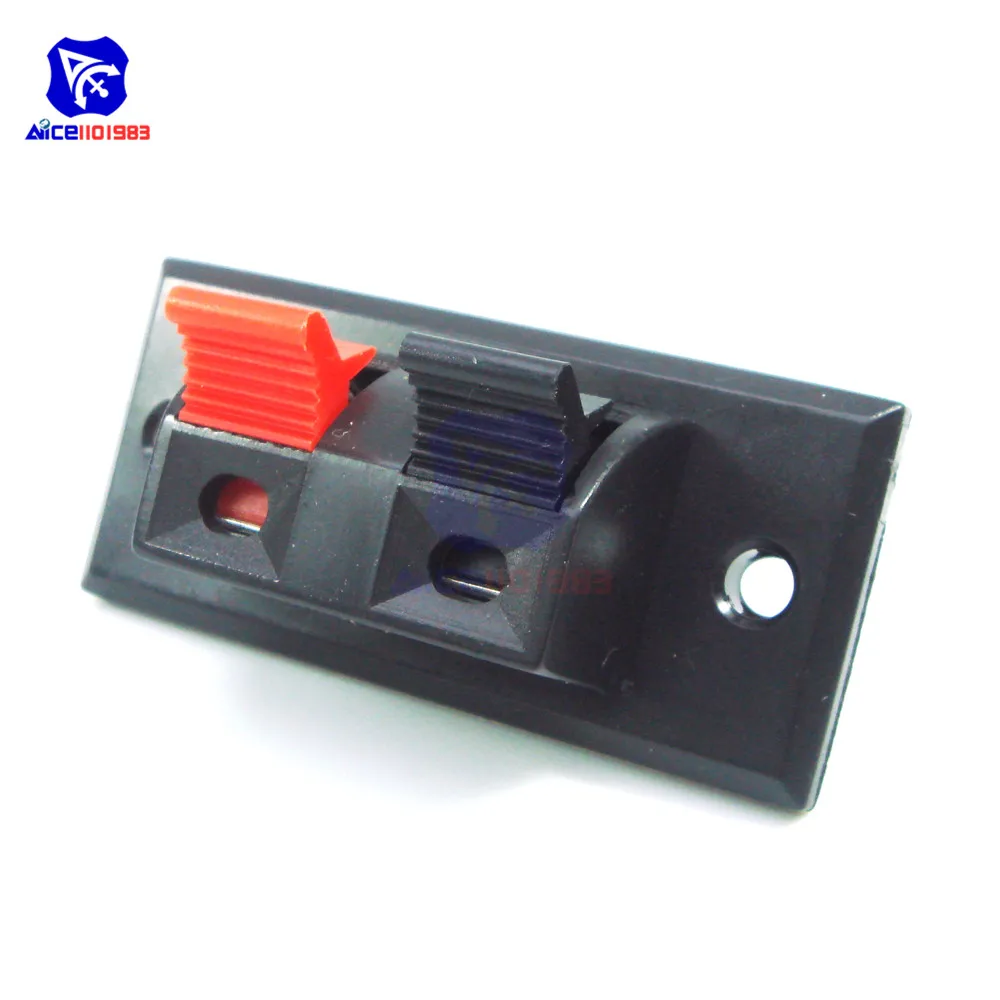

diymore 5PCS/Lot 2 Way Audio Speaker Terminal Spring Push Release Connector Speaker Terminal Strip Block
US$ 1.64
US$ 10.26
: In stock
: 63786
Feature: 2 pins, 2 positions, spring load design, push type speaker terminal board. This spring loaded terminals ensure a solid connection and make wire hookups a Put. Specilized design to...
Share:
Feature:
2 pins, 2 positions, spring load design, push type speaker terminal board.
This spring loaded terminals ensure a solid connection and make wire hookups a Put.
Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
Specification:
Product: 2 Terminal Speaker Connector Plate
Type: Push Release Type
RoHS: Yes
Rated Load: AC 50V 3A
Wire Range: AWG 24-16
Temperature: -40 to 55°C
Contact Resistance: ≤0.03 Ohm
Insulation Resistance: ≥100M Ohm
Withstand Voltage: AC 500V 1 Minute
Actuating Force: 1 Kgf
Color Polarity Coding: Red/Black
Life: >10000 Times
Pin Quantity: 2 pin
Mounting Hole Center Distance : 35mm/ 1.4inch
Position: 2 Way (1 row)
Mounting Hole Dia: 3mm/ 0.12inch
Size: 44*20*15mm
Package Included:
5 * 2 Way Speaker Terminal Connector
