diymoe DC-DC DC 4.5V-32V to DC 5-42V 6A Step Up Boost Converter Power Supply Module Non-isolated Short Circuit Protection

diymoe DC-DC DC 4.5V-32V to DC 5-42V 6A Step Up Boost Converter Power Supply Module Non-isolated Short Circuit Protection

US$ 2.90 US$ 3.86

: In stock

:

Specification: Module property:Non-isolated step up module Input voltage: 4.5V-32V Input current: 0A-6A Output voltage: 5V-42V Output current: 0A-6A Working temperature: -40 -85℃ Working frequency: 180KHz Transfer efficiency: 94%(max) Short circuit...
Add to wishlist
Share:

Specification:
Module property:Non-isolated step up module
Input voltage: 4.5V-32V
Input current: 0A-6A
Output voltage: 5V-42V
Output current: 0A-6A
Working temperature: -40 -85℃
Working frequency: 180KHz
Transfer efficiency: 94%(max)
Short circuit protection: Yes
Over temperature protection: Yes
Input reverse protection: NO

Note: Please make sure the voltage and the connector if fits for your standard!

Package Included:
1 x DC-DC DC 4.5V-32V to DC 5-42V 6A Step Up Boost Power Apply Module

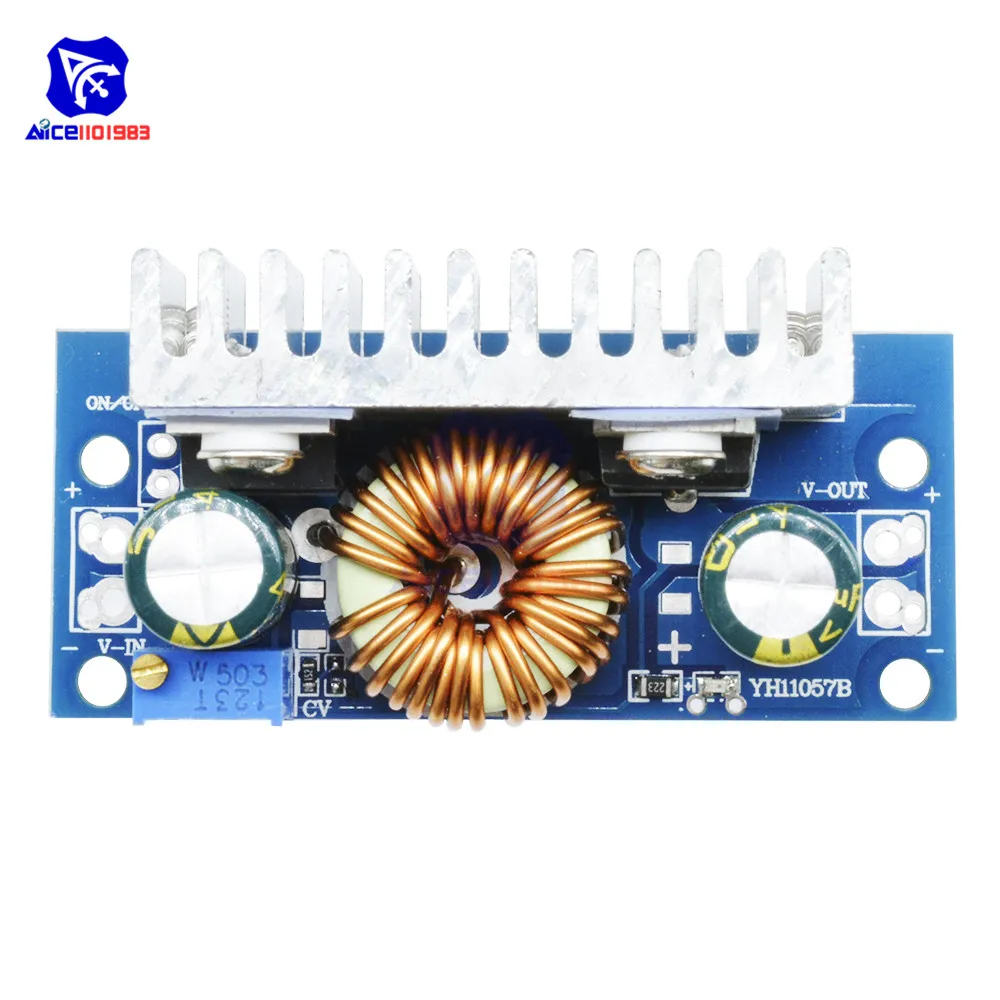

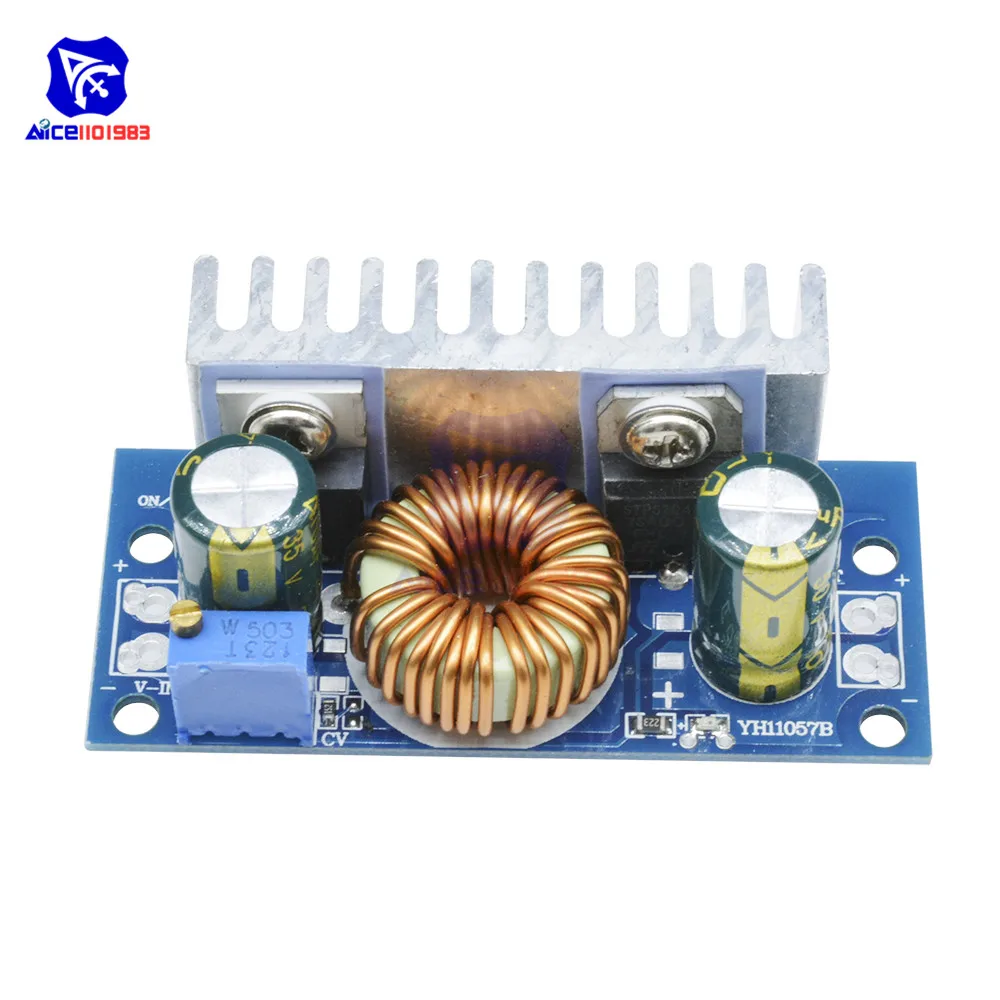

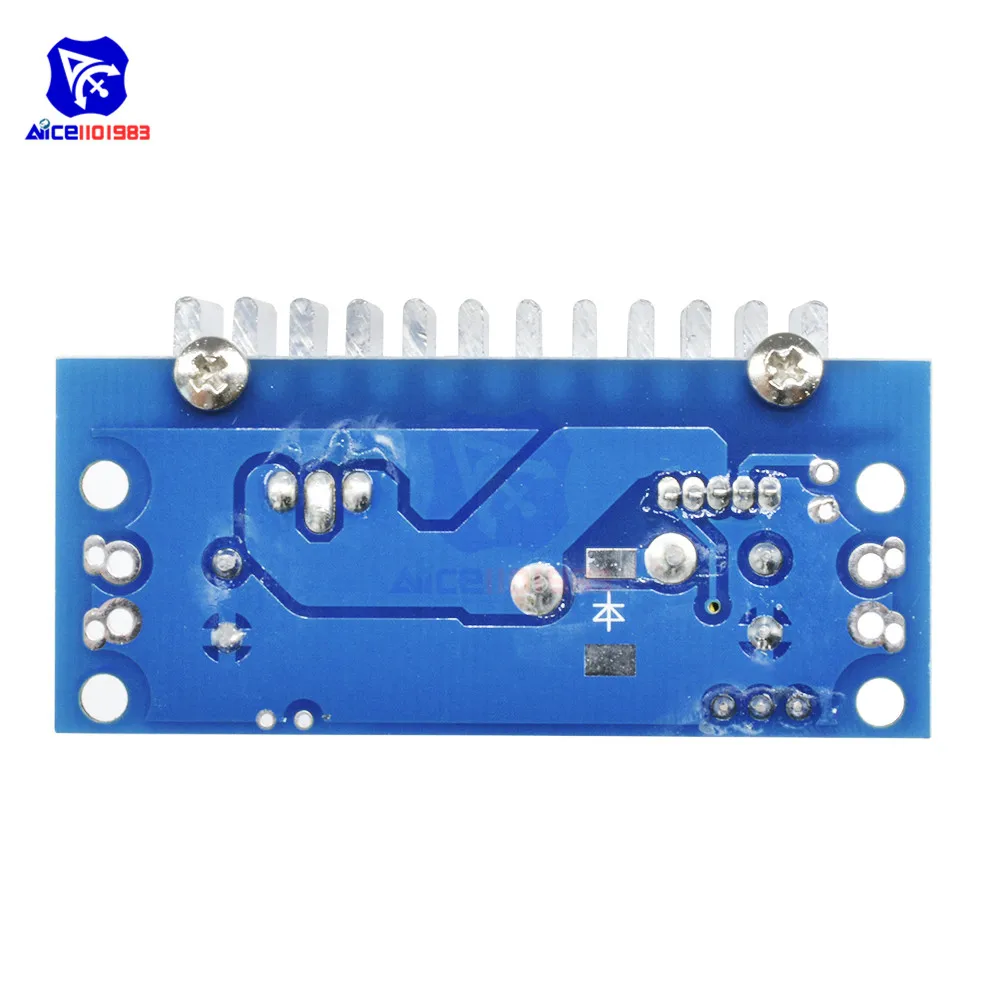

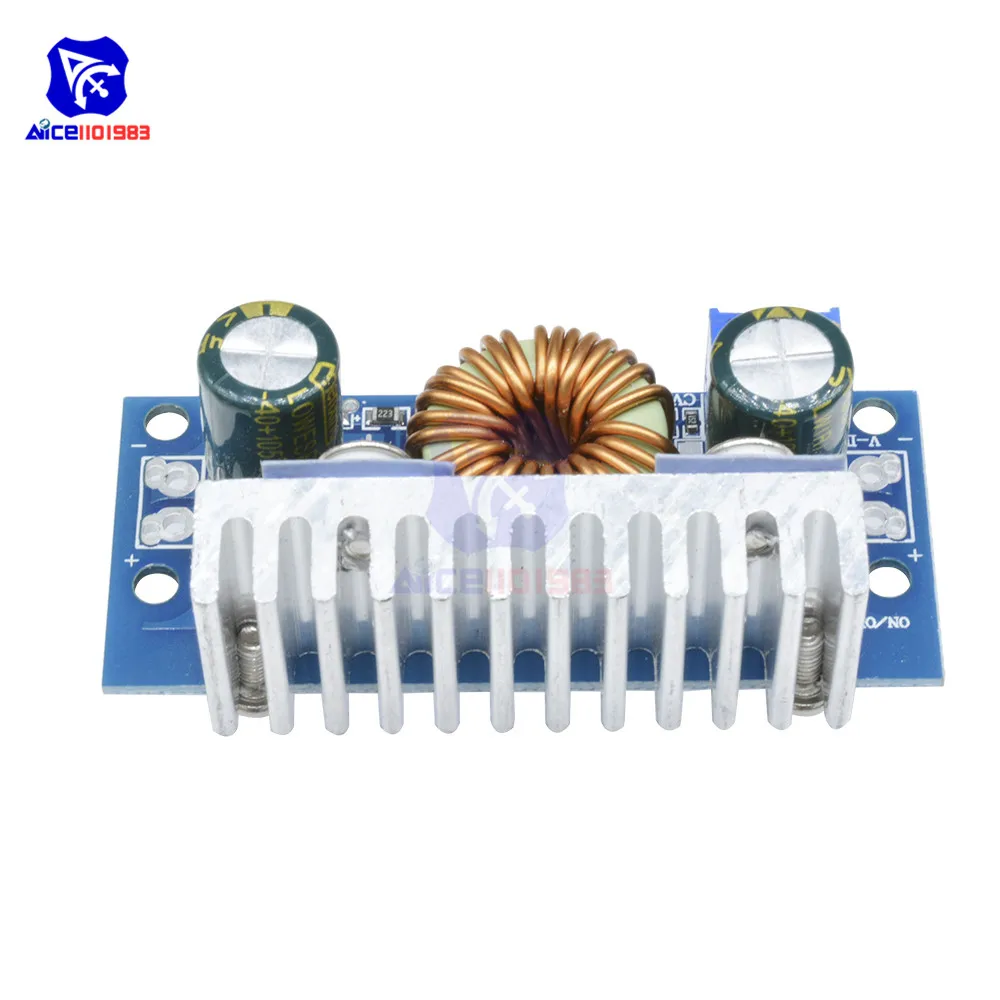

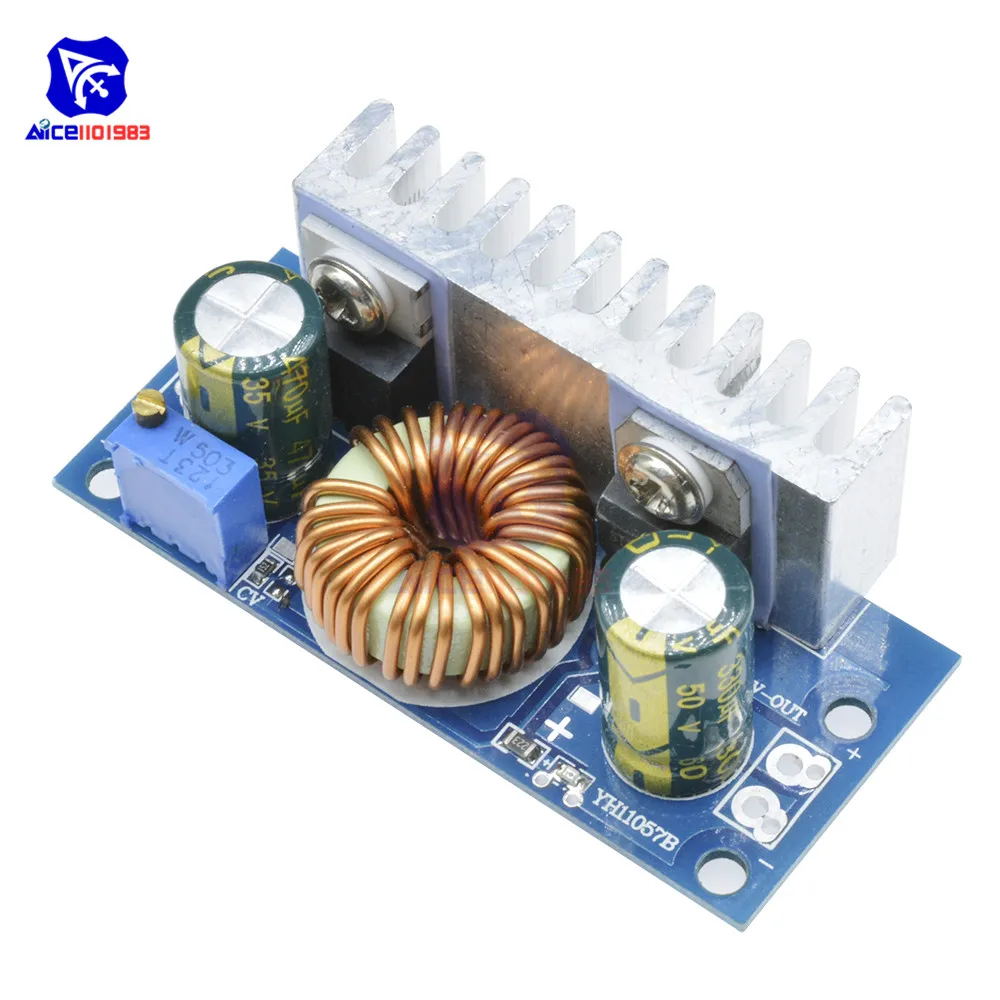

010444 (2)010444 (5)010444 (4)010444 (1)010444 (8)010444 (9)
