DIY Square 8x8x8 3D Light Electronic Cube Kit Blue Red LED Spectrum Board wholesale bulk price
US$ 20.99
: In stock
:
Compatibility To confirm that this part fits your vehicle, please enter your vehicle's details below. Year: Select Make: Select Model: Select Submodel: Select Trim: Select Engine: Select Clear All This...
Share:
Compatibility
To confirm that this part fits your vehicle, please enter your vehicle's details below.- Year:
Select
- Make:
Select
- Model:
Select
- Submodel:
Select
- Trim:
Select
- Engine:
Select
- Clear All
This part is compatible with 0 vehicle(s).
Show all compatible vehicles
This part is compatible with
1 vehicle(s) matching
This part is not compatible with
Recent searches
- Year
- Make
- Model
- Submodel
- Trim
- Engine
Installation instruction: Click here to open
Introduction:
Introduction:

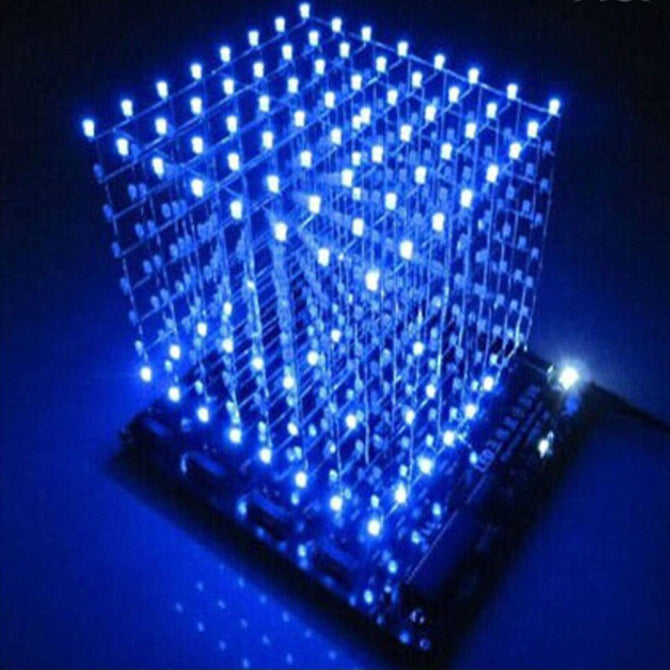

3D 8*8*8*8 LED cube is a DIY kit. User should weld and install it.
3D8 is the all-in-one a work of art, such as a C language, elect ronic technology. It is reality, economical and highly cost effective. It doesn't just use for decorate, but also can help you learn more professional knowledge about electronic. And you can achieve more and more gorgeous effect.
Update information: The component is changed to chip component. (Date of modification: June 17, 2020)
Specifications:
Power supply voltage: 4.5 - 5.5V
PCD size: approx.11.1*12.7cm
Weight: about 233g
Dynamic 3D effect:
1. Pyramid.
2. Rain graphic effect
3. Leaping graphics effect
4. Rotating graphic effect
5. Square move effect
6. Square light move effect
7. Lamp standard rollover effect
8. Square magnify and shrink effect
9. Reverse lamp
10. TriangIe three-dimensional graphics rotation effect
11. Article lamp running effect
12. PulI screen graphics effect
13. Fast and slow display
Notice:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight deviation for the measurement data.
3. Please allow 1-3cm error.
| NO. | Component | Number | Parameter | Quantity |
| 1 | PCB circuit board | 1 | ||
| 2 | Blue Light LED | 3mm | 512 | |
| 3 | 1*40P Round female pin | 2 | ||
| 4 | DIP-20 IC Socket | U1-U8 | 8 | |
| 5 | 74HC573 | U1-U8 | DIP-20 | 8 |
| 6 | USB to DC005 cable | 1 | ||
| 7 | DC005 Socket | 1 | ||
| 8 | DIP-1 SIC Socket | U9 | 1 | |
| 9 | ULN2803 | U9 | DIP-18 | 1 |
| 10 | DIP-40 IC Socket | U10 | 1 | |
| 11 | STC12C5A60S2(with code) | U10 | DIP-40 | 1 |
| 12 | A09-103 Resistor | J1 | 10K ohm | 1 |
| 13 | 8*8 Self-locking Push Switch | S1 | 1 | |
| 14 | Electrolytic Capacitor | C1,C4 | 10UF 25V | 2 |
| 15 | Crystal Oscillator | Y1 | 12Mhz | 1 |
| 16 | Ceramic Capacitor | C2, C3 | 22PF | 2 |
| 17 | Resistor | R3-R1O | 470 ohm | 8 |
| 18 | Resistor | R1, R2 | 4.7K ohm | 2 |
| 19 | Red LED | D1 | 3mm | |
| 20 | 0.8 single conductor | 1 |
