DIY Advanced Meter Tester Kit for Capacitance ESR Inductance Resistor NPN PNP Mosfet M168

US$ 17.88 US$ 21.25

Availability: In stock

SKU: 363459

Color custom10000 Model R001 Quantity 1 Piece Material FR4 English Manual / Spec No Other Features Measurement Range: Resistor: 0.5 ~ 50M ohm Capacitor: 30pF ~ 100mF Inductance: 0.01MH ~...

Add to wishlist

Tweet
Facebook
Google+
Linkedin
Pinterest

Color	custom10000
Model	R001
Quantity	1 Piece
Material	FR4
English Manual / Spec	No
Other Features	Measurement Range: Resistor: 0.5 ~ 50M ohm Capacitor: 30pF ~ 100mF Inductance: 0.01MH ~ 10H Working voltage: can use 6FF22 9V Battery, or DC 5.5V ~ 12V via DC socket Controller: ATmega168 (has been programmed) Standby current: 0.02uA Operating current: 25mA

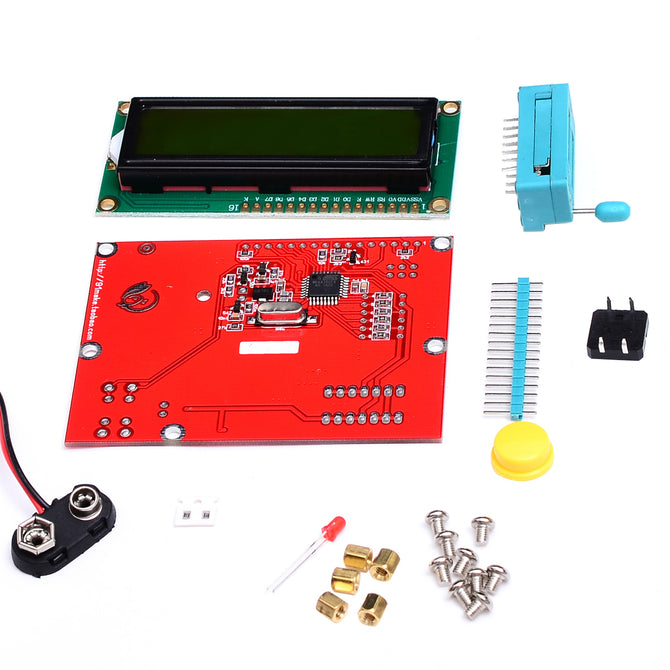

Packing List	1 x Main control board(without the battery, not soldered) 1 x 1602 LCD display 1 x Button cap 1 x Button 1 x Battery case 1 x 16 pin header 1 x Activity test base 1 x LED emitter 1 x Copper cylinder and screw Kit
