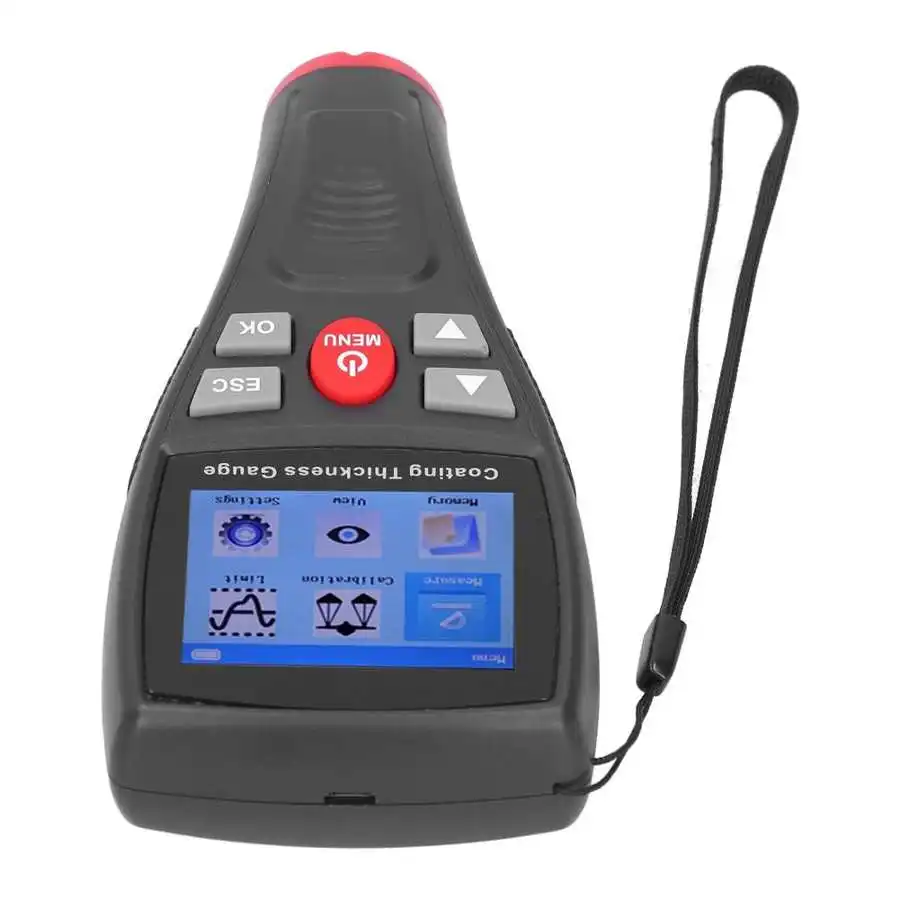

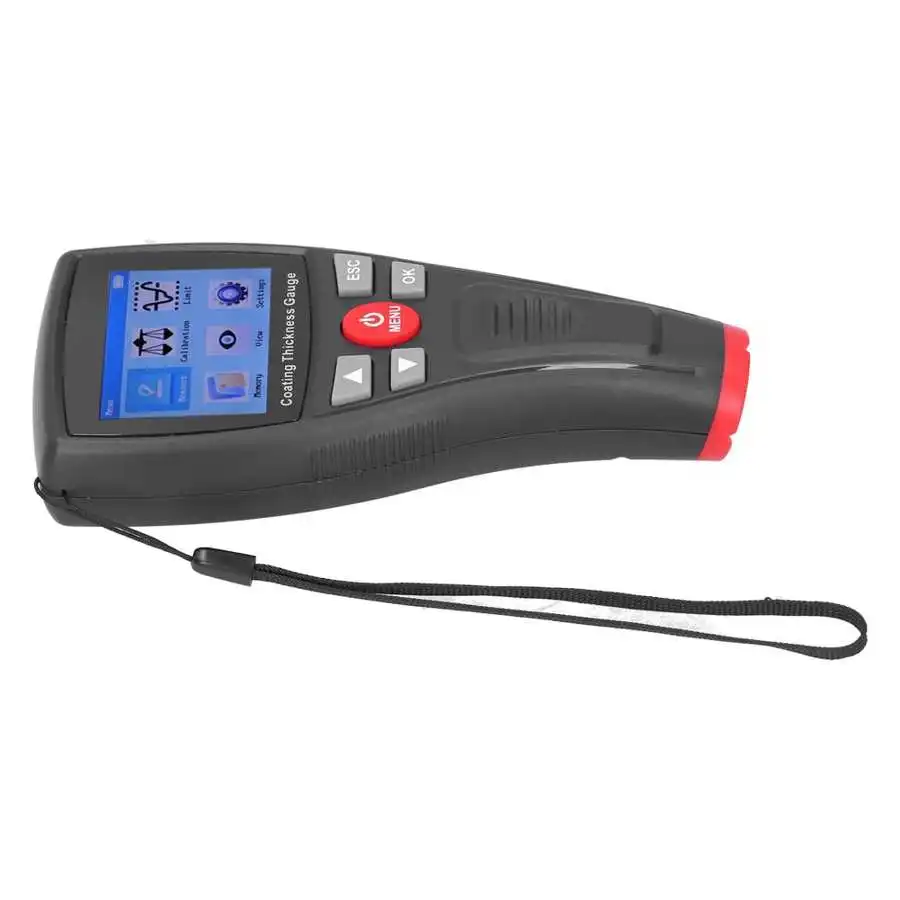

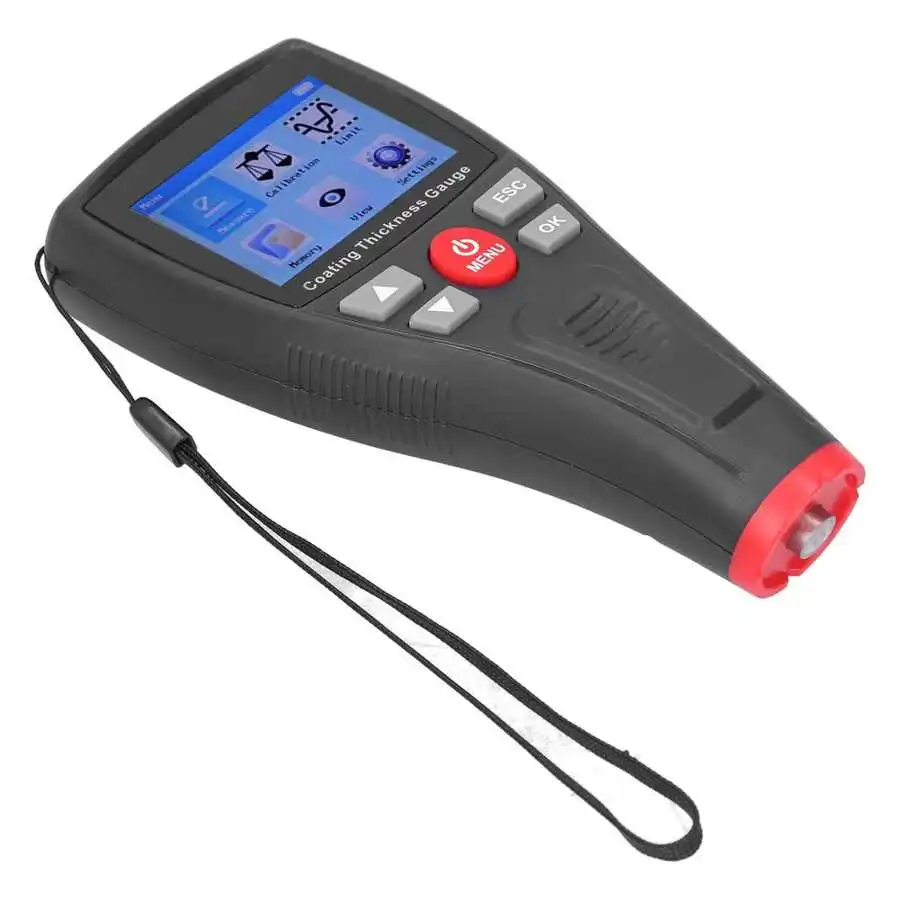

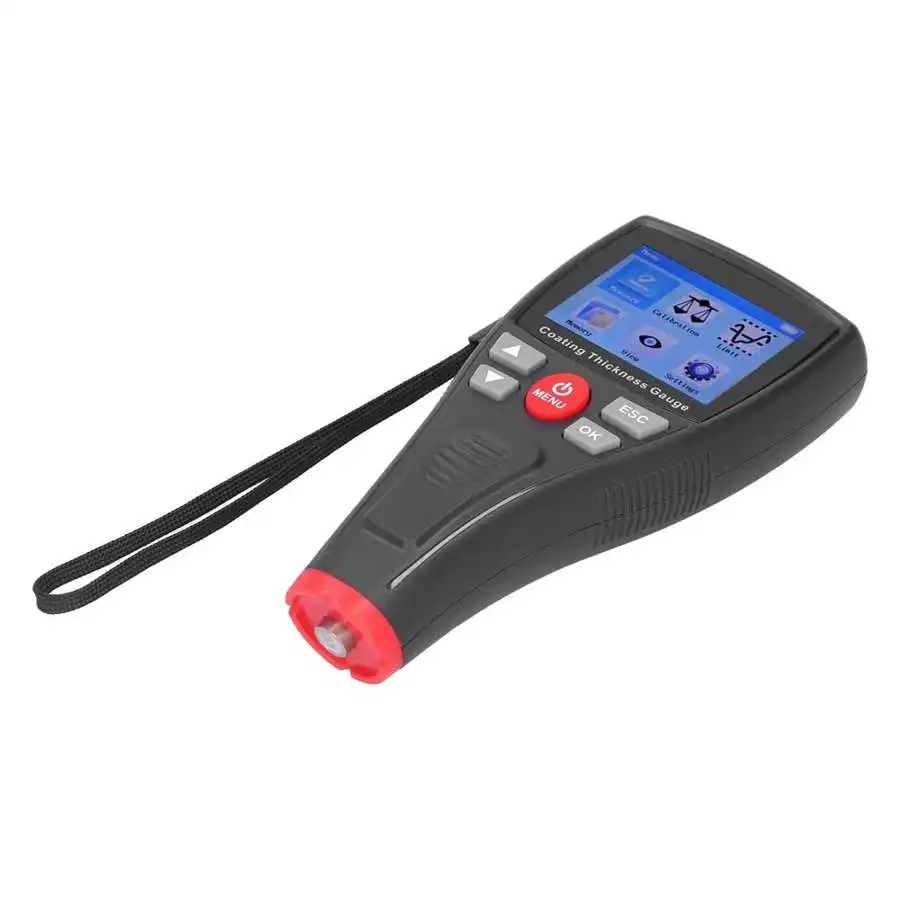

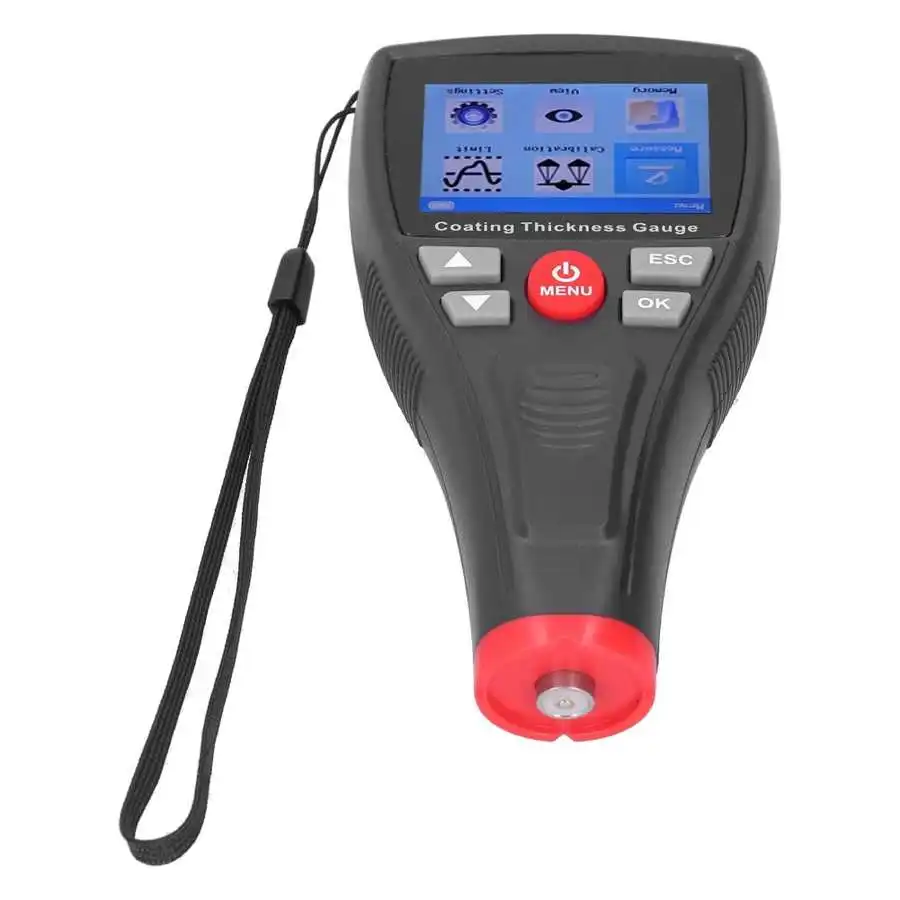

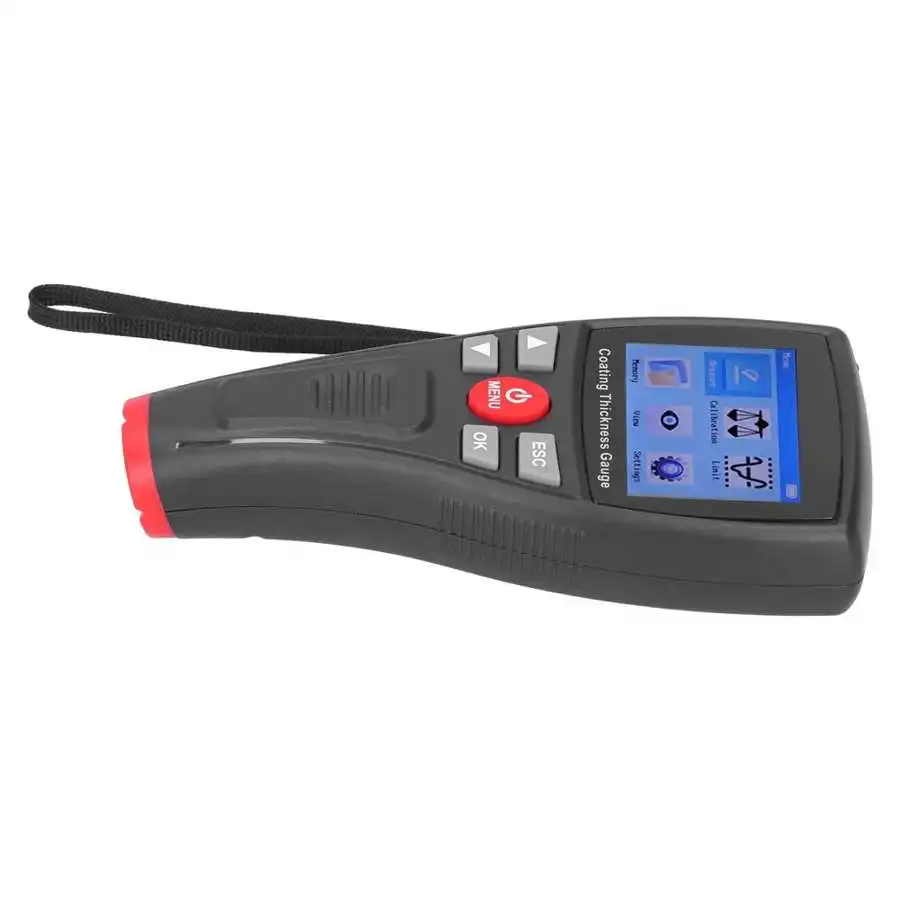

Digital Thickness Tester Screen Rotation WT2110 Thickness Meter 0‑1500um / 0‑59mil / 0‑1.5mm for US Plug AC100-240V

Feature:

1. Coating thickness gauge, with menu operation and color screen high‑definition display, easy to use.
2. Support screen rotation, charging protection, multi‑interface display, screen brightness selection.
3. The measuring range is 0‑1500um / 0‑59mil / 0‑1.5mm, high accuracy and long service life.
4. 3 effective calibration modes: basic, offset, zeroing calibration, 2 measurement methods: single measurement, continuous measurement.
5. Measure thickness of non‑magnetic coatings on of magnetic metal substrates and non‑metallic coatings on non‑magnetic metal substrates.

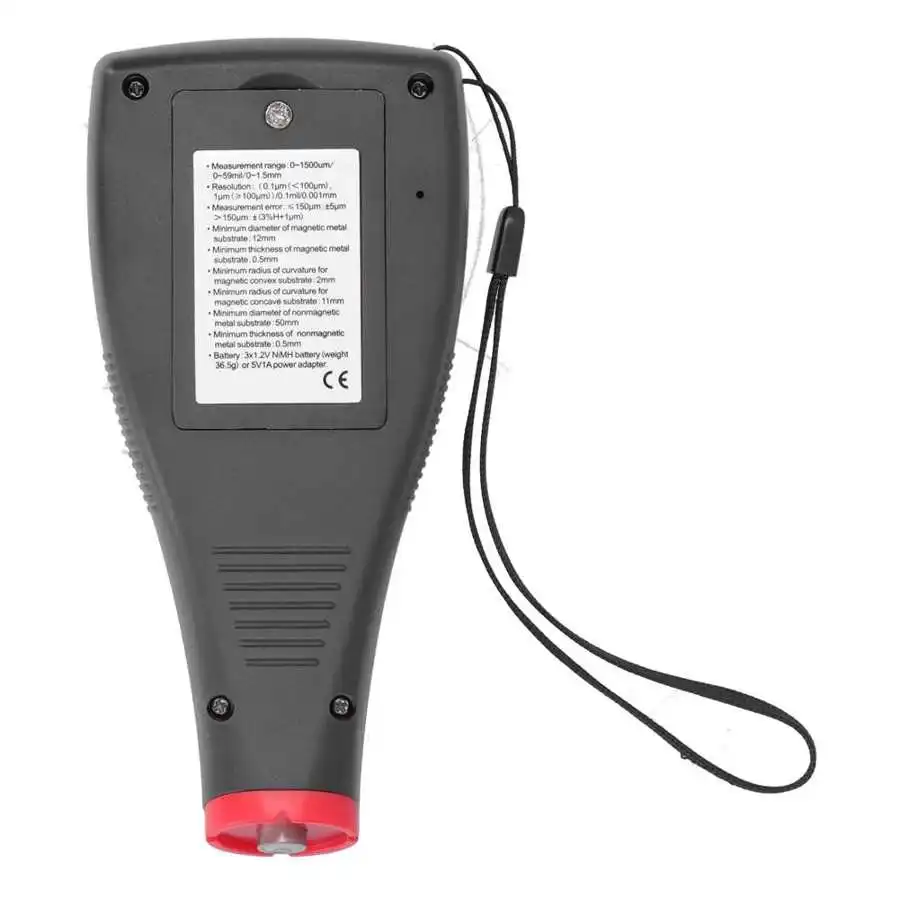

Specification:

Item Type: Coating Thickness Gauge
Material: ABS
Application: Thickness measurement of iron and aluminum base coating
Measuring Range: 0-1500um / 0-59mil / 0-1.5mm
Battery Type: 3x1.2V AAA Battery (Battery Not Included)
Power Adapter: 5V 1A
Resolution: (0.1pm (<100 Um), 1um (= 100um)) /0.1mil /0.001mm
Measurement Error:
≤150um: ±5um
> 150um: ±(3%H + 1um)
Minimum Diameter of Magnetic Metal Substrate: 12mm / 0.47in
Minimum Thickness of Magnetic Metal Substrate: 0.5mm / 0.02in
Minimum Curvature of Magnetic Convex Substrate: 2mm / 0.08in
Minimum Radius of Curvature of Magnetic Concave Substrate: 11mm / 0.43in

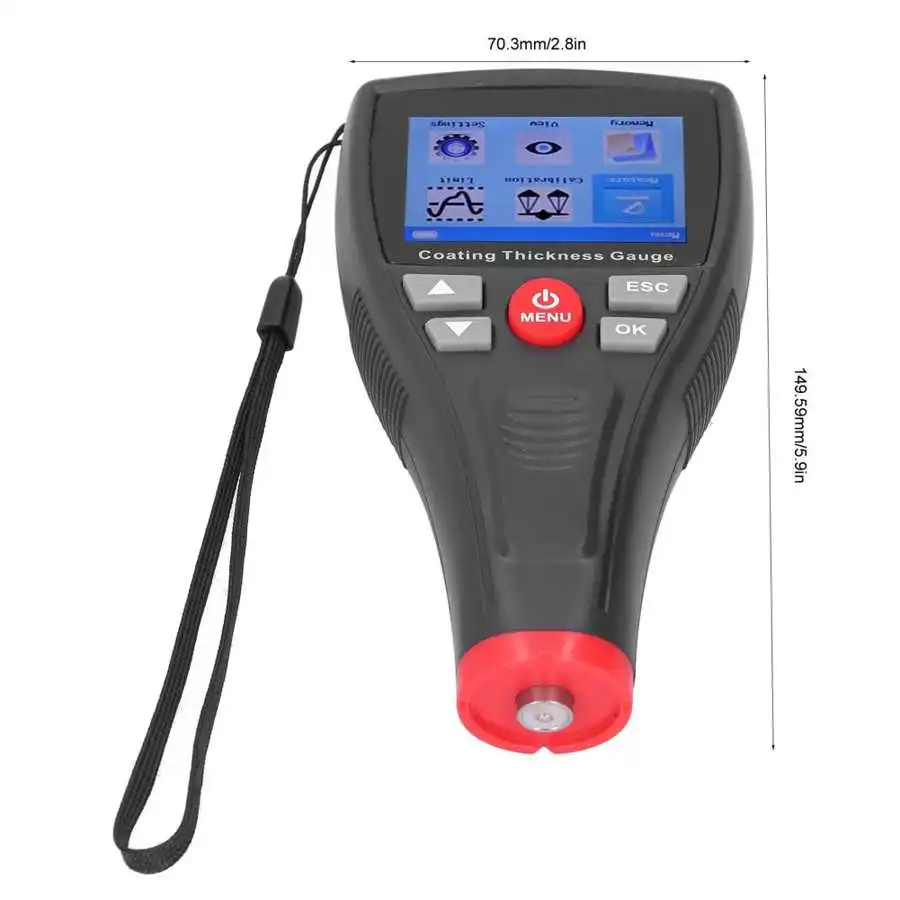

Size: Approx. 149.59x70.3mm / 5.9x2.8in

How to Use:
Open the back cover and put in the battery (not included) or directly connect to the power source, press and hold the power button to turn on, and aim the test part at the bottom of the thickness gauge at the object to be tested for use.
Up button: switch measurement mode/add calibration data.
Down button: switch the measurement unit and reduce the calibration data, the esc key can return, the ok key can confirm, and the power key can perform on/off operations.

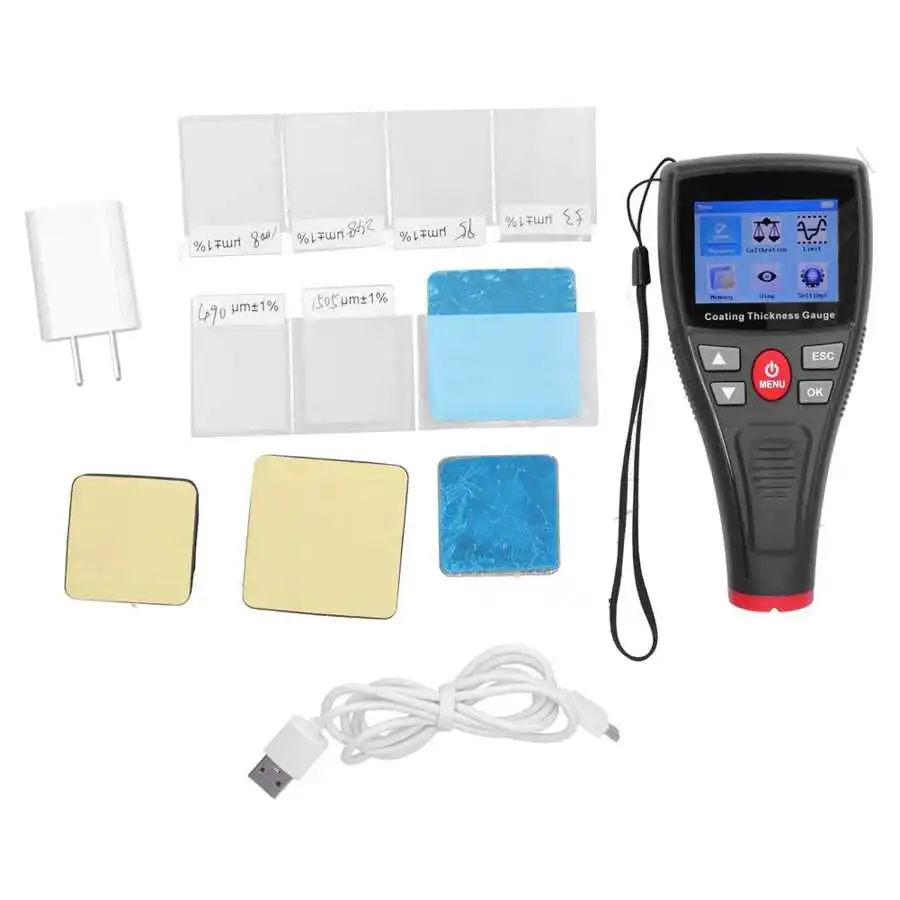

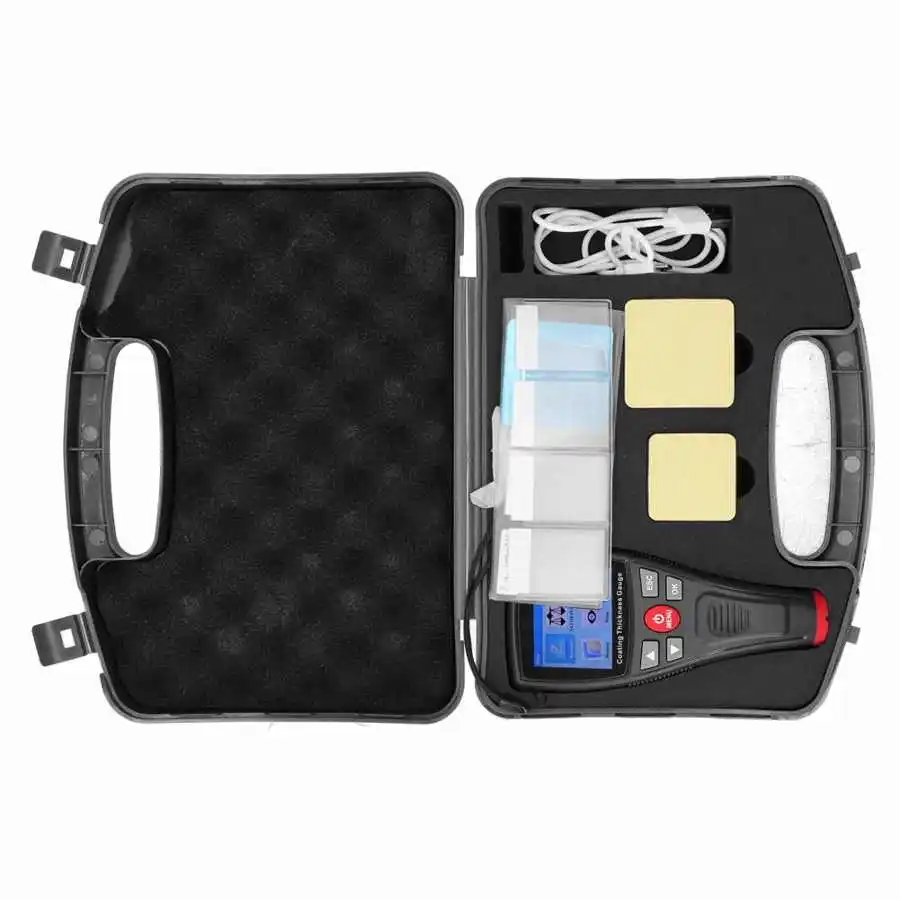

Package List:

1 x Coating Thickness Gauge (Battery Not Included)

1 x USB Cable

1 x Adapter

2 x Iron Substrate

2 x Base Plate

6 x Calibration Plate

1 x Carrying Case

1 x Manual

Note:

1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.

2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
