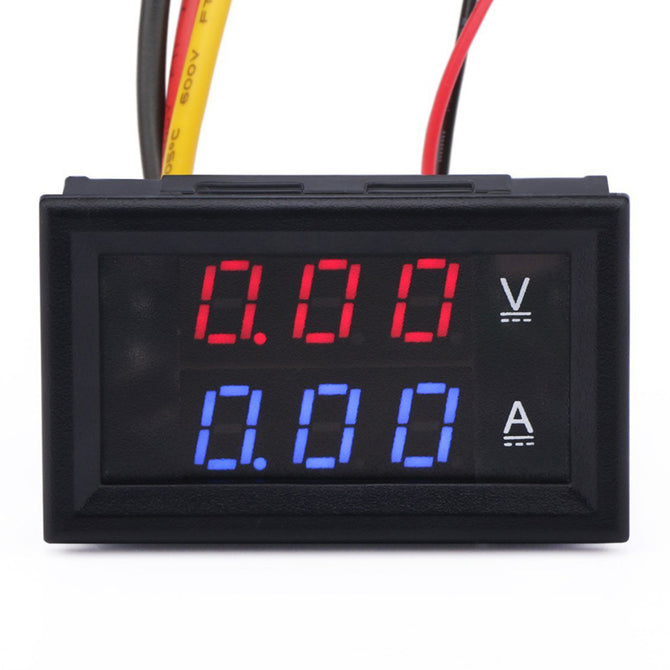

DC0-100V/10A LED DC Dual Display Digital Current Voltmeter w/ Red and Blue Display

DC0-100V/10A LED DC Dual Display Digital Current Voltmeter w/ Red and Blue Display

US$ 6.23 US$ 10.64

: In stock

: 514651

Features: Operating voltage:DC 4.5 ~ 30V Measure voltage: DC 0 ~ 100V Minimum resolution(V): 0.1V Measure current :2A (measure directly,built-in shunt) Minimum resolution(A): 0.01A Operating current: <20mA Display: three 0.28" LED digital tube Display color: Red and Blue...
Features:
Operating voltage:DC 4.5 ~ 30V
Measure voltage: DC 0 ~ 100V
Minimum resolution(V): 0.1V
Measure current :2A (measure directly,built-in shunt)
Minimum resolution(A): 0.01A
Operating current: <20mA
Display: three 0.28" LED digital tube
Display color: Red and Blue (two-color display)
Dimensions: 48 x 29 x 21mm
Mounting cutout: 45.5 x 26.5mm
Refresh rate: about 500mS / times
Measure accuracy: 1% (?1 digit)
Operating temperature: -10 to 65?c
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 to 106 kPa
Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Wiring:
Black line (thin): vacant or buck circuit (module) negative
Red line (thin): power supply+
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input+
(Please refer to the wiring diagrams for more details)

Notice:
The voltage between the thin red and thin black lines must be within DC 4.5-30V
The ammeter can only be connected to the negative of the device under test
10A below ammeter (include 10A), built-in shunt, does not require external shunt
When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits
If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing



General
Model 10A+
Quantity 1 set
Material Aluminum alloy
Specification
Screen Type OLED
Working Voltage DC 0-100V
Working Current < 20mA
Download Link N/A
Dimensions & Weight
Dimensions 1.89 in x 1.14 in x 0.87 in (4.8 cm x 2.9 cm x 2.2 cm)
Weight 1.59 oz (45 g)
Packing List
1 x Voltmeter
2 x Wirings
