DC linear electric actuator DC24V 50mm 100MM 150mm 200mm stroke micro lock actuator motor 2500N telescopic mini linear actuator
US$ 45.70
US$ 54.00
: In stock
:
DC linear electric actuator DC24V 50mm 100MM 150mm 200mm stroke micro lock actuator motor 2500N telescopic mini linear actuator Brazilian Customers: Free customs clearance service for goods above 45KG...
Share:
DC linear electric actuator DC24V 50mm 100MM 150mm 200mm stroke micro lock actuator motor 2500N telescopic mini linear actuator
Brazilian Customers:
Free customs clearance service for goods above 45KG
And provide delivery to the hand.
Electric Linear Actuator
TAIXI Electric focuses on the production of Linear Actuator And Low Voltage electrical etc.
Material: aluminum alloy
Rated power:60W
Permanent magnet DC motor drive;Voltage:12V 24V 36V 48V
Standard protection grade:IP54
Application:Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....
|
Voltage
|
DC12V DC24V (36V 48V CUSTOMIZED)
|
|||||||||
|
No-load speed(mm/s)
|
5
|
10
|
13
|
15
|
20
|
26
|
30
|
40
|
52
|
88
|
|
Dynamic load push(N)
|
2500
|
1200
|
1200
|
800
|
600
|
600
|
400
|
300
|
300
|
200
|
| Dynamic load pull(N) |
2500
|
1200
|
1200
|
800
|
600
|
600
|
400
|
300
|
300
|
200
|
|
Static bearing capacity (N)
|
2500
|
1200
|
1200
|
800
|
600
|
600
|
400
|
300
|
300
|
200
|
|
Stroke length(mm)
|
30MM-1600MM
|
|||||||||
|
Operating temperature
|
0°C~+40C
|
|||||||||
|
Lmit switches
|
BUILT-IN
|
|||||||||
|
Operating Frequency
|
10％ continuous work for two minutes
|
|||||||||
|
Inner Tube
|
Aluminum tube
|
|||||||||
|
Screw type
|
Type T
|
|||||||||
|
Optional features
|
Hall sensor
|
|||||||||
|

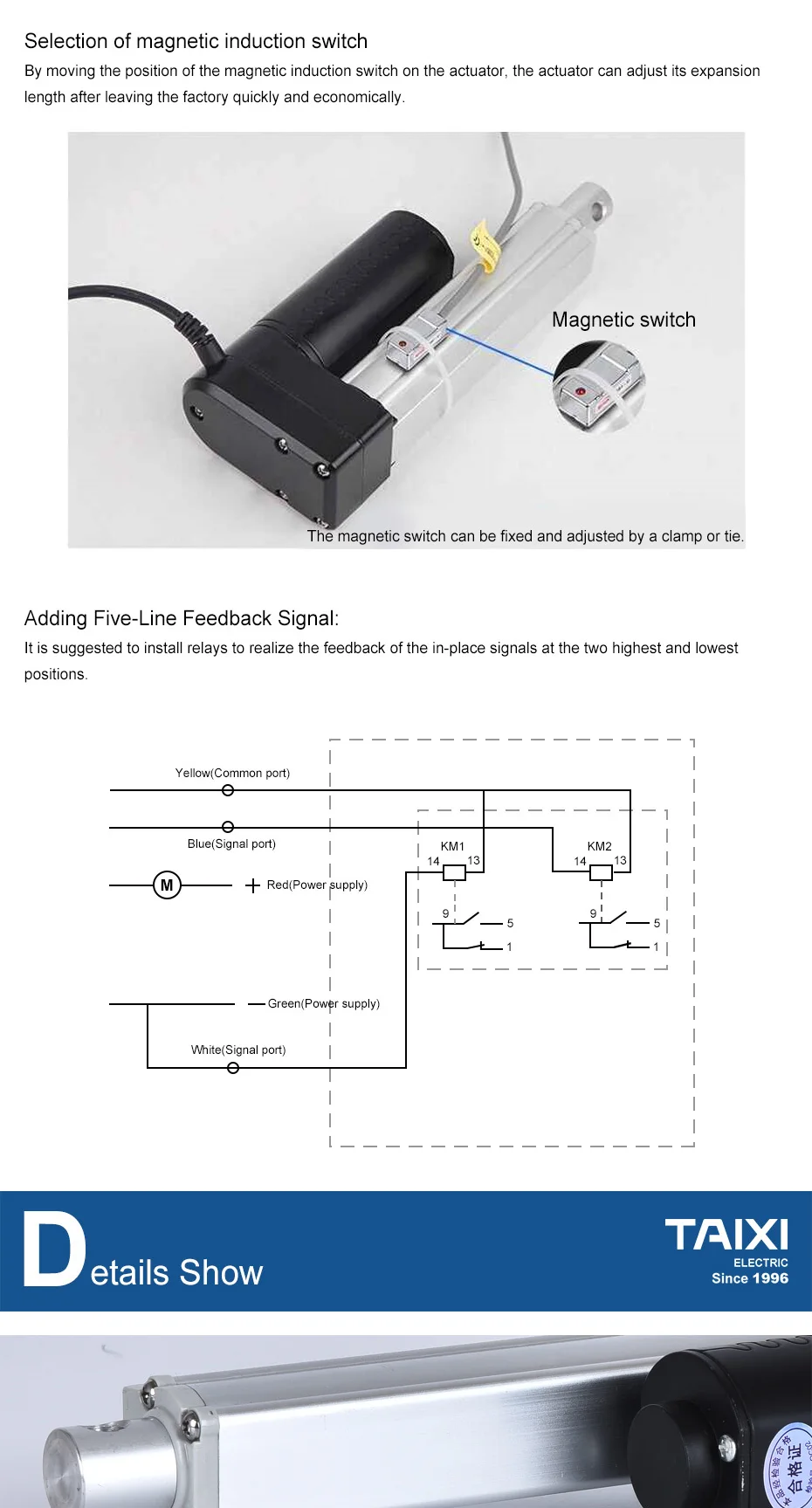

Magnetic switch
|
||||||||||
|
Switch signal feedback
|
||||||||||
|
Upper computer control
|
||||||||||
