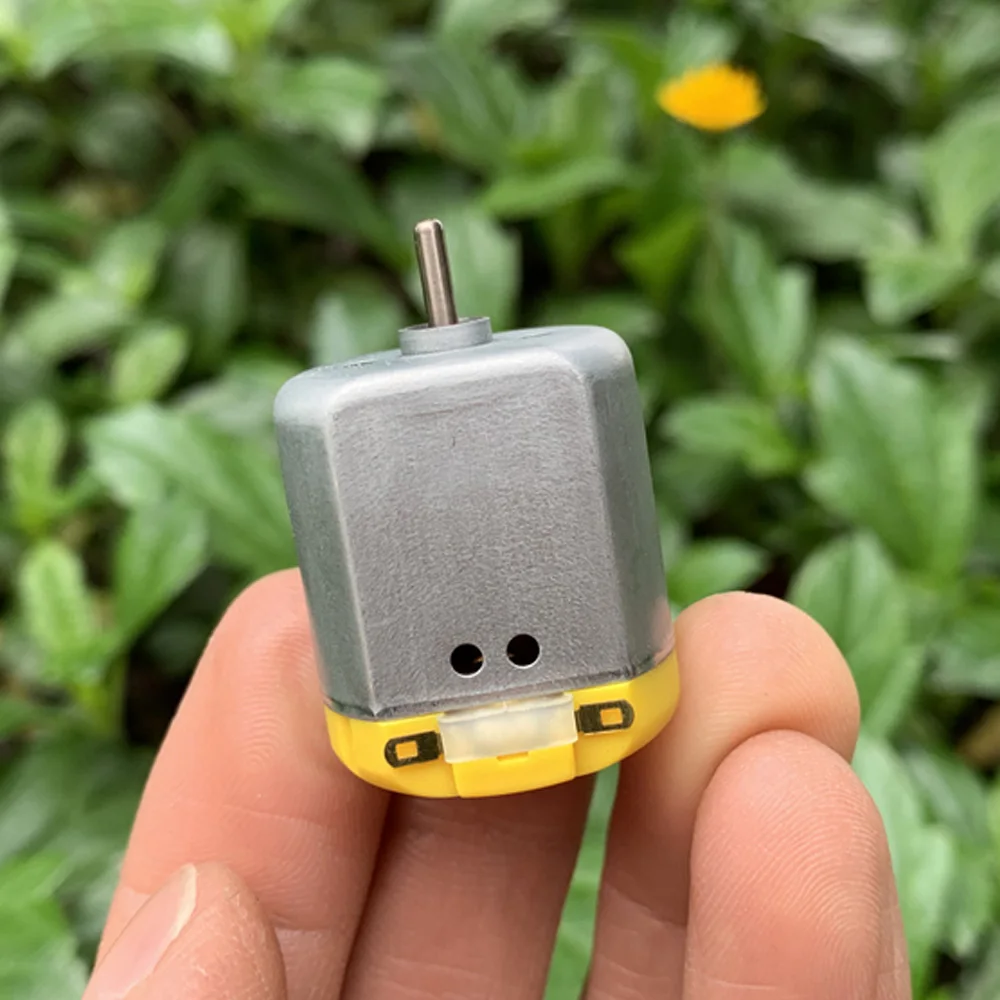

DC 3V 3.7V 5V 6V Micro Mini 260 Motor 260-2670 Precious Metal Brush Motor for DIY Small USB Fan RC Car Electric Toy Boat Model

DC 3V 3.7V 5V 6V Micro Mini 260 Motor 260-2670 Precious Metal Brush Motor for DIY Small USB Fan RC Car Electric Toy Boat Model

US$ 1.94 US$ 3.56

Availability: In stock

SKU: 59778

Specification Model:FN-260CN-2670-38 Output shaft diameter: 2.0 MM Output shaft length: 8.3MM Weight:30g Voltage Range:3.0V-6.0V Test data Voltage: 3.0V No-load Speed: 11500RPM No-load Current: 300mA ---------------------------- Voltage: 3.7V No-load Speed: 14000RPM...

Add to wishlist

Tweet
Facebook
Google+
Linkedin
Pinterest

Specification

Model:FN-260CN-2670-38

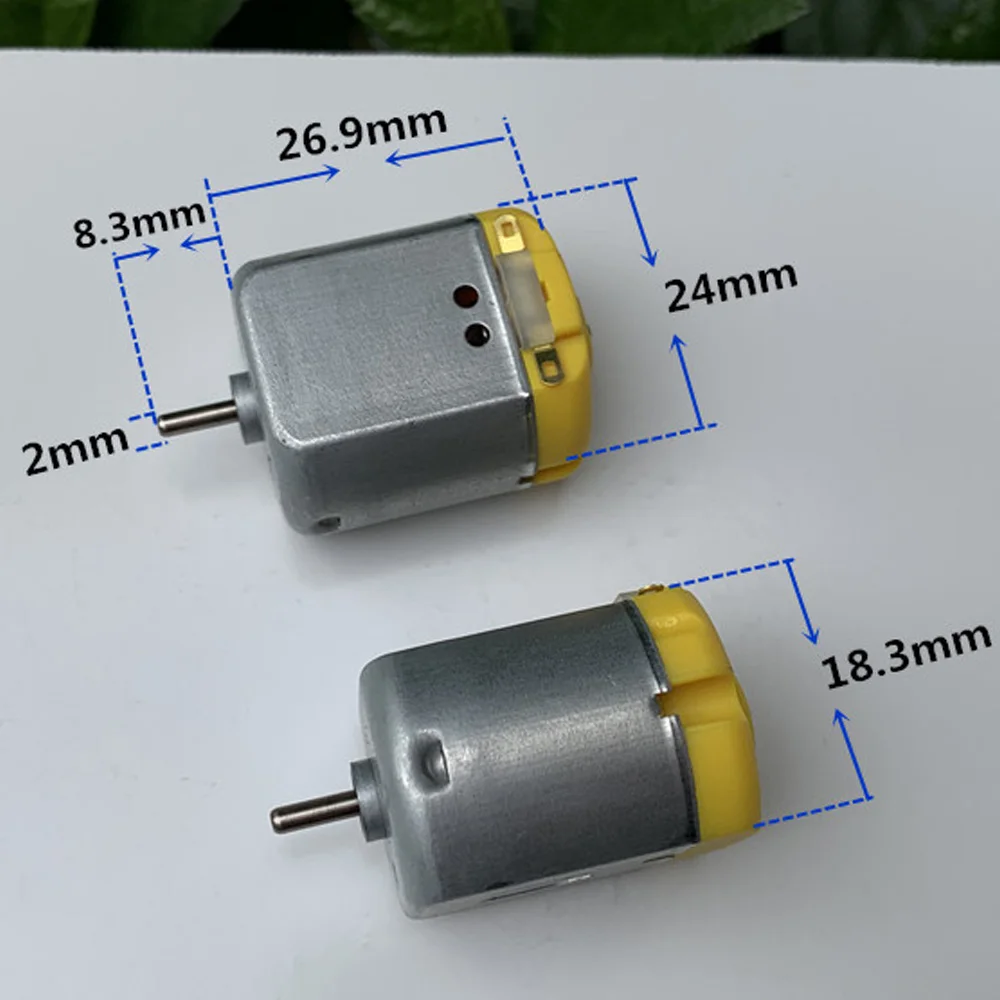

Output shaft diameter: 2.0 MM
Output shaft length: 8.3MM
Weight:30g
Voltage Range:3.0V-6.0V

Test data

Voltage: 3.0V
No-load Speed: 11500RPM
No-load Current: 300mA
----------------------------
Voltage: 3.7V
No-load Speed: 14000RPM
No-load Current: 320mA
----------------------------
Voltage: 5.0V
No-load Speed: 19500RPM
No-load Current: 340mA
----------------------------
Voltage: 6.0V
No-load Speed: 24000RPM
No-load Current: 400mA

Package Include

Motor x 1 PCS
