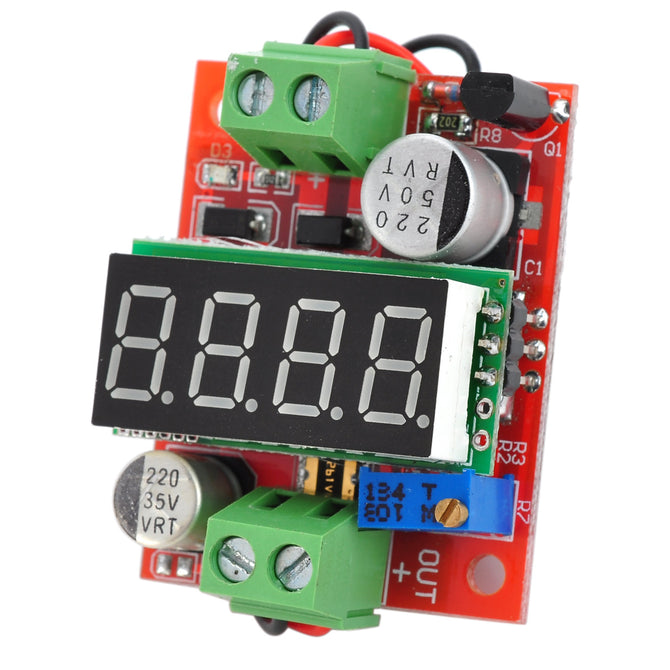

DC 3.2~40V to DC 1.23~37V 4-Digital Voltage Regulation / Reduction Power Module - Red + Green

DC 3.2~40V to DC 1.23~37V 4-Digital Voltage Regulation / Reduction Power Module - Red + Green

US$ 7.69 US$ 11.99

: In stock

: 183331

Model N/A Quantity 1 Color Red + green Material PCB + Electronic components Features With self-recovered safety, will auto-cutout as short circuit; it will self recover after solving short circuit...
Model N/A
Quantity 1
Color Red + green
Material PCB + Electronic components
Features With self-recovered safety, will auto-cutout as short circuit; it will self recover after solving short circuit
Specification Input voltage: DC 3.2~40V; Output voltage: 1.23~37V; Input current: 1.5A (peak current 3A); Operating frequency: 150Hz
Application DIY adjustable output car power, it can adjust the output from 1.23~10V as input DC 12V
Other DIY adjustable output car power, it can adjust the output from 1.23~10V as input DC 12V; Large power low voltage chip power supply; This module can supply the low voltage output but large current, the lowest output voltage is 1.23V, the largest current is 3A; Superfast charger, you can use this module to charge your battery quickly as you need the battery in emergency; 1.2V, 2.4V, 4.2V, 8.4V can supply output 3A current; Supply power for your electronic equipment, just need to adjust to the voltage your need and the current not exceed the rated current, the equipment will be in normal operation; Input voltage: 3.2~40V; Output voltage: 1.23~27V; Input current: 1.5A (peak current 3A); Operating frequency: 150Hz; Output ripple: <30mV (no-load); Standby current: 80mA; Transfer efficiency: Maximum 92%; Size: 4.5 x 3.5 x 1.7cm; Load regulation: +/- 0.5%; Voltage regulation factor: +/- 2.5%; Working temperature: -40'C~+85'C; Please bring down the power as the ambient temperature over 40'C
Packing List 1 x Power module
