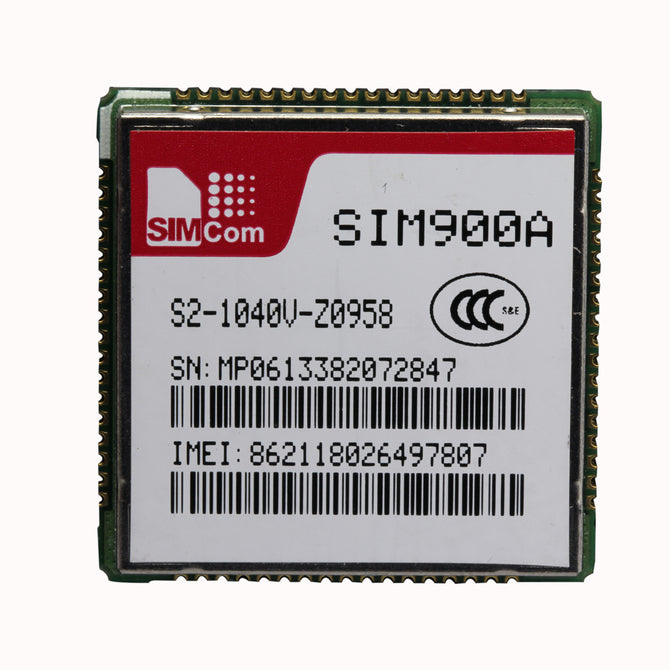

ChuangZhuo SIM900A SIMCOM Dual-band 900MHz/1800MHz GSM/GPRS Module - Green
US$ 10.11
US$ 14.19
: In stock
: 275797
Brand ChuangZhuo Model SIM900A Quantity 1 Piece Color Green Material CCL + PCB board Chipset SIM900 English Manual / Spec No Other Features GPRS multi-slot class 10/8 GPRS mobile station...
Share:
| Brand | ChuangZhuo |
| Model | SIM900A |
| Quantity | 1 Piece |
| Color | Green |
| Material | CCL + PCB board |
| Chipset | SIM900 |
| English Manual / Spec | No |
| Other Features | GPRS multi-slot class 10/8 GPRS mobile station class B Compliant to GSM phase: Class 4 (2W at 900MHz) Class 1 (1W at 1,800MHz) Control via at commands (GSM 07.07, 07.05 and SIMCOM enhanced at commands) SIM application toolkit Supply voltage range: 3.1 to 4.8V Low power consumption: 1.5mA (sleep mode) Operating temperature: -40 to +85¡ãC Specifications for data: GPRS class 10: maximum 85.6kbps (downlink) PBCCH supported Coding schemes CS 1, 2, 3, 4 CSD up to 14.4Kbps USSD supported Non transparent mode PPP-stack Specifications for SMS via GSM/GPRS: Point to point MO and MT SMS cell broadcast Text and PDU mode Specifications for fax: Group 3, class 1 Software features: 0710 MUX protocol Embedded TCP/UDP protocol FTP/HTTP Enhanced version add following features: FOTA MMS Embedded AT Specifications for voice: Tricodec: Half rate Full rate Enhanced full rate Hands-free operating (Echo suppression) AMR: Half rate Full rate Interfaces: Interface to external SIM 3V / 1.8V Analog audio interface RTC backup SPI interface (option) Serial interface Antenna pad I2C GPIO PWM ADC |
| Packing List | 1 x SIM900A Board |
