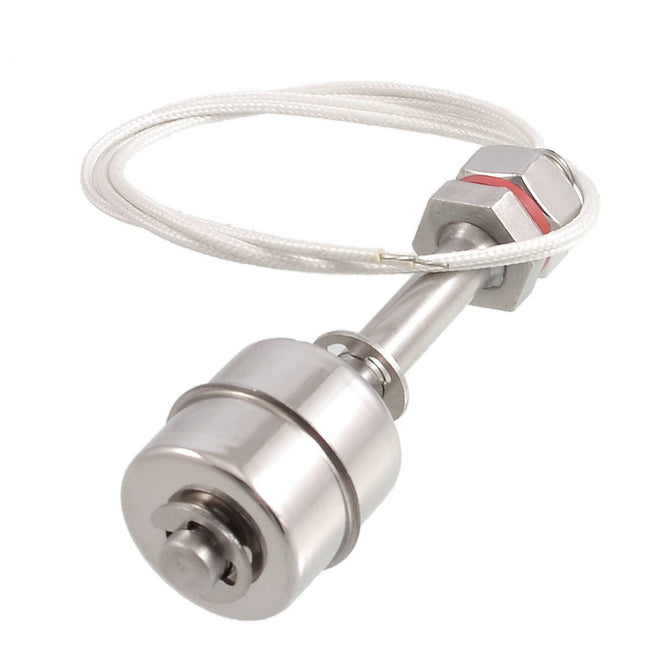

BTOOMET Liquid Water Level Control Sensor Stainless Steel Float Switch, 90 mm

BTOOMET Liquid Water Level Control Sensor Stainless Steel Float Switch, 90 mm

US$ 6.95 US$ 9.72

: In stock

: 532713

Product Name    Water Level SensorMax Contact Rating10WMax Switch Voltage    100V DCMax Switch Current    0.5AMax Breakdown Voltage    220V DCMax Carry Current    1.0AMax Contact Resistance    100mΩTemperature Rating    -10 ~ +85 DegreeFloat Ball...
Product Name    Water Level Sensor
Max Contact Rating
10W
Max Switch Voltage    100V DC
Max Switch Current    0.5A
Max Breakdown Voltage    220V DC
Max Carry Current    1.0A
Max Contact Resistance    100mΩ
Temperature Rating    -10 ~ +85 Degree
Float Ball Material    Stainless Steel
Float Body Material
Float Ball Size    25 x 25mm/ 1" x 1"(D*H)
Screw Thread Diameter    9.5mm/ 0.37"
Retaining Clip Diameter    14.5mm/ 0.57"
Body Length    90mm/ 3.5"
Cable Length    41cm/ 16.1"
Color    White, Silver Tone
Weight    52g
Package Content    1 x Water Level Sensor
Description:
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be.
Color White, Silver
Model 90MM
Quantity 1 piece
Material Stainless Steel
Power Range 100V DC
Max. Current 0.5A
Working Temperature 10 ~ +85 ¡æ
Certification 123355
Packing List 1 x Water Level Sensor

Dimensions: 3.54 in x 0.98 in x 0.98 in (9.0 cm x 2.5 cm x 2.5 cm)
Weight: 1.80 oz (51 g)
