Broadband 15 dB UWB Measuring Test Antenna 790 MHz To 2700 MHz With Handle

​Shipment From Russia Warehouse.

Attention! The spectrum analyzer is not part of the item!

Directional passive panel measuring antenna KPM15-790/2700 with gain up to 15 dB. It’s intended for execution of radio frequency measurements (measurement of field intensity and peak (amplitude) direction finding of the sources of electromagnetic radiation).

It operates in a frequency range of 790 MHz to 960 MHz and 1700 MHz to 2700 MHz

Wide operational range of antenna allows to produce measurements of the signal level of all common technologies and standards.

• 2G (EDGE, GPRS on GSM 900, GSM 1800)
• 3G (UMTS 900, UMTS 2100)
• 4G (LTE 800, LTE 1800, LTE 2600), YOTA
• WI-FI 2400 (IEEE 802.11 b, g, n)

The antenna has regulated gain in operational range of frequencies. It’s recommended for study the electromagnetic environment complete with spectrum analyzer.

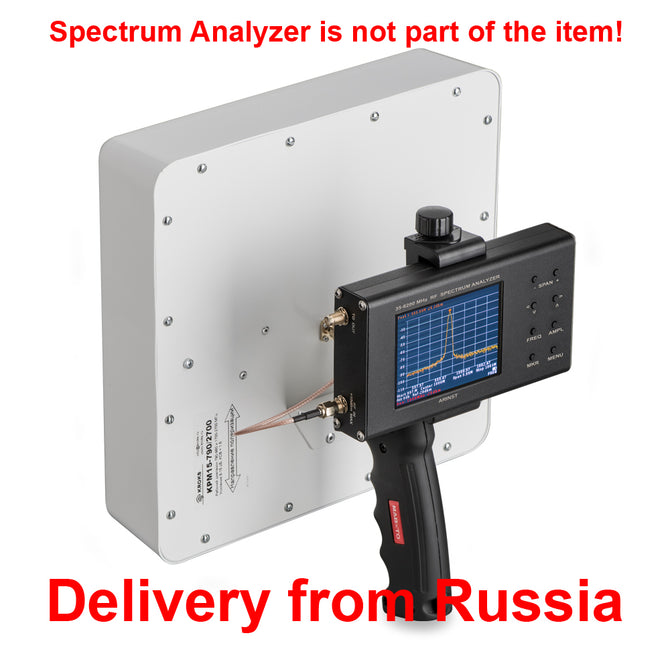

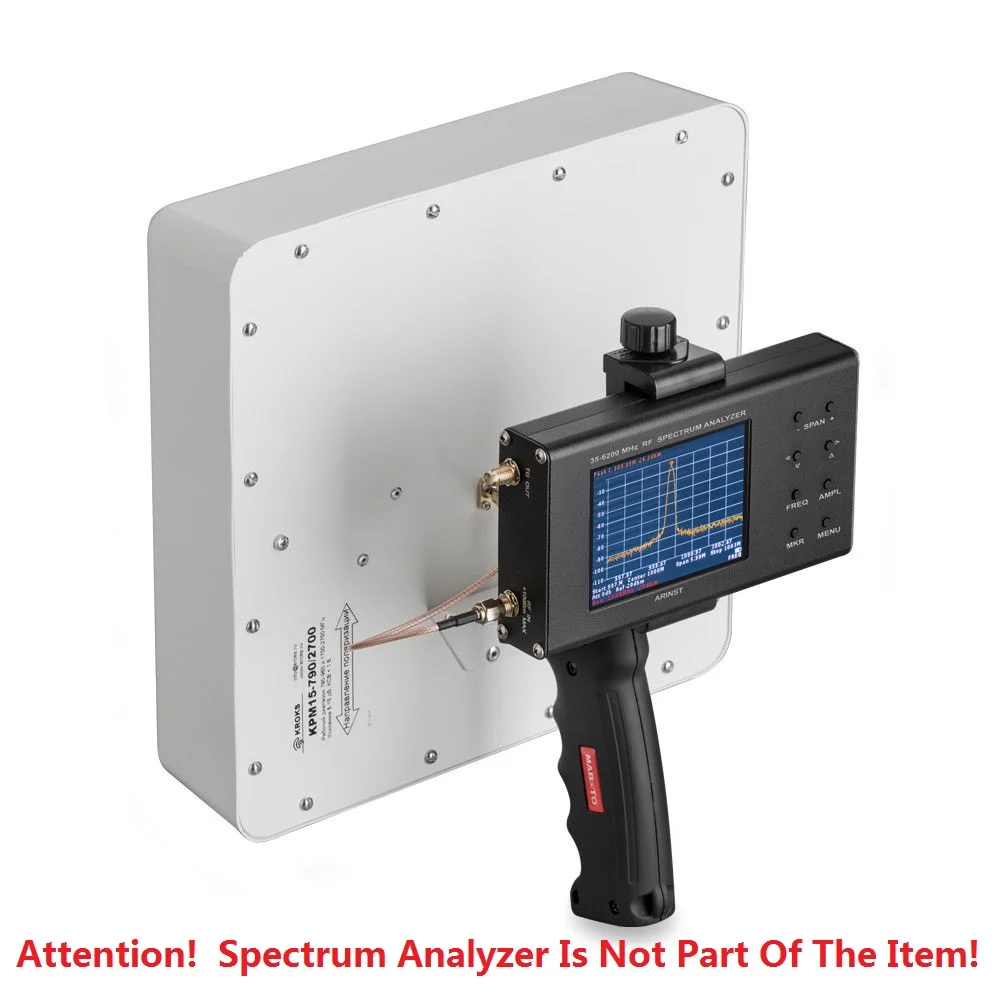

Pigtail for connection to the spectrum analyzer or other receiving device is included in the delivery.

With the aid of measuring antenna possibly to perform following works:

• Measurement of energy flux density
• Analysis of radio frequency environment;
• To direct the antenna to base station;
• To detect the source of the signal or interference;
• To analyze parameters of booster’s and repeater’s work.
• Creating an electromagnetic field with a given density
• Measurement of antenna parameters of various types
• Measurement of the parameters of electromagnetic compatibility of radioelectronic means
• Monitoring of electromagnetic environment
• Direction finding of sources of electromagnetic radiation

Features:

• small weight and convenient ergonomic handle reduce operator’s fatigue;
• fixing measuring equipment in a sliding holder;
• detachable handle and holder simplify storage and transport of the antenna;
• for assembling of the antenna special tool is not required.

Characteristics

• Dimensions (Length x Width x Height) - 250 x 250 x 140 mm (without handle)
• Operating frequency range - 790 MHz to 960 MHz and 1700 MHz to 2700 MHz
• Antenna gain - from 8 dB to 15 dB

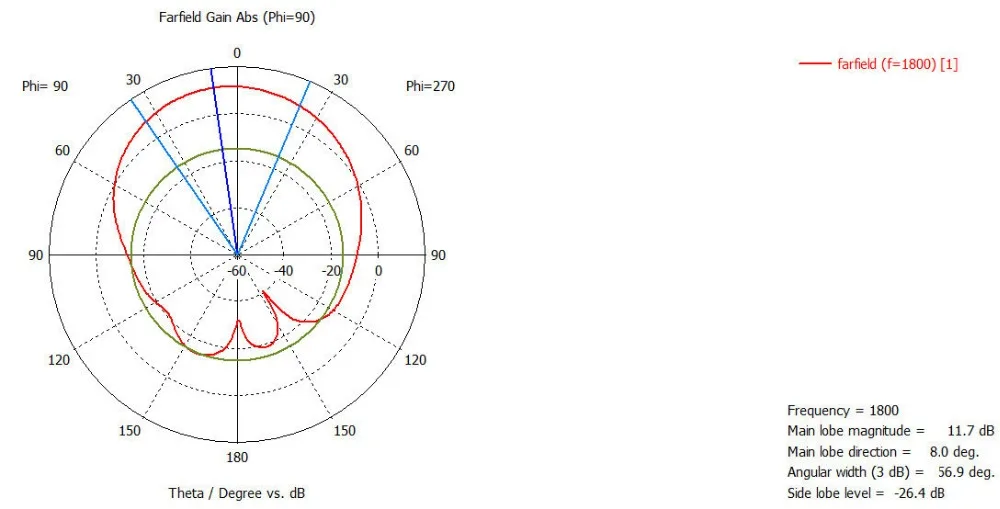

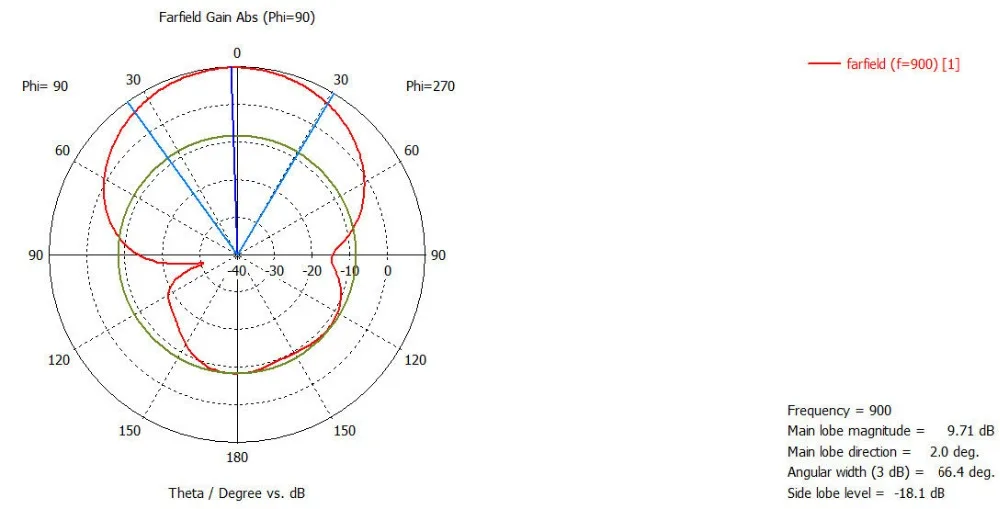

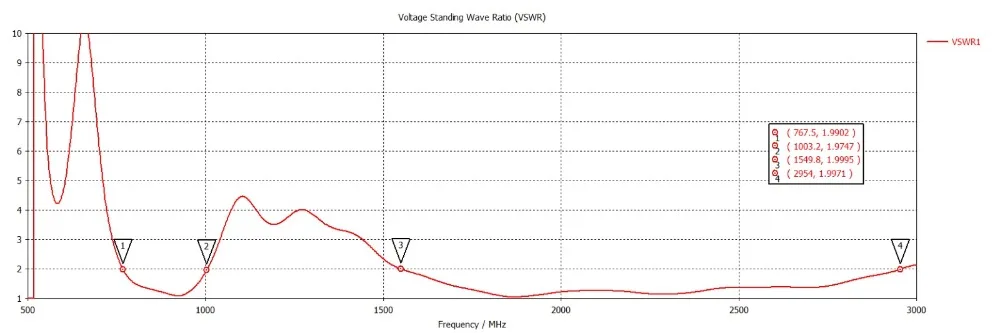

• SWR in the operating frequency range - not more than 1.6
• Polarization - Linear
• Input impedance - 50 Ohm
• Connector - SMA-female

Equipment:

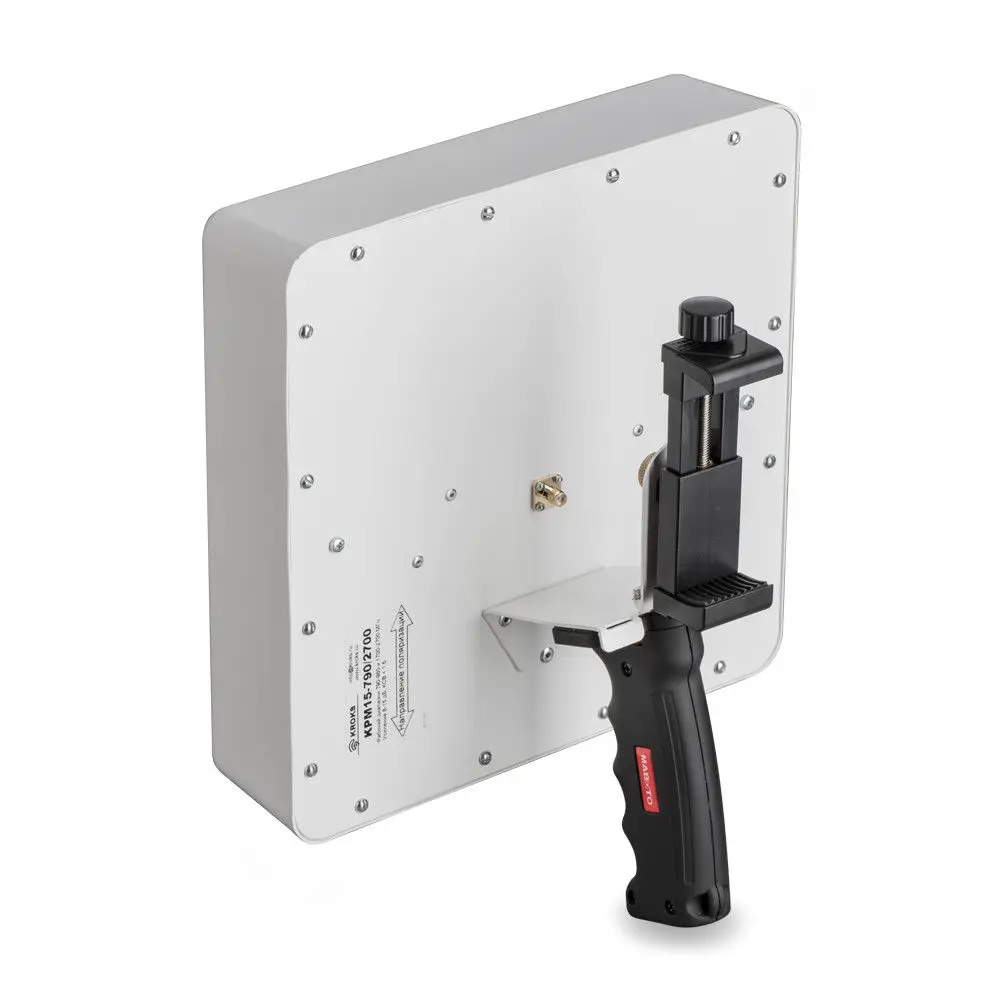

• Antenna with removable handle
• Sliding holder for fixing measuring equipment
• Pigtail SMA(male) -SMA(male) 1 m long from cable RG58
• Packaging

Goods may look slightly different from the images without changing their characteristics and performance.

Attention! The spectrum analyzer is not part of the item!
