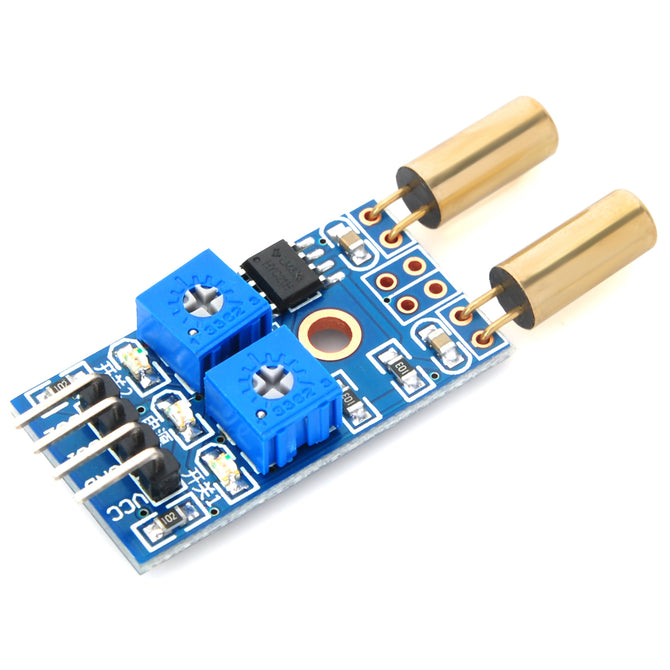

Angle Sensor Module for Arduino (Works with Official Arduino Boards)

- Quantity: 1
- Color: Blue
- Material: PCB
- High-sensitivity angle sensor SW-520D
- Comparator output, clean signal, great waveform, strong driving ability, more than 15mA
- Distribution positioner sensitivity adjustment
- Working voltage: 3.3V~12V
- Output form: Digital switching output (0 and 1)
- With fixed bolt hole for easy installation
- Small PCB size: 3.2cm x 1.7cm
- Wide voltage LM393 comparator
- Green light on, the output low
- Green light off, the output high
- Generally the initial state is open, so that the inclination sensor is not in a working state, to prolong life
- Default SW-520D sensor for object 90 degrees dumping detection
- The output can be directly connected with the single-chip microcontroller to detect high and low, then to detect the environmental changed view
- The output can directly drive relay module, to compose a high-power control angle switch
- Applies to various angle sensors, dumping sensors, tilt sensors, 2-channel output control
- Packing list:
- 1 x Angle sensor module
