A6 GPRS Pro Serial GPRS GSM Module Core DIY Developemnt Board TTL RS232 With Antenna GPRS Wireless Module Data Replace SIM900

A6 GPRS Pro Serial GPRS GSM Module Core DIY Developemnt Board TTL RS232 With Antenna GPRS Wireless Module Data Replace SIM900

US$ 10.74 US$ 16.32

Availability: In stock

SKU:

About US:We are a foreign trade technology company headquartered in Shenzhen, specialized in serving Southeast Asian customers, providing customers with one-stop services such as electronic materials, electronic products, computers and peripheral equipment, crafts, electronic watches, wearables, overall solutions, etc. We can also help Southeast Asian customers to purchase a variety of goods from China, providing high quality products.Find the right supplier for customers in China, grow together with customers, create miracles and the future.The founder of the company has served in the electronics industry for more than 20 years, has rich experience and technology, has its own professional electronics factory and rich supply chain. A6 GPRS Pro Serial GPRS GSM Module Core DIY Developemnt Board TTL RS232 With Antenna GPRS Wireless Module Data Replace SIM900 Description: This is professional version serial GSM...

Add to wishlist

About US:
We are a foreign trade technology company headquartered in Shenzhen, specialized in serving Southeast Asian customers, providing customers with one-stop services such as electronic materials, electronic products, computers and peripheral equipment, crafts, electronic watches, wearables, overall solutions, etc. We can also help Southeast Asian customers to purchase a variety of goods from China, providing high quality products.
Find the right supplier for customers in China, grow together with customers, create miracles and the future.
The founder of the company has served in the electronics industry for more than 20 years, has rich experience and technology, has its own professional electronics factory and rich supply chain.

A6 GPRS Pro Serial GPRS GSM Module Core DIY Developemnt Board TTL RS232 With Antenna GPRS Wireless Module Data Replace SIM900

Description:

This is professional version serial GSM / GPRS core development board based on GPRS A6 module. It supports dual-band GSM/GPRS network, available for GPRS and SMS message data remote transmission.
The board features compact size and low current consumption. With power saving technique, the current consumption is as low as 3mA in sleep mode.
It communicates with microcontroller via UART port, supports command including GSM 07.07, GSM 07.05 and Ai-Thinker enhanced AT Commands.

Features:
- Working frequency: quad-band network, 850 / 900 / 1800 / 1900MHz
- Working voltage: 4.8-9VDC(On-board voltage regulator circuit supply power for A6 module)
- Working Current: maximum of 2A
- Sleep Current: 5mA
- Onboard Micro SIM card holder, you can install Micro SIM card
- Onboard Micro USB interface for external power supply
- Communication Interface: TTL serial port / RS232 serial port
- Baud rate: 115200bps and it can also be set by AT command.
- Interface logic voltage: 3.3V
- Make and answer phone calls using a headset and electret microphone.
- Send and receive SMS messages.
- Send and receive GPRS data (TCP/IP, HTTP, etc.) .
- Be used to test the Ai-Thinker GPRS A6 module
- Pin pitch: 2.54mm
- Onboard antenna interface: SMA and IPX

About the Antenna:
- Suitable for SIM800L GSM modules / for Arduino SIM900 GPRS Shield
- Frequency: 780MHz ~ 960MHz .1710MHz ~ 2170MHz
- Antenna gain: +2.0 ± 0.7 dBi @ 880 MHz, +2.0 ± 0.7 dBi @ 1800 MHz
- S.W.R <= 2.0 @ 2100 MHz ~ 2500 MHz
- Output Impedance: 50 Ohm
- Antenna interface: SMA

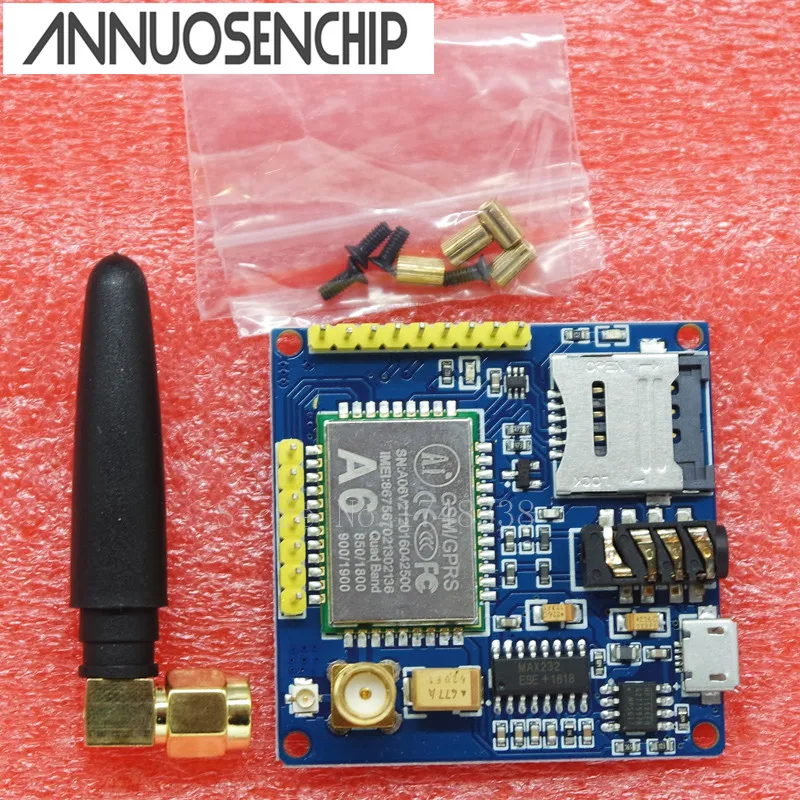

Package Included:

1 x Module
1 x Antenna

Specification
Model	N/A
Form Color	Blue + Black
Quantity	1Piece
Material	PCB + alloy + plastic
Frequency	850 / 900 / 1800 / 1900MHZ
Working Voltage	DC 4.8~9V
English Manual / Spec	Yew
