A3 Super 3 Standard Fixed Wing 6 Axle Gyroscope Flight Controller Stabilizer 32-bit MCU 6-axle MEMS Sensor for R/C Airplane

A3 Super 3 Standard Fixed Wing 6 Axle Gyroscope Flight Controller Stabilizer 32-bit MCU 6-axle MEMS Sensor for R/C Airplane

US$ 32.35 US$ 41.16

: In stock

: 626097

DescriptionA3 Super 3 (hereinafter referred to as A3S3) is a high-performance and functional 6-axis gyro and stabilizer designed for RC airplanes. This gyro can be used with nearly any size...
Description
A3 Super 3 (hereinafter referred to as A3S3) is a high-performance and functional 6-axis gyro and stabilizer designed for RC airplanes. This gyro can be used with nearly any size and type of R/C airplanes and it will make the flying even easier and comfortable.
Specification:
Brand Name: HobbyEagle
Item Name: A3 Super 3
Main Controller: 32-bit MCU
Sensors: High-precision 3-axis gyroscope and 3-axis accelerometer
Gyroscope Scale Range: ±2000dps
Accelerometer Scale Range: ±4g
PWM: 920uS ~ 2120uS with 1520uS center length / 50~333Hz
Input Voltage: 4.8V - 8.4V
Operating Temperature: -10¡æ - 50¡æ
Size: 43×27×14mm
Weight: 10g (excluding wires)
Features:
32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform and new firmware solution provide more reliable performance.
Supports 6 flight modes, including Gyro-Off mode, Normal mode, Trainer mode, Atti-Lock mode, Auto-Level mode and Auto-Hover mode.
Supports 6-position flight mode switching.
Supports 7 wing types, dual aileron, dual elevator, delta-wing and v-tail supported.
External LED module, integrated with data interface, flat or upright various mounting orientations supported.
Compatible with most standard receivers, standard PPM single-line receivers and Futaba’s S.Bus and S.Bus 2 receivers.
Sub trim and travel limit settings for servos, separate stick Rate and EXP settings for each mode.
Pass-through function for [A2] and [E2] channels.
Customizable hardware and software low pass filters for gyroscope and accelerometer, enable you to optimize the performance of the gyro as you want.
Quick setup supported by using the programming card while flying outside.
Note:
Setup Software V1.0, http://www.hobbyeagle.com/download/A3S3_Config_Utility_v1.0.msi
USB Driver, http://www.hobbyeagle.com/download/CP210x_VCP_Win_XP_S2K3_Vista_7.exe
Online Firmware Upgrade Tool V1.0, http://www.hobbyeagle.com/download/Firmware_Update_Utility.msi
English Manual, Click Here

Color black
Model A3 Super 3
Material Composite materials
Quantity 1 set
Compatible Model R/C Airplane

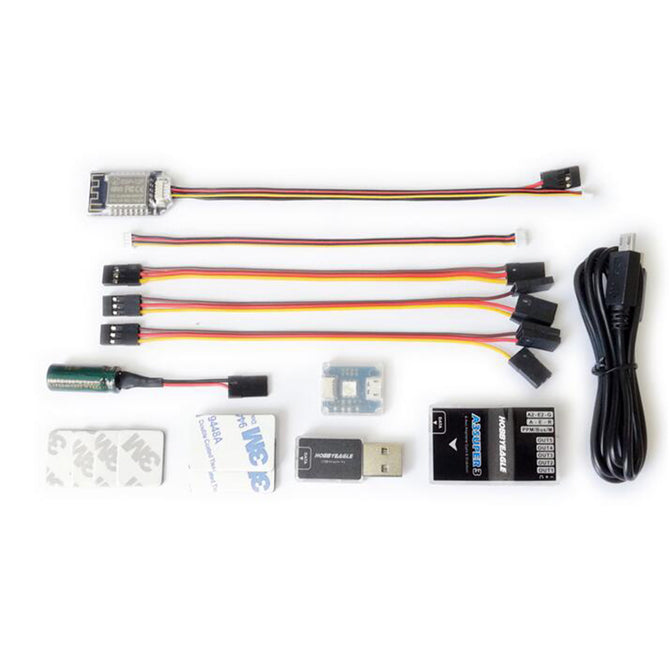

Packing List 1 x A3 Super 3 Axle Airplane Gyro Gyroscope Flight Controller Stabilizer
1 x Voltage Protector
1 x USB Cable
1 x USB Adapter
1 x External LED module +1 x Connecor Cable
3 x Receiver Wires
4 x Tape Stickers

Dimensions: 1.69 in x 1.06 in x 0.55 in (4.3 cm x 2.7 cm x 1.4 cm)
Weight: 0.78 oz (22 g)
