8mm Coil Micro Volume High Current Wireless Charging Module Wireless Power Supply Module
US$ 8.45
US$ 13.73
: In stock
: ai204651rs
More wireless power supply modules: 8mm Coil Micro Volume High Current Wireless Charging Module Wireless Power Supply Module This module is developed and designed using the wireless charging chip XKT001...
Share:
More wireless power supply modules:

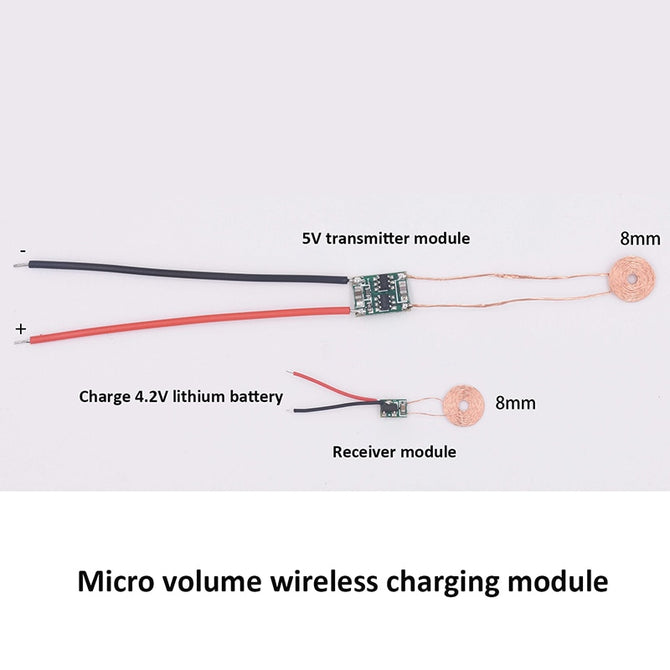

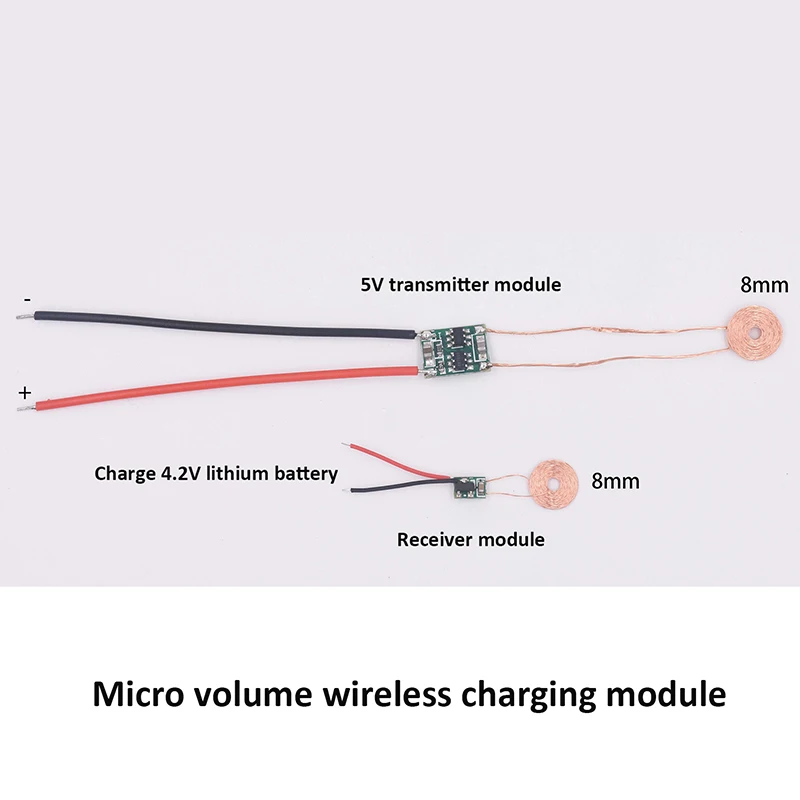

8mm Coil Micro Volume High Current Wireless Charging Module Wireless Power Supply Module
This module is developed and designed using the wireless charging chip XKT001 recently developed by XKT. It can realize the power transmission function on a very thin and small coil.
The thin and light coil greatly reduces the cost of the product and is easy to apply. It can be wirelessly charged directly into the product.
Module parameters:
Transmitter module input voltage: 5 V
Transmitting coil: outer diameter 8mm, inner diameter 2mm, thickness 0.9mm
Launch board size: length 10mm, width 8mm, thickness 1.8mm
Receive coil: outer diameter 8mm, inner diameter 2mm, thickness 0.55mm
Receiver module: width 3.3mm* length 5mm
Output current 4.2V80mA
Use distance 1~4mm
Mainly used for direct charging of small batteries in micro products.
1* wireless power supply module
