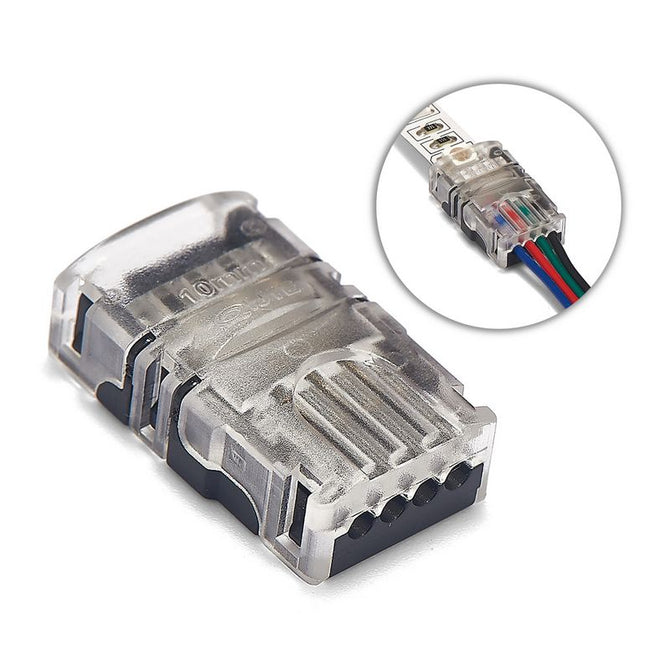

5pcs LED Strip Connector 2/3/4/5pin RGB Connector For LED RGBW RGBWW 2835 3528 5050 LED Strip Light Wire Terminal Connector

5pcs LED Strip Connector 2/3/4/5pin RGB Connector For LED RGBW RGBWW 2835 3528 5050 LED Strip Light Wire Terminal Connector

5pcs LED Strip Connector 2/3/4/5pin RGB Connector For LED RGBW RGBWW 2835 3528 5050 LED Strip Light Wire Terminal Connector

US$ 2.40 US$ 3.84

Availability: In stock

SKU: 62795

All our products have been carefully selected and they are same as the picture which you see on our store. We already let the product color tend to the true...

color

LED Strip to Wire

LED Strip to Stip

Pins

For 2pin 5mm IP20

For 2pin 8mm IP20

For 2pin 8mm IP65

For 10mm 3pin IP20

For 10mm 3pin IP65

For 10mm 4pin IP20

For 10mm 4pin IP65

For 12mm 5pin IP20

For 12mm 5pin IP65

For 2pin 10mm IP20

For 2pin 10mm IP65

For 6pin 12mm IP20

For 6pin 12mm IP65

Quantity

Add to wishlist

Tweet
Facebook
Google+
Linkedin
Pinterest

Description
Additional Information
Reviews

All our products have been carefully selected and they are same as the picture which you see on our store. We already let the product color tend to the true as far as possible, however because of the monitor color error there more or less has a little bit of different. But definitely the product shape is the same as the picture.

Technical Data
		IP20 or IP54/65 Silicon Waterproof	IP54/65 Epoxy/PU Waterproof
Electrical Data	Working Voltage	DC3~24V
	Max Current	5A
Pin Data	Pin Quantity	2/3/4/5/6 Pins
	Material	Copper
Workable Strip Data	Strip Light Color	Single Color / Dual Color / RGB / RGB+White / RGBW / RGB+Yellow / RGBWW / RGB+Dual Color
	IP Rating	IP20	IP65 / IP54
	Waterproof Type	Non-waterproof	One Side Glue Coating
	FPC Thickness	0.2~0.35mm
	LED Strip Height	/	>22 mm Include Glue
	LED Strip Width	5/8/10/12mm
	LED QTY / Meter	<=96LEDs(4/5/6pin), <=120LEDs(2/3pin), <=300LEDs(High Density)
Workable Wire Data (for strip to wire)	Wire Gauge	22~18AWG(2pin), 22~20AWG(3/4/5/6pin)
	Cross Section	0.34~0.72mm²(2pin), 0.34~0.5mm²(3/4/5/6pin)
	Wire O.D.	Φ1.5mm~Φ2.1mm
	Wire Type	Strand & Solid
Housing Data	Flame Retardant	UL94v~0
	Material	PC
	Heat Resistance	105℃
Ambient Data	Temperature	-20~50℃
	Environment	Indoor
Note: 1. For IP65/IP54 Strip Light, the IP rating will not be maintained after connection. 2. Due to silicon coating is softer, if IP65 type can not work well, please try connecting it with IP20 type.

Item Features:

100% brand new LED Strip Connectors
Strip to wires connection box
Easy to install, no soldering needed when use to re-connect LED strip and wires
Connector Type: 2 pin 8mm/3 pin 10mm/4 pin 10mm/5 pin 12mm
Shell material: fireproof PC
Contact material: Copper
Rated voltage(V): 0-36V
Rated current(A): 5A
Fitted cable gauge(mm²): 0.35mm²/0.5mm²/0.75mm²
Fitted cable gauge(AWG): 22AWG/20AWG/18AWG
Fitted cable OD(mm²): Φ1.5mm-2.1mm
Flame class: UL-94-V0
Working temperatur: -20℃ - 60℃
Waterproof rate: IP20/IP65

Package Includes:

5 x LED Strip Connectors
