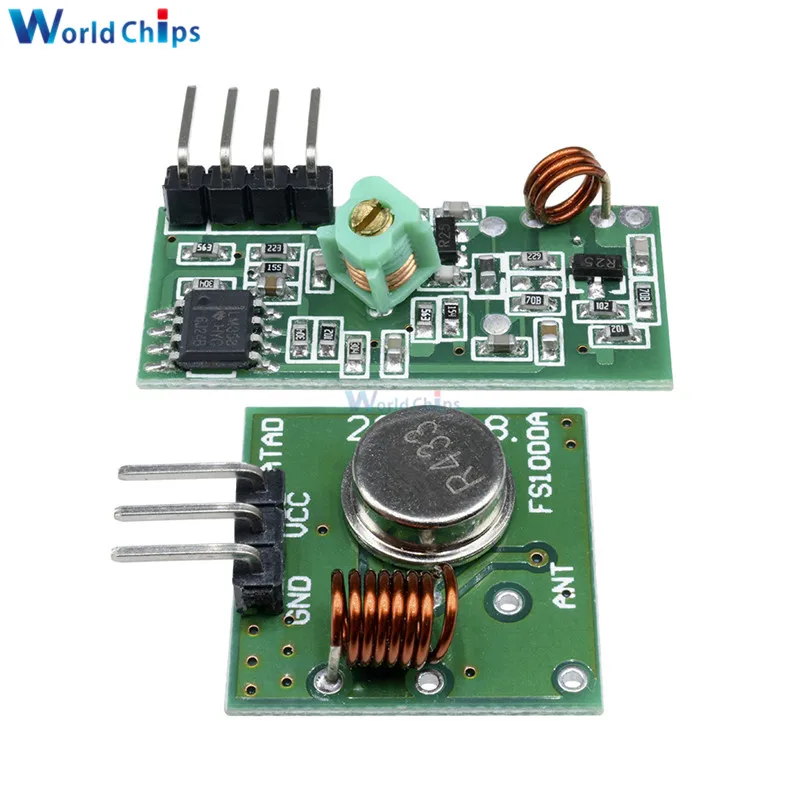

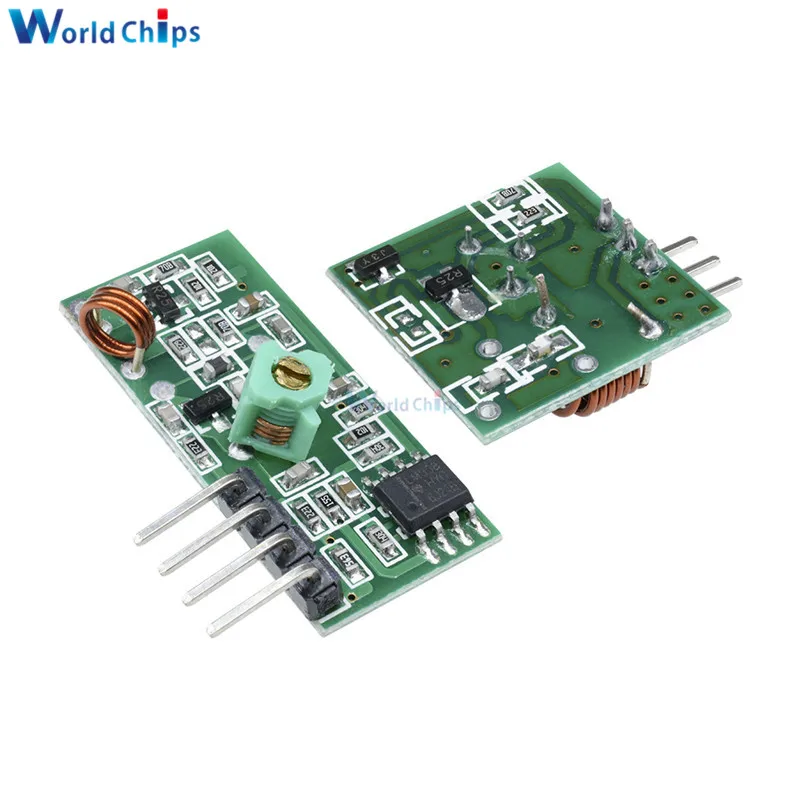

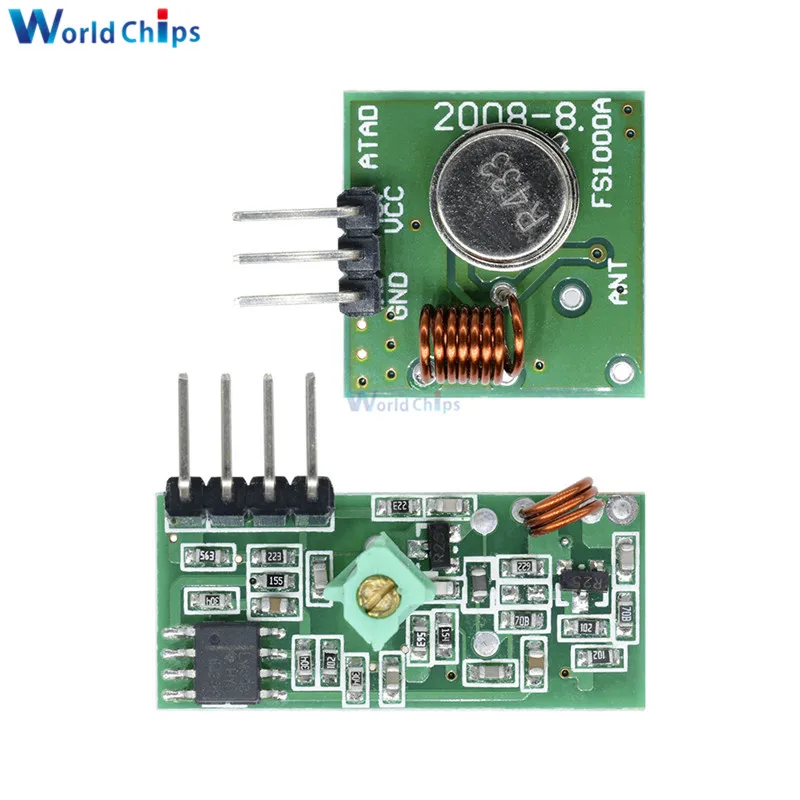

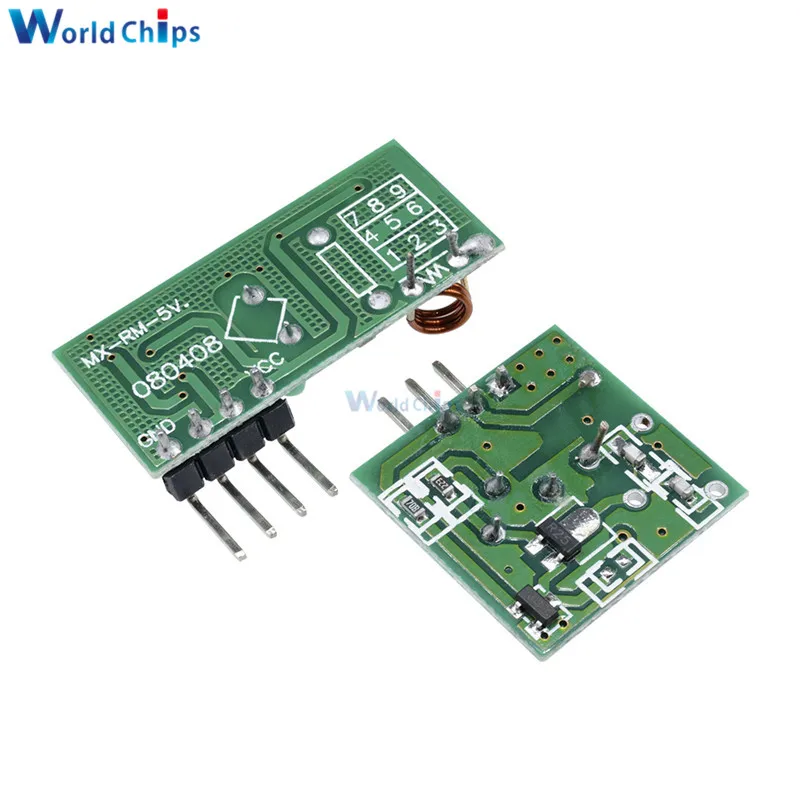

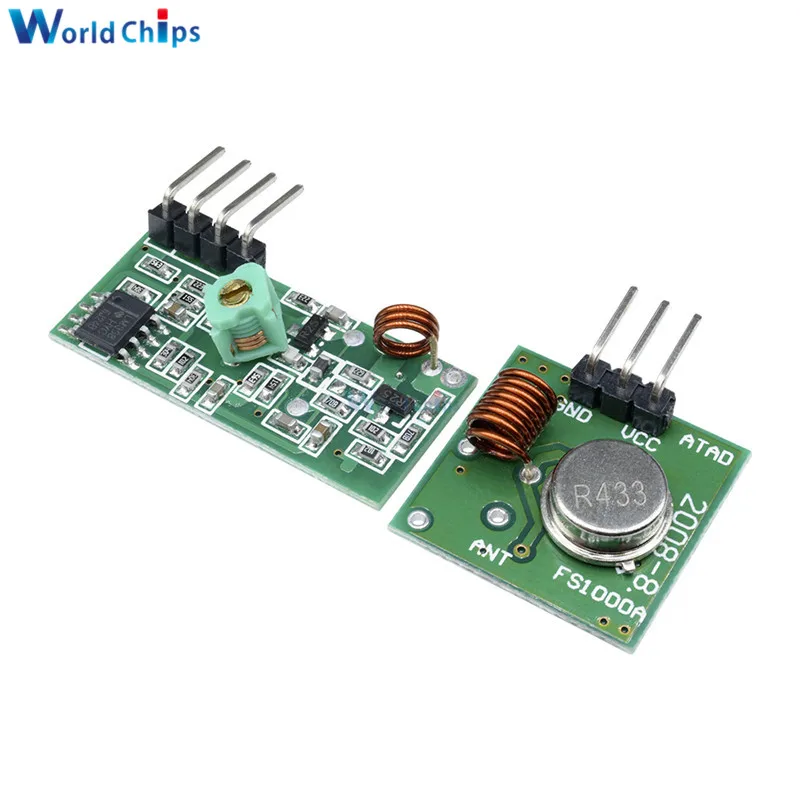

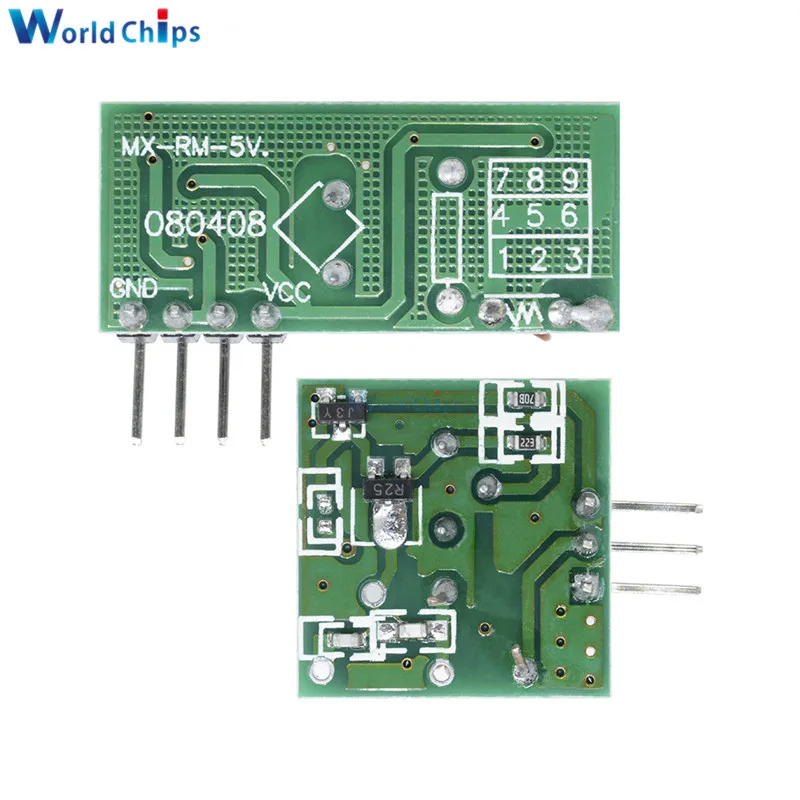

5Pair (10pcs) 433Mhz RF Wireless Transmitter Receiver Module OOK/ASK Link Kit for Arduino/ARM/MCU WL

TX Technical Specifications:

A Working voltage: 3V-12V

B Working current: max≤40mA (12V), min≤9mA(3V)

C Resonance mode: sound wave resonance (SAW)

D Modulation mode: ASK /OOK

E Working frequency: 315MHz-433.92MHz, customized frequency is available.

F Transmission power: 25mW (315MHz at 12V)

G Frequency error: +150kHz (max)

H Velocity: ≤10Kbps

I Self-owned codes: negative

RX Technical Specifications:

A Working voltage: 5.0VDC +0.5V

B Working current:≤5.5mA (5.0VDC)

C Working principle: single chip superregeneration receiving

D Working method: OOK/ASK

E Working frequency: 315MHz-433.92MHz, customized frequency is available.

F Bandwidth: 2MHz (315MHz, having result from testing at lowing the sensitivity 3dBm)

G Sensitivity: excel -100dBm (50Ω)

H Transmitting velocity: <9.6Kbps (at 315MHz and -95dBm)
