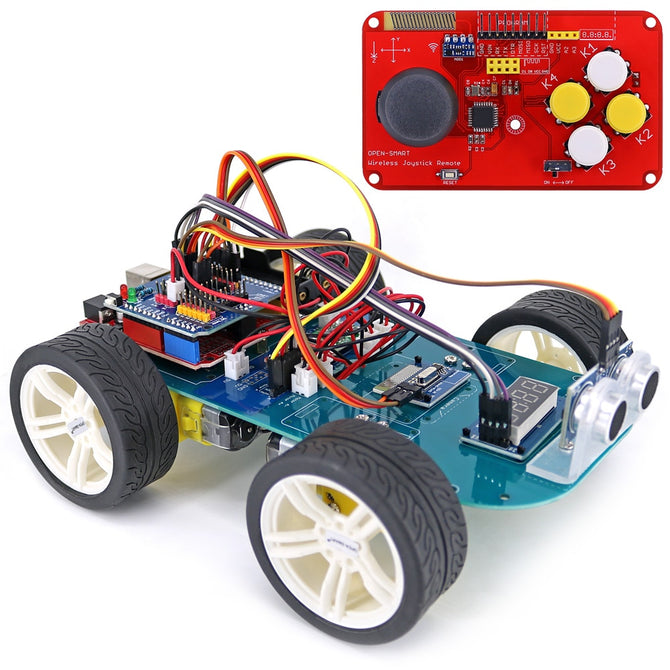

4WD Smart Car Kit RF 433 MHz JoyStick Remote Control Long Range Wireless Rubber Wheel Gear Motor Tutorial Compatible for Arduino

Description

If you want to place the bulk order that the stock is not enough, please contact with us.

NOTE1:

You should use two 3.7V AA lithium battery(14500) to supply power for the car.

The kit does not include any battery.

Note2:

You should know the package does not include any tutorial.

We can send the doc or tutorial download link to you by the station message system.

The kit is wireless joystick remote control smart car kit that is designed for ATmega328P development Board compatible for Arduino.

Every step has a clear graphic explanation, so the installation is very simple.

It contains an PCB chassis that can be easily installed with OPEN-SMART Board or other compatible motherboards.

You can follow the installation tutorial and video to assemble the car, and each step has a clear graphic explanation, the installation is very simple.

Gear motors and battery holder are all XH-2.54 connectors, so you can plug them directly onto the corresponding white socket on the chassis.

After installation, please follow the operations in the tutorial video, so you can directly use the wireless joystick remote to control the car.

The kit can help you learn ATmega328P programming and learn how to make interesting projects, such as ultrasonic distance measurement and display, ultrasonic obstacle avoidance, bluetooth-compatible remote control smart car.

Before enjoying the car, you should get the battery power for the Wireless Joystick Remote and the Smart car.

NOTE3: The car will be shipped disassembled and the batteries is not included, please know.

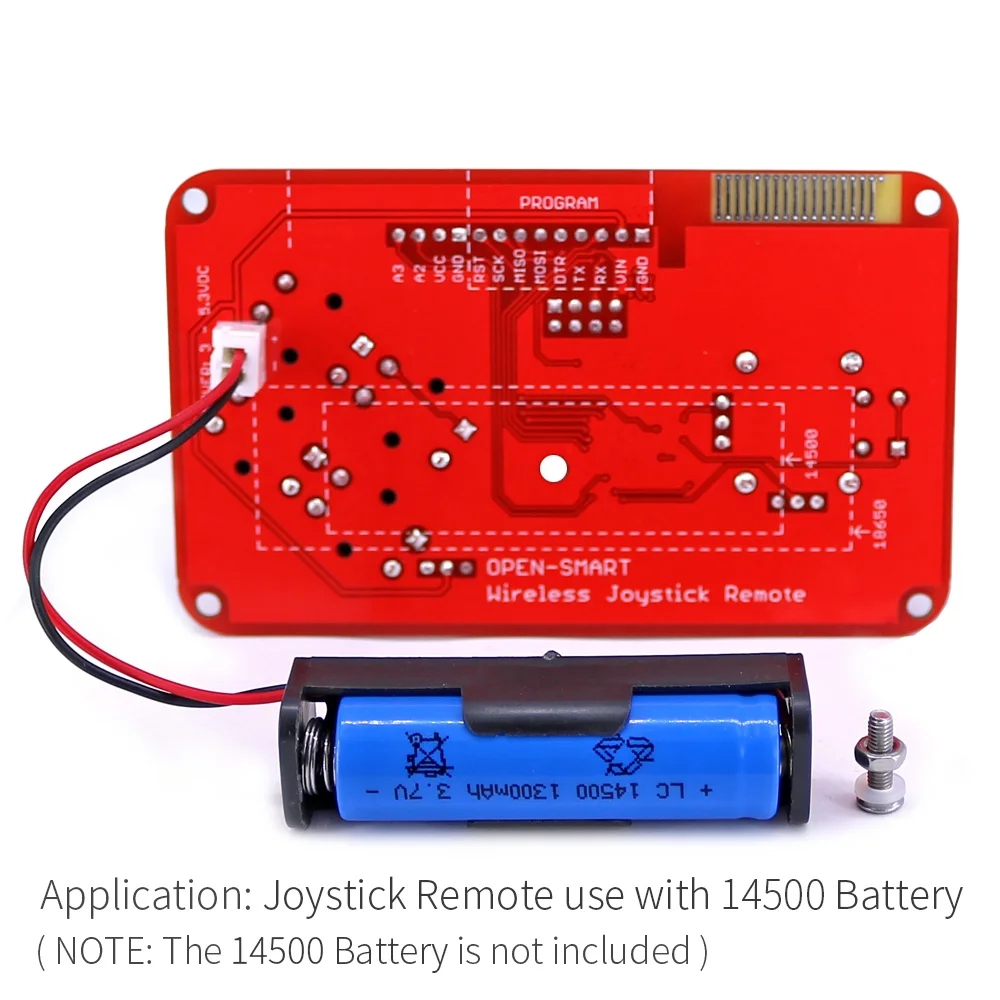

NOTE4: For the power for the remote control, you can use 3.7V lithium battery with XH2.54 connector. You can refer to the red and black line order from the follow reference photo:

Features:

- Rubber tires: beautiful and wearable

- Using the TT gear motors, small, large torque, long service life

- Gear motor has been soldered wires, easy to use

- The car chassis has been soldered regulator circuit and motor drive module, can be directly connected to motors.

- Car chassis can install OPEN-SMART Board and compatible motherboard

- You can install HC-SR04 ultrasonic sensor.

- You can use the included wireless joystick remote module, and instead you can use other wireless modules such as Bluetooth-compatible module, infrared, NRF24L01 transceiver module.

- It is suitable for DIY Smart car project.

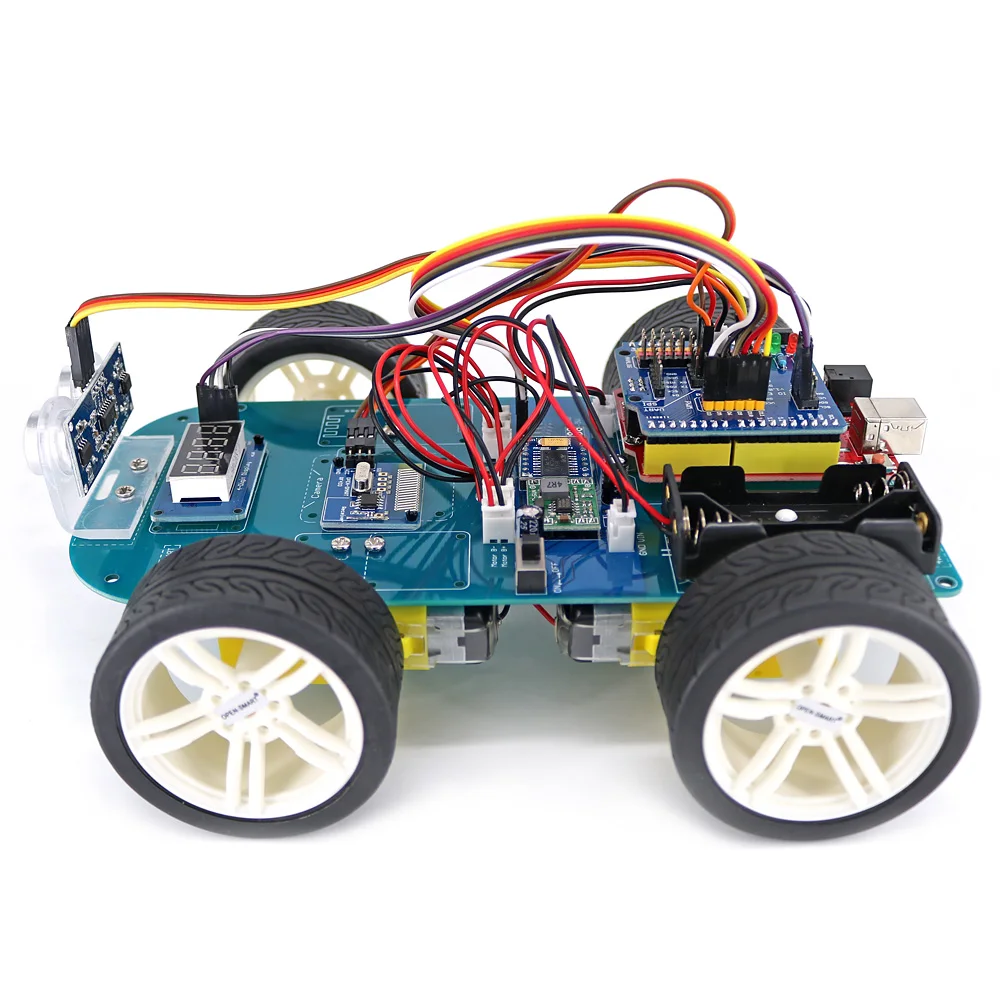

Photos

Part List (Schematics and program can be sent via e-mail,Please contact us)

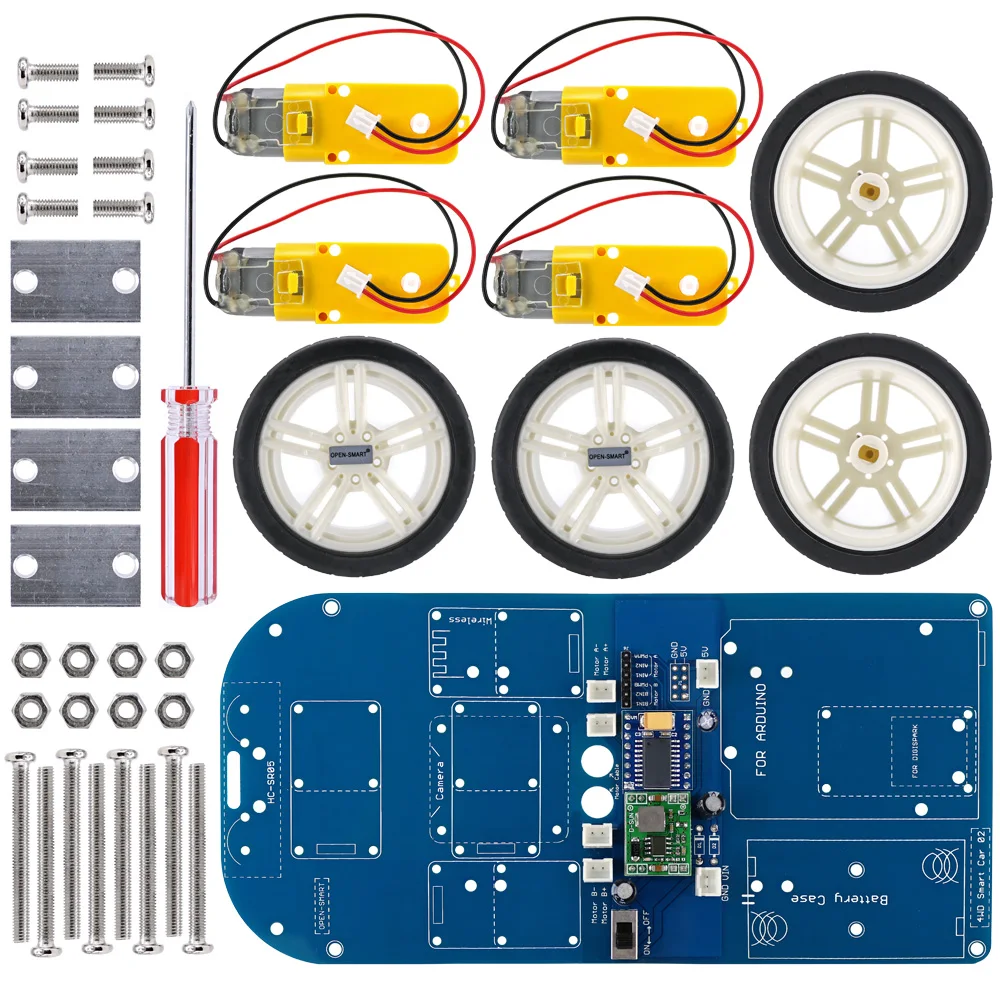

1 x PCB Car Chassis

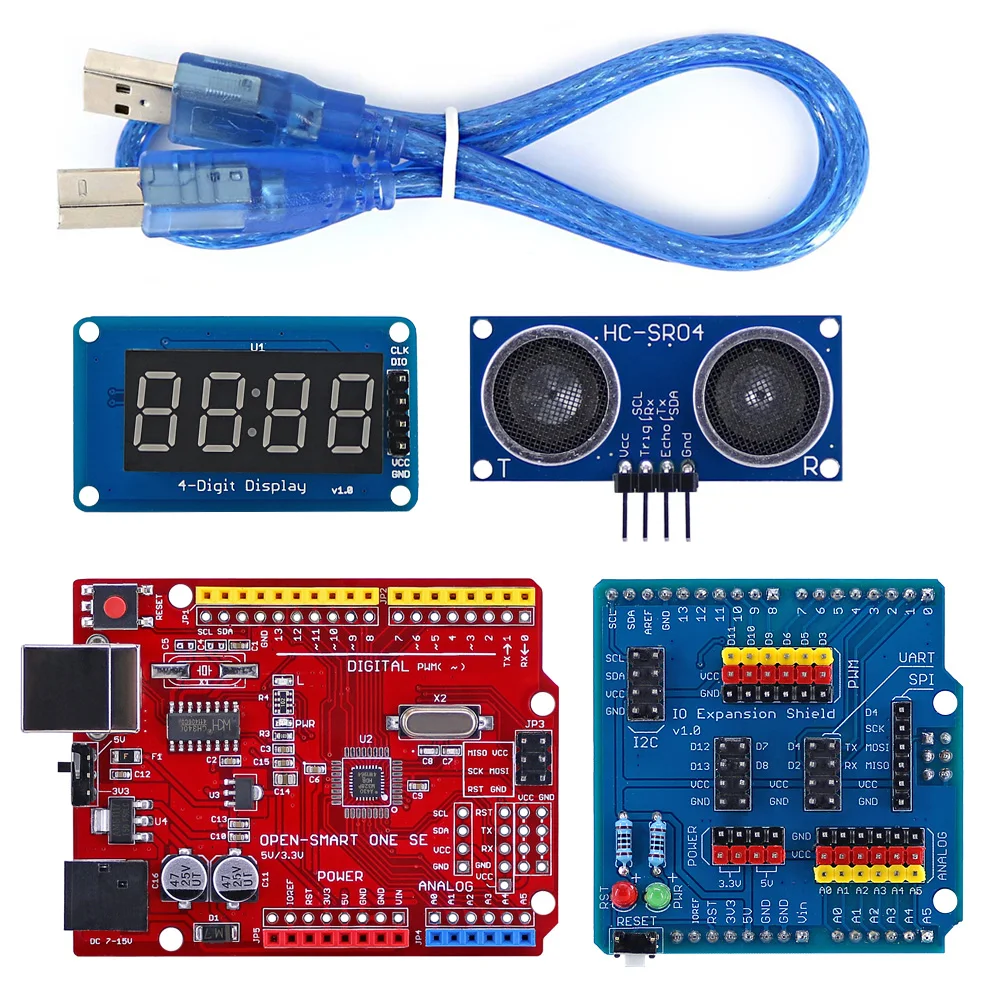

1 x OPEN-SMART Board

1 x 50cm USB Cable

1 x IO Expansion Shield

1 x Ultrasonic Sensor module

1 x Ultrasonic Sensor Acrylic stand

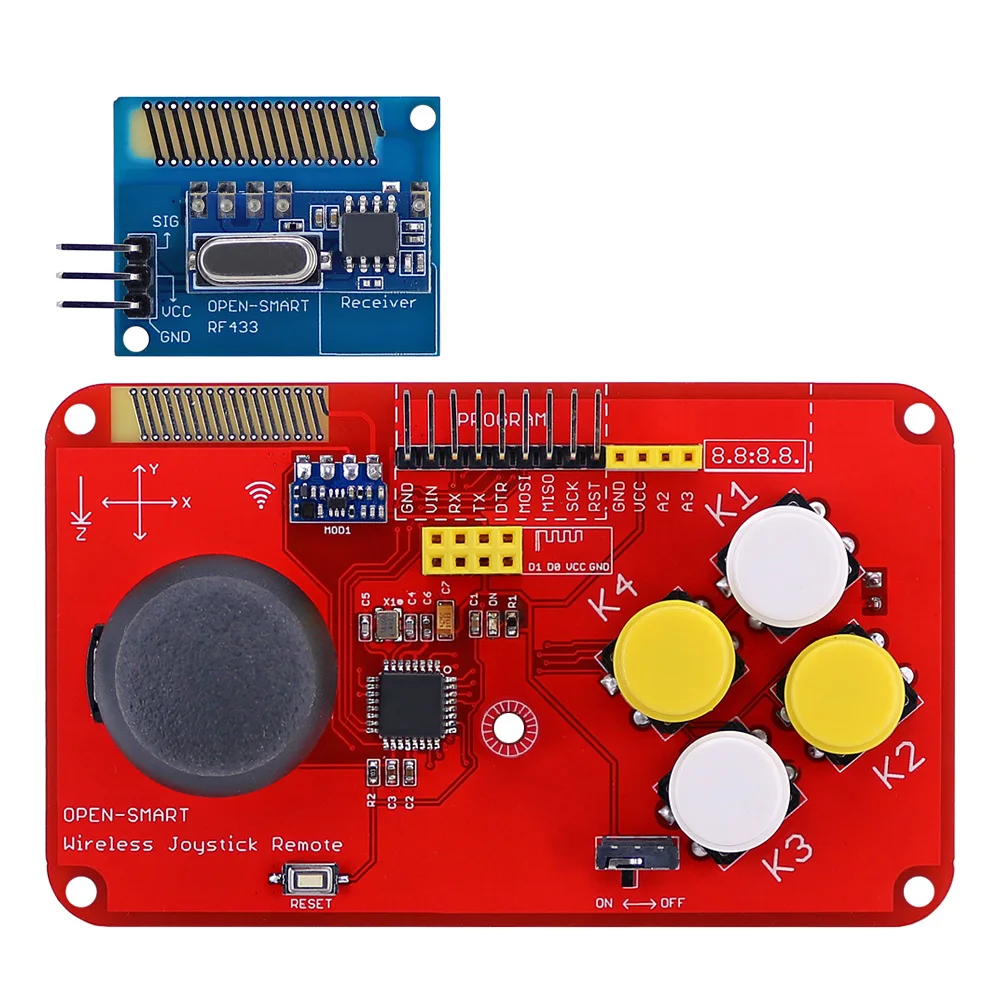

1 x Joystick Remote control

1 x RF433 Receiver module

1 x 4-Digit Display module

4 x Gear Motor with Connection Wires(15cm)

4 x Motor Fixing

4 x Wheels

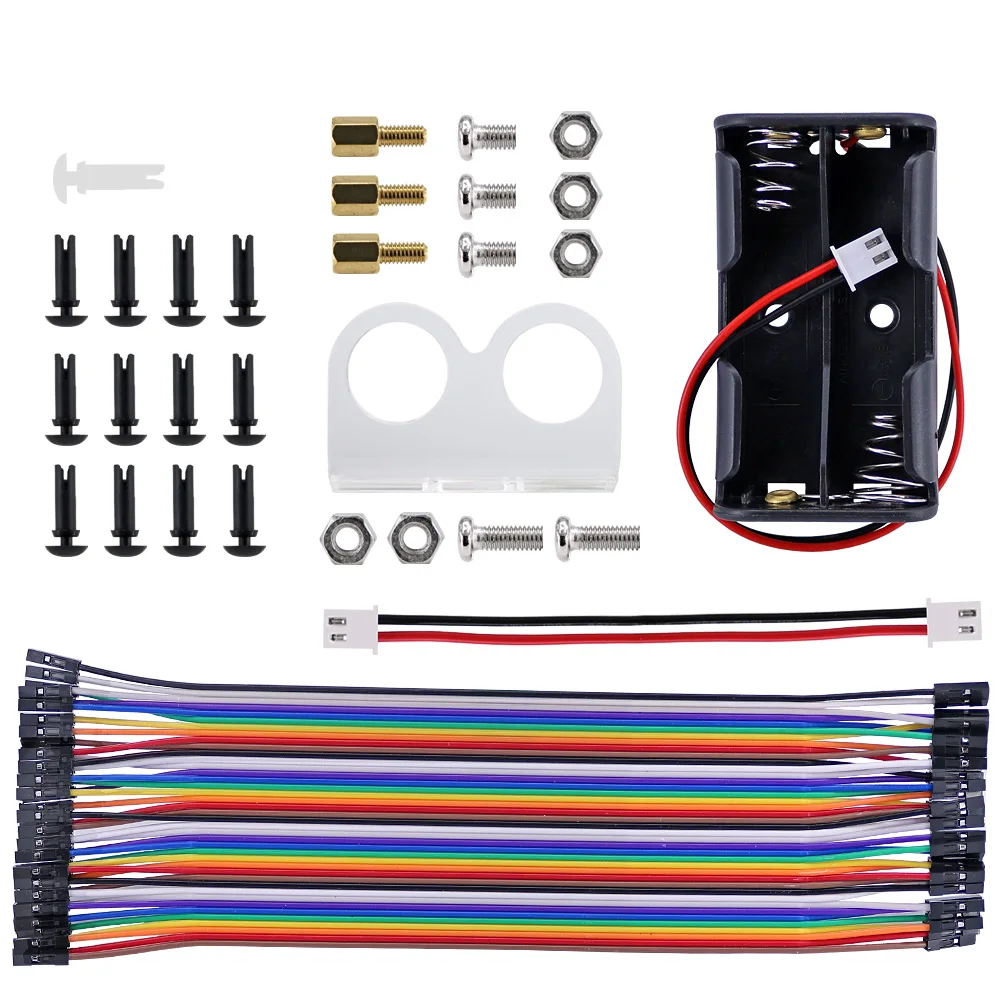

1 x 14500 Battery Holder

1 x Cross screwdriver

1 x 40P Female to Female Header Dupont Wire(20cm)

1 x 2P XH2.54mm cable

1 x White Nylon Rivet (R2672)

12 x Black Nylon Rivet (R2064)

3 x Copper Pillars (M3x6+6mm)

3 x Steel Screws (M3x5)

3 x Steel Hex nuts (M3 x 2.5)

1 x Packing List
