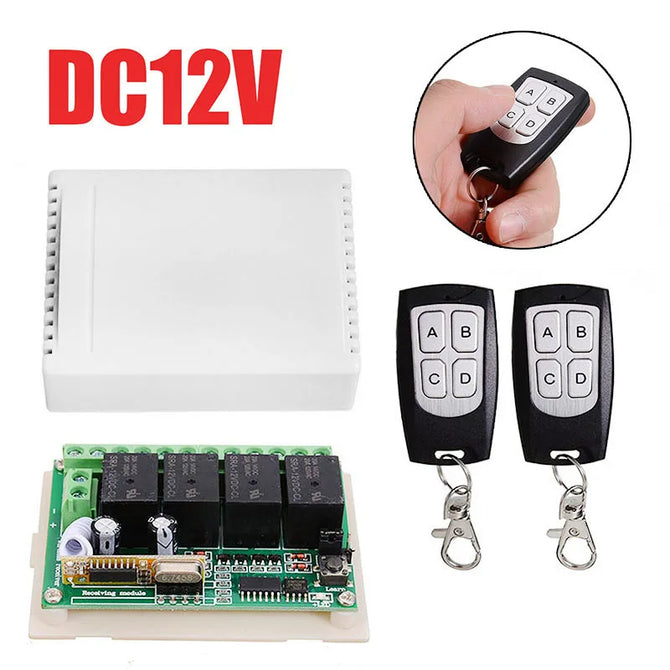

433Mhz Universal Radio Receiver Relay Remote Control Switch DC 12V 4CH Relay Receiver Module+RF Remote Controller Transmitters
: In stock
:
We are a foreign trade technology company headquartered in Shenzhen, specialized in serving Southeast Asian customers, providing customers with one-stop services such as electronic materials, electronic products, computers and peripheral equipment, crafts, electronic watches, wearables, overall solutions, etc. We can also help Southeast Asian customers to purchase a variety of goods from China, providing high quality products.
Find the right supplier for customers in China, grow together with customers, create miracles and the future.
The founder of the company has served in the electronics industry for more than 20 years, has rich experience and technology, has its own professional electronics factory and rich supply chain.
EA0004855
Specifications:
1. Input Power:DC12V
2. RF Frequency: 433Mhz
3. Standby Current:5mA
4. Match Mode：1527 code
5. Receiver sensitivity: -104dbm
6. Remote Distance: 50-80m
7. Operation mode:Momentary Mode,Toggle Mode,Toggle Mode
8. Output : NO , NC , COM
9. Modulation mode: ASK
10. Working temperature:-15 ~ +75°C
Instruction:
Clearing All Stored Transmitters:
Push the learning button on the receiver 8 times , and the codes will be cleared .
After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.
1. Learning the transmitter :(momentary Mode)
Press the learning key on the receiver 1 times, Wait for a moment , the LED will be off , it comes into
learning state .
Press the remote button , LED indicator on the receiver board will flash then come off .After 3 seconds, the
LED indicator will be on again , learning successfully .
2.Learning the transmitter : ( Toggle Mode )
Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into
learning state .
Press the remote button , LED indicator on the receiver board will flash then come off .
After 3 seconds, the LED indicator will be on again , learning successfully .
3.Learning the transmitter : ( Latched Mode )
Note: When you choose for Interlocking mode , in order to learn more remote control , you need to learn
two different button , the first time learn is for “ON”, the second time learnt for “OFF”.
For example : button A = ON , button B = OFF
Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times. When the LED is
on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for
3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off ,
Learning to succeed.
Package included:
1 x Remote Receiver Module (including Case)
2 x Remote Control Transmitters (including battery)
Notes:
Please check as much as possible to make sure the item is the one that you need.
Please allow slight dimension difference due to manual measurement.
Due to light and screen difference, the item's color may be slightly different from the pictur
