Navceker HDMI KVM Switch with EDID Lock 4K 60Hz Dual Monitor Display 4X2 4 port USB 3.0 HDMI KVM Switch 2 Monitors 4 PC Computers Keyboard Mouse Share

Description:

ZY-AH42U,Navceker 4K 60Hz 4x2 HDMI USB 3.0 KVM Switch allows you to share one USB keyboard, USB mouse, and two HDMI monitor to control 4 computers, laptops, game consoles.

It is designed for multitask with four computers at your necessary, increasing productivity in the office or at home ; You can switch between 4 computers using a manual switch located on the top of the KVM unit.

There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

Features:

HDMI DP KVM Switch 4 Port Dual Monitor Extended Display, UHD 4K@60Hz RGB 4:4:4, USB Hub, Audio, Hotkey, Button Switching, PC Monitor Keyboard Mouse Switcher for 4 Computers 2 Monitors with Cables

• USB 3.0 Dual Monitor KVM Switch HDMI 4 Port: This dual monitor KVM Switch is for you to control them using one set of keyboard, mouse and single or dual monitors to make your work space tidy and efficient, also a premium choice for working from home. Only when your computer supports dual display or multi display, you can use this KVM to achieve 4 PC to share 2 monitors. (Extended, mirrored or spliced display modes depend on your computer's graphics card).

• With Simulation EDID: This KVM dual monitor switch can simulate the EDID of the display, store the resolution and refresh rate of the display, it comes with EDID emulators in each input port, keep PCs always having correct display information. Without EDID, your windows may move around when switching. No longer have to sit and wait for the windows to adjust. Another feature of EDID is the ability to automatically identify the best resolution.

• USB 3.0 KVM Switch Dual Monitor 4k 60hz: Our KVM supporting high resolution max up to 4K@60Hz, and also supports 3D and 1080P@60Hz or other lower resolution (Downward Compatible).supports separate audio and microphone output. Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.

• 3 USB 3.0 Ports: This dual monitor KVM HDMI switcher with 3 USB 3.0 ports which can recognize wired/wireless keyboard mouse, U-disk, printer or other USB devices.USB3.0 has a faster data transfer speed of up to 5Gbps, backward compatible with USB 2.0/1.1 devices while USB2.0 has a data transfer speed of 480Mbps.

• 2 Switching Mode & LED Indicator: 1. Toggle selection on front panel; 2. Wired remote switch. Compatible with a variety of computer systems,such as Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS; also supports HDMI devices without USB signal input like DVR, NVR etc. LED indicate the active computer.

• Important: After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen.We offer 12 months warranty. Tips 1: If you encounter problems when using the KVM connection, please contact us for after-sales support in time.Tips 2: hotkey switching is not supported.

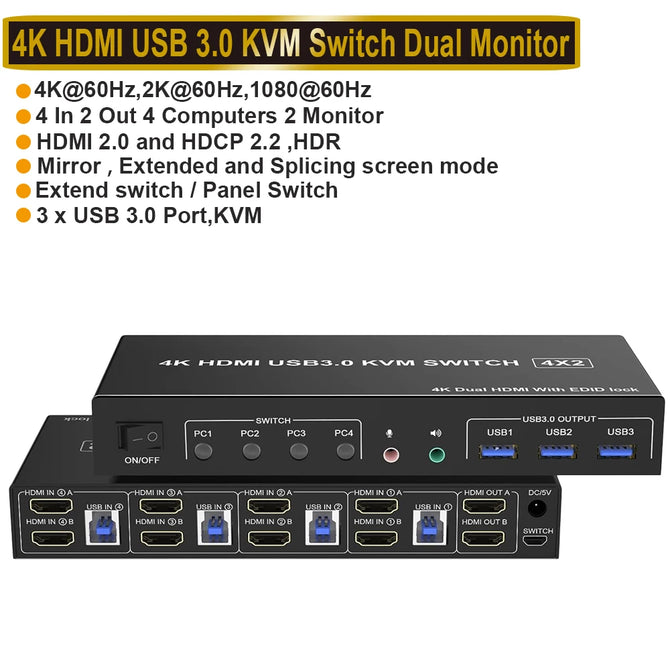

USB 3.0 Dual Monitor 4 Port (HDMI + HDMI ) KVM Switch 4K@60Hz

Does Everything You Need!

• 4 port USB 3.0 dual-monitor HDMI KVM Switch (HDMI + HDMI). Each input source device must be connected to two dual-monitor.

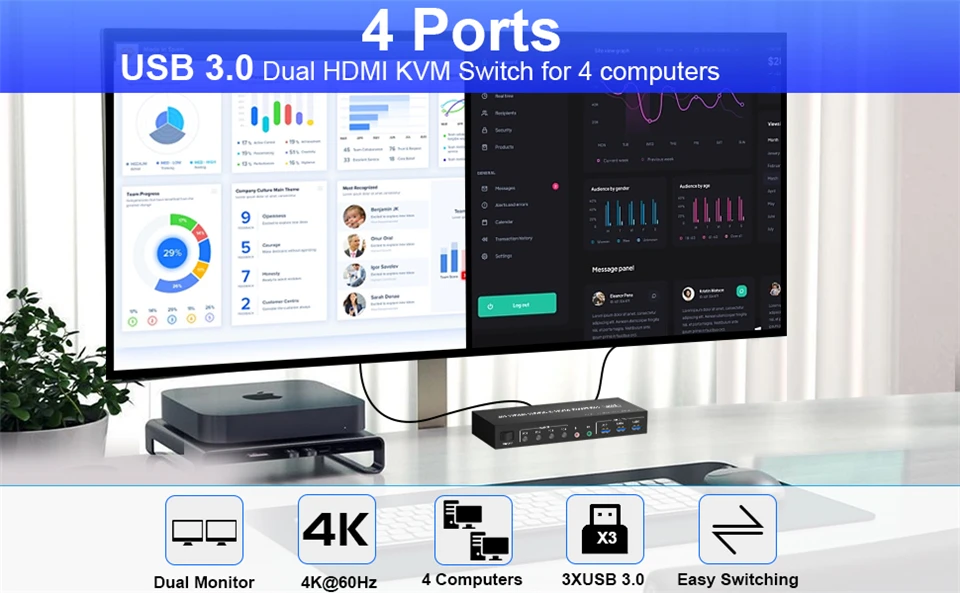

• This kvm switch dual monitor 4 port help you control 4 PCs share 2 monitors by only one set of USB keyboard & mouse.

Product Features

• 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals;

• With extra 3 USB 3.0 and Audio Microphone output;

• Support maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2, with EDID Emulator;Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）;

• Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;

• Advanced switching modes: push button and wired remote;

• The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

• No complicated installation is required, and non-professionals can easily operate it.

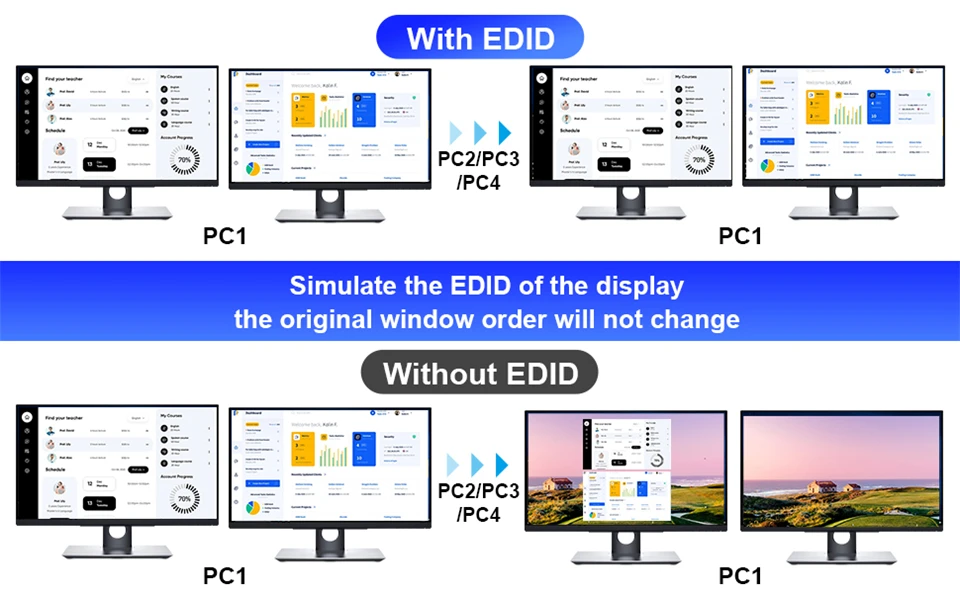

Support EDID lock screen

USB3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between 4 computers, the original window order will not change.

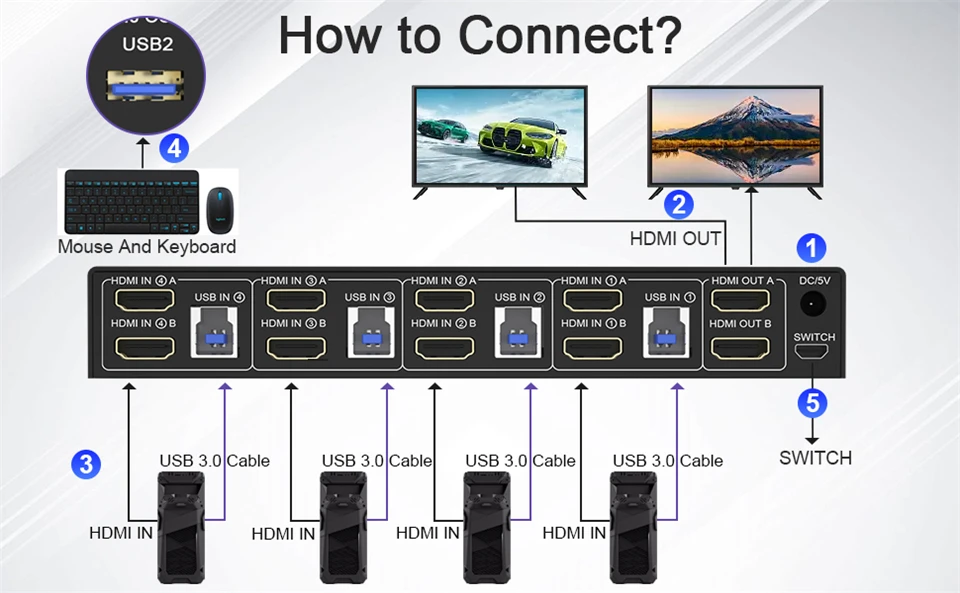

installation steps:

1. Insert the DC/5V adapter into the KVM ;

2. Plug the HDMI cable into the KVM and monitor;(Output)

3. Plug the HDMI cable and USB cable into the KVM and your computer/laptop (HDMI cables are not included)(Input)

HDM1 IN1 A + HDM1IN1 B + USB IN1=PC1

HDM1 IN2 A + HDM1IN2 B + USB IN2=PC2

HDM1 IN3 A + HDM1IN3 B + USB IN2=PC3

HDM1 IN4 A + HDM1IN4 B + USB IN2=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note：

1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 2 HDMI cables connect to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.

3.Please check the HDMI IN A1 & A2 & A3 & A4, HDMI IN B1 & B2 & B3 & B4 and USB IN1 & IN2 & IN3 & IN4 is corresponding, HDMI OUT A, HDMI OUT B is corresponding, NOT support mixed insertion.

4.Note: HDMI cables are not included

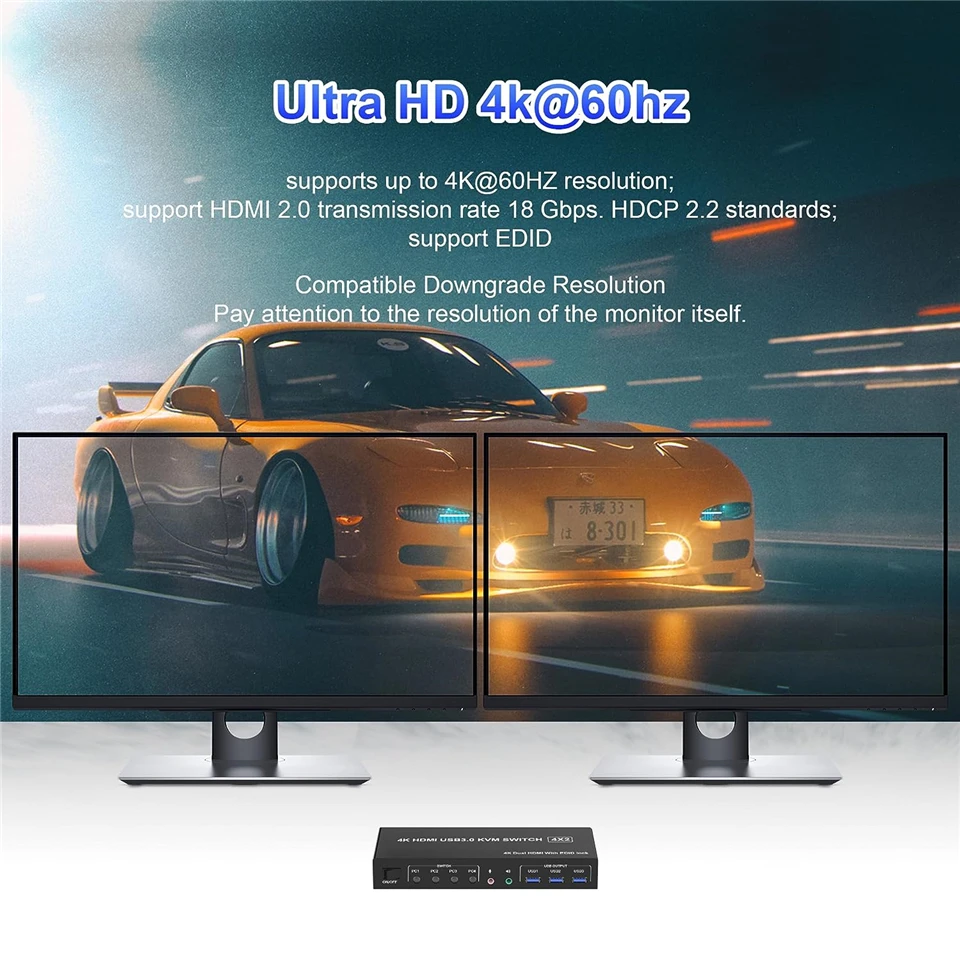

USB 3.0 Dual Monitor KVM Support 4K@60HZ

• Supports high resolution up to 3840*2160@60Hz and downwards.

• Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.

3 Port USB 3.0 with 5Gbps

• Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.

• 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

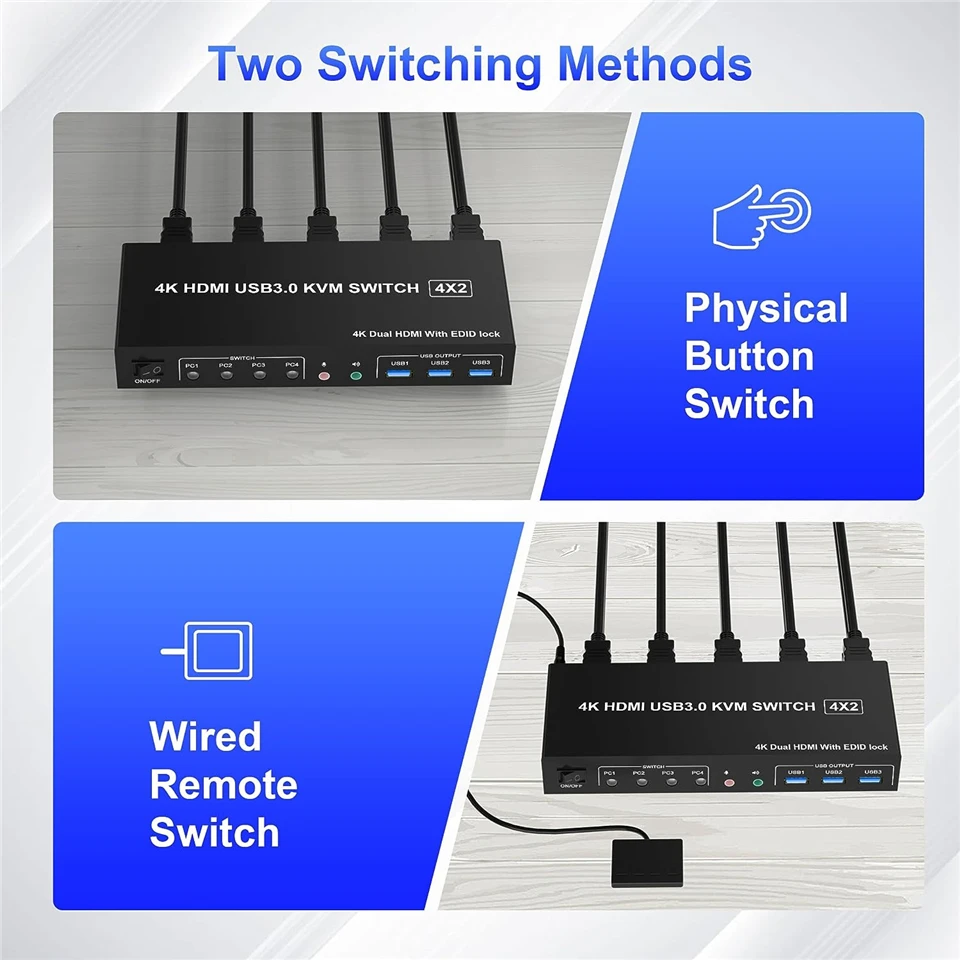

2 monitors 4 computers KVM Support 2 Switching Modes

• Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).

• Please note: This KVM does not support hotkey switching.
