4-in-1 Raspberry Pi 3 Model B+(Plus)  + ABS Case + 5V 3A EU Power Supply (Power Adapter) + Heat Sinks Starter Kits

4-in-1 Raspberry Pi 3 Model B+(Plus) + ABS Case + 5V 3A EU Power Supply (Power Adapter) + Heat Sinks Starter Kits

US$ 57.90 US$ 63.41

: In stock

: 551318

Description:The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range,boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN,...
Description:
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range,boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced, wireless LAN compliance testing,improving both cost and time to market.
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B

Specification:
- Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
- 1GB LPDDR2 SDRAM
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
- Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
- Extended 40-pin GPIO header
- Full-size HDMI
- 4 USB 2.0 ports
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- 4-pole stereo output and composite video port
- Micro SD port for loading your operating system and storing data
- 5V/2.5A DC power input
- Power-over-Ethernet (PoE) support (requires separate PoE HAT)

Power Parameter:
Input Voltage: 100~240V AC
Output Voltage: 5V DC, 3A max
Frequency: 50/ 60Hz
Cable Length: 90cm






General
Brand Geekworm
Model Kit-B
Quantity 1 set
Material PCB + electronic components
Specification
Chipset N/A
English Manual / Spec No
Download Link www.raspberrypiwiki.com/index.php/Raspberry_Pi_3_Model_B_Plus
Dimensions & Weight
Dimensions 7.09 in x 5.12 in x 1.97 in (18 cm x 13 cm x 5 cm)
Weight 8.82 oz (250 g)

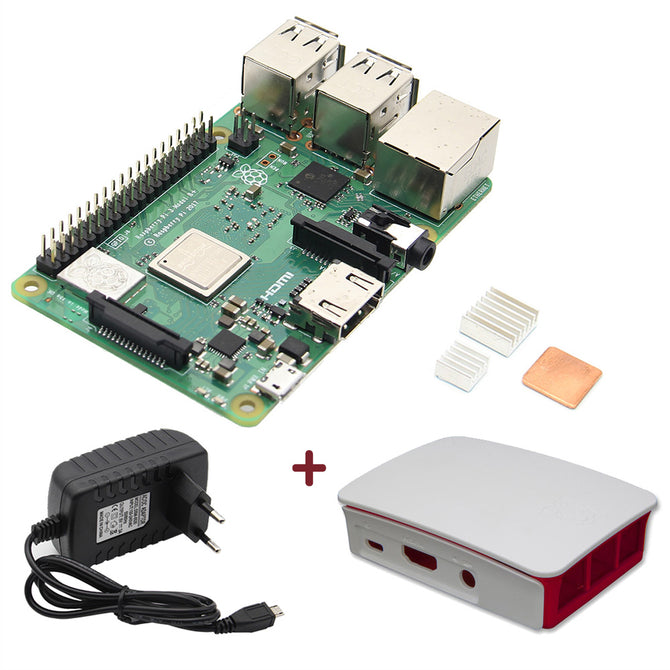

Packing List
1 x Raspberry pi 3 Model B+
1 x ABS case
1 x Power Supply (EU plug, Cable length: about 100cm)
3 x Heat sinks (2*Aluminum + 1*copper heat sink)
