3A Adjustable DC-DC LM2596 LM2596S input 4V-35V Output 1.23V-30V dc-dc Step-down Power Supply Regulator module MP1584EN MINI360

3A Adjustable DC-DC LM2596 LM2596S input 4V-35V Output 1.23V-30V dc-dc Step-down Power Supply Regulator module MP1584EN MINI360

US$ 0.62 US$ 4.00

Availability: In stock

SKU: ai204654rs

MINI360: 100% brand new and high quality. Module Properties: Non-isolated step-down module (BUCK) Rectification: Synchronous rectification Input voltage: DC 4.75V-23V Output voltage: DC 1.0V-17V (Adjustable, Output < Input) Output current:...

Quantity

Add to wishlist

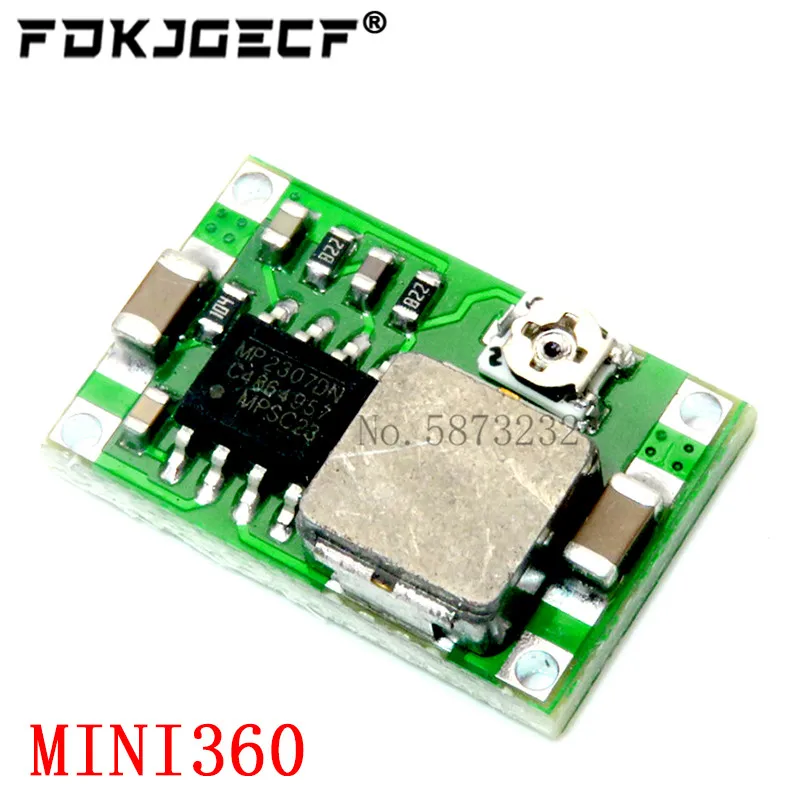

MINI360:

100% brand new and high quality.

Module Properties: Non-isolated step-down module (BUCK)

Rectification: Synchronous rectification

Input voltage: DC 4.75V-23V

Output voltage: DC 1.0V-17V (Adjustable, Output < Input)

Output current: Rated current 1.8A (3A MAX, can not be prolonged)

Conversion efficiency:96%(highest)

Switching Frequency: 340KHz.

Output ripple:30mV(no-load)

Load regulation:±0.5%

Voltage regulation:±2.5%

Operating Temperature: Industrial (-40 ~ +85)

Short circuit protection: No(Please do not short-circuit)

Input Reverse protection: No(Can not be reversed)

22mm*17mm*4mm(L*W*H)/0.87'' * 0.67'' * 0.16'' approx Supper mini board

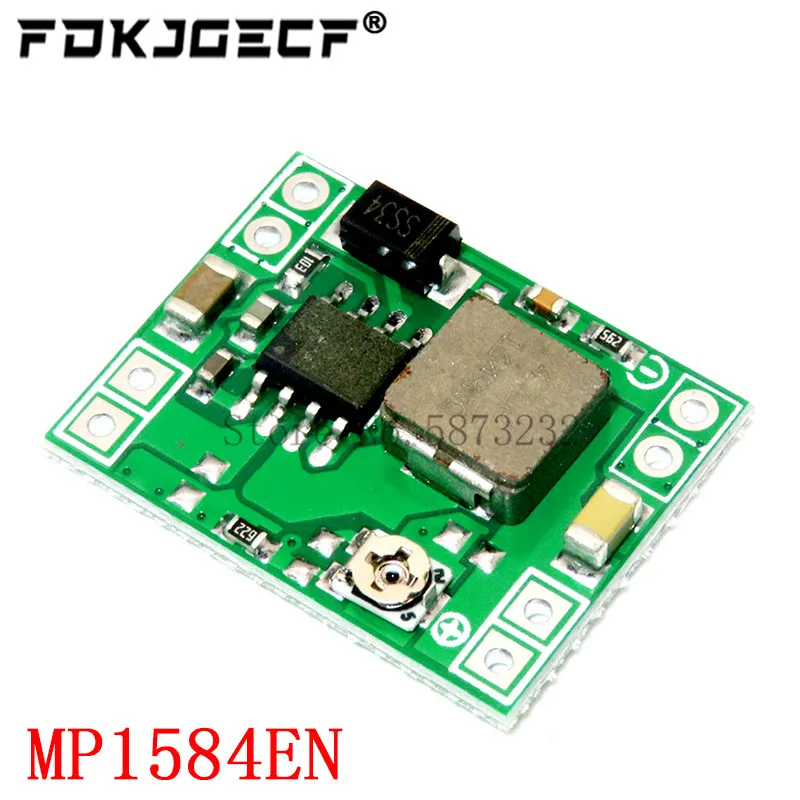

MP1584EN:

Model Name: Ultra-small DC-DC step-down module

Input voltage: 4.5-28V

Output Voltage: 0.8-20V

Output current: rated current 3A(MAX).

Switching Frequency: 1.5MHz (highest), typical 1MHz

Output Ripple: < 30mV

Efficiency: 96% (max)

Operating temperature: -40 Celsius to +85 Celsius

Size: 22mm*17mm*4mm

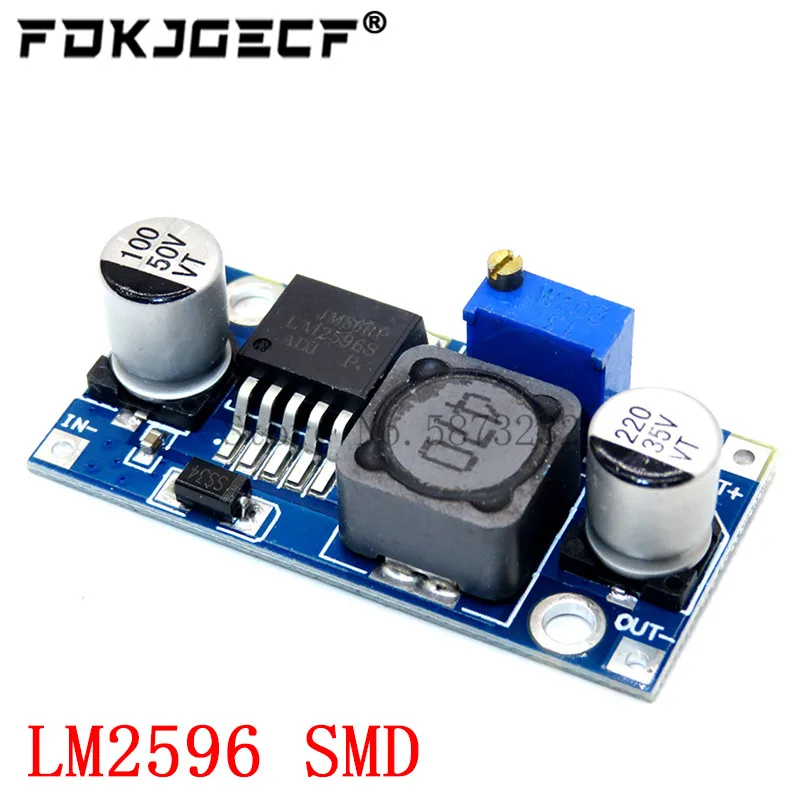

LM2596 SMD:

Name : LM2596 DC-DC Buck module
Input voltage :4V ~ 35V
The output voltage : 1.23V ~ 30V
Output Current :3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: <30mV
Switching frequency: 150KHz
Working temperature: -forty Five~ +85
Size :43mm * 21mm * 14mm(Long*Width*Hight)

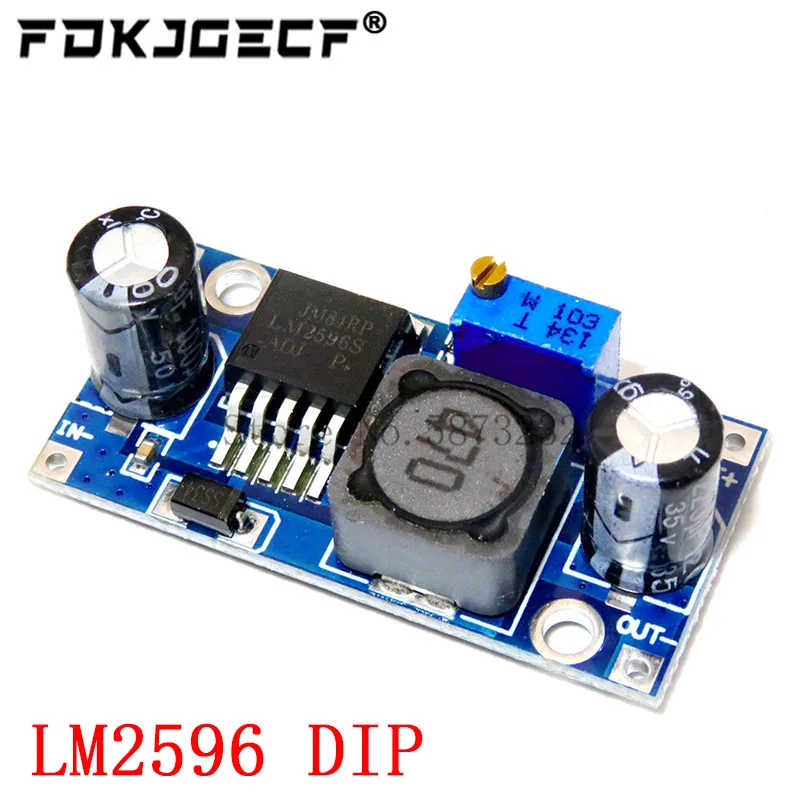

LM2596 DIP:

Model/Name : LM2596S DC-DCBuck module

The output voltage : 1.25V ~ 35V
Input voltage : 3.2V ~ 40V
Output Current : 3A( Max)
Conversion efficiency : 92%( Highest )
Output ripple : <30mV
Switching frequency : 65KHz
Working temperature : -forty Five~ +85
Size : 43mm * 21mm * 14mm( Long*Width*High )

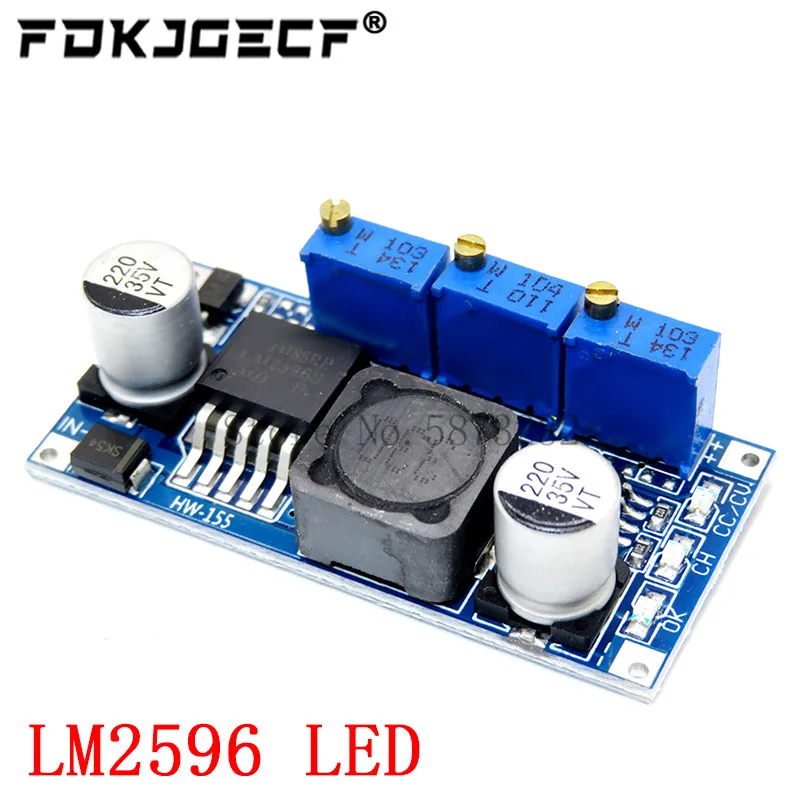

LM2596 LED:

the Module Properties: non - isolated constant current and voltage of the Module
Rectification: non - synchronous Rectification
Input voltage: 7 v - 35 v
the Output voltage: 1.25 V - 30 V
the Output current: adjustable maximum 3 a
Conversion efficiency: 92% (the highest)
Switching frequency, 150 KHZ
the Output ripple: 50 mv (Max) 20 m bandwidth
the Load Regulation: plus or minus 0.5%
Voltage Regulation: plus or minus 2.5%
Operating Temperature: - 40 ° to + 85 °

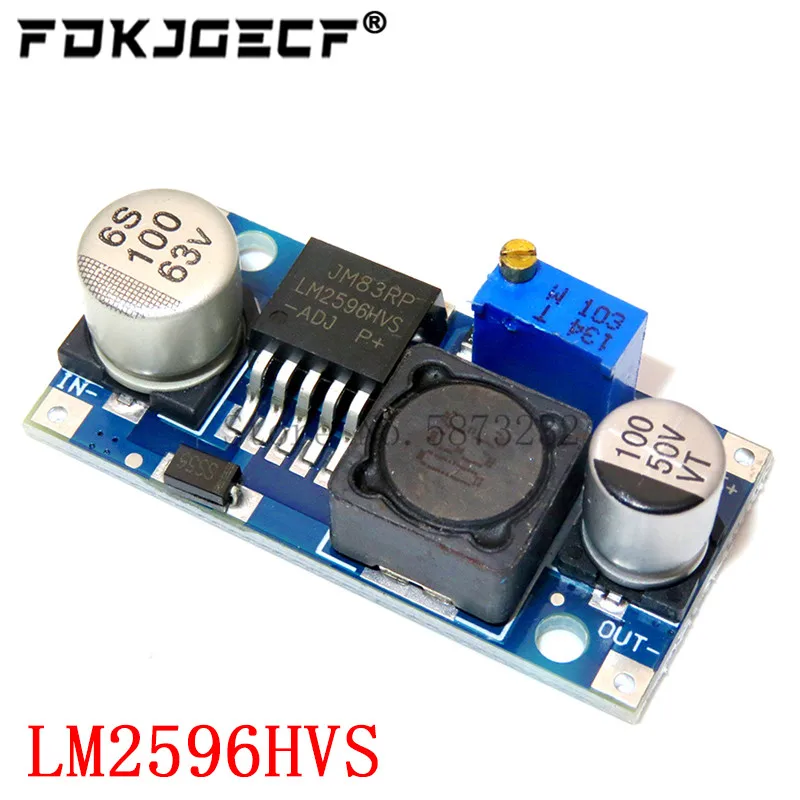

LM2596 HVS:

Type /name:LM2596HVS DC-DC step-down module
Input Voltage:4.5V ~ 53V
Output Voltage:3V ~ 40V
Output Current:3A (max)
Conversion efficiency:92%(the highest)
Output Ripple:<30mV
Switching frequency:150KHz
Operating Temperature:-45 ° ~ +85 °
Size:43mm * 21mm * 14mm (L * W* H)

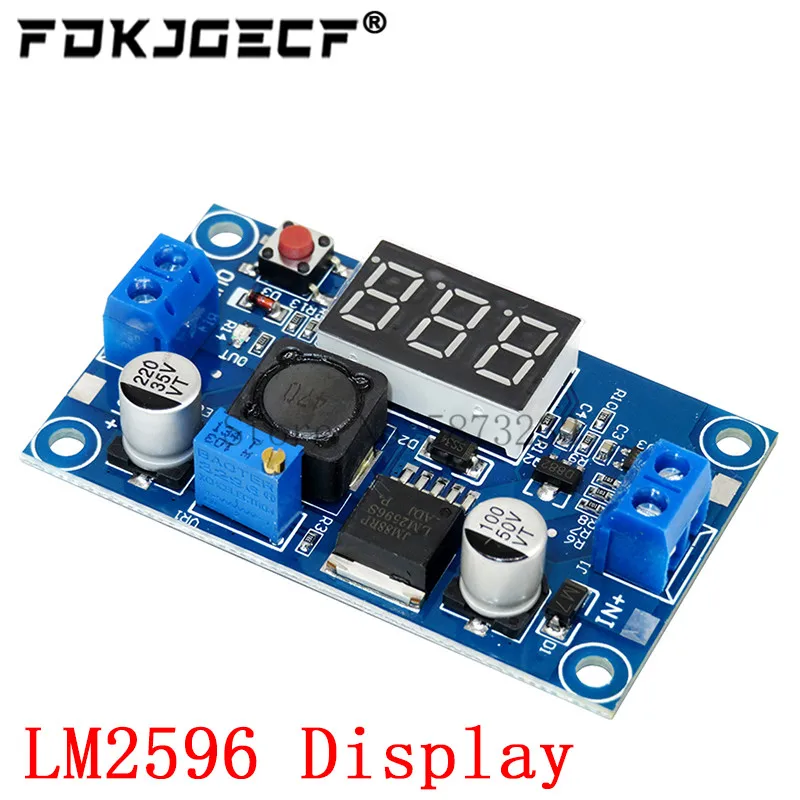

LM2596 Display:

Module Model:LM2596 Buck Converter + Voltmeter
Cutting Size: 66mm x 35mm
Input Voltage: DC 4.0~40V
Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)
Output Current: 2A(normal and stable), 3A Max.
Ripple Frequency: About 150Khz
Ripple Peak: About 100mV
Display Color: Red
Voltage Meter Error: ±0.1V
Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
IN+: Input Postive
IN-: Input Negative
Out+: Output Postive
Out-: Ouput Negative
