3.8 inch TFT LCD Display Shield Kit Touch Screen Onboard MicroSD Card Module + Pen + TF Card for Mega2560 Compatible for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Description

NOTE: Due to the characteristics of the resistance touch screen, the area within 3mm from the edge of the screen may not be effectively touched. If you buy it, that means you know this exactly and accept it, please know.

This kit can achieve rich projects such as character display, image reading and display, touch sketchpad without additional modules.

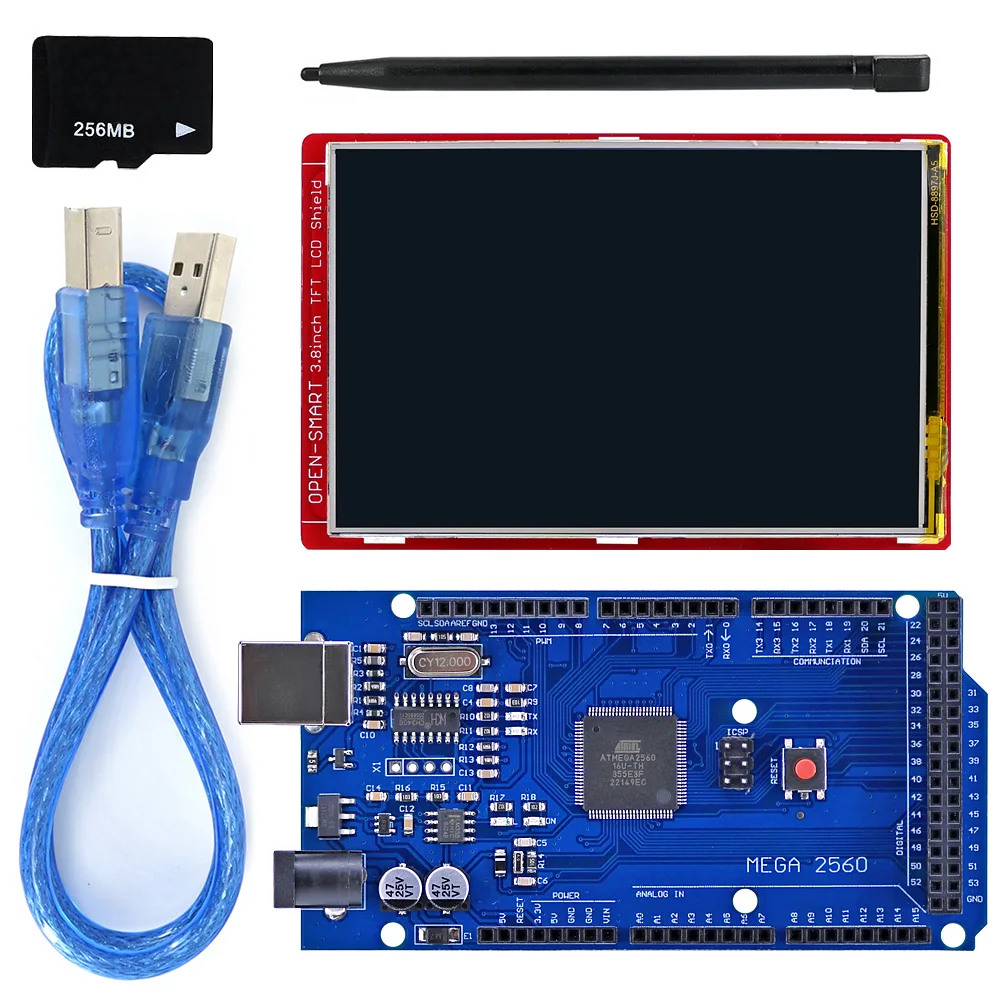

The kit includes a MEGA2560 board which is compatible with Arduino mega2560 program, expansion shields, IDE.

The kit includes a 3.8 inch TFT touch screen expansion board using standard Arduino Shield interface and it has good compatibility.

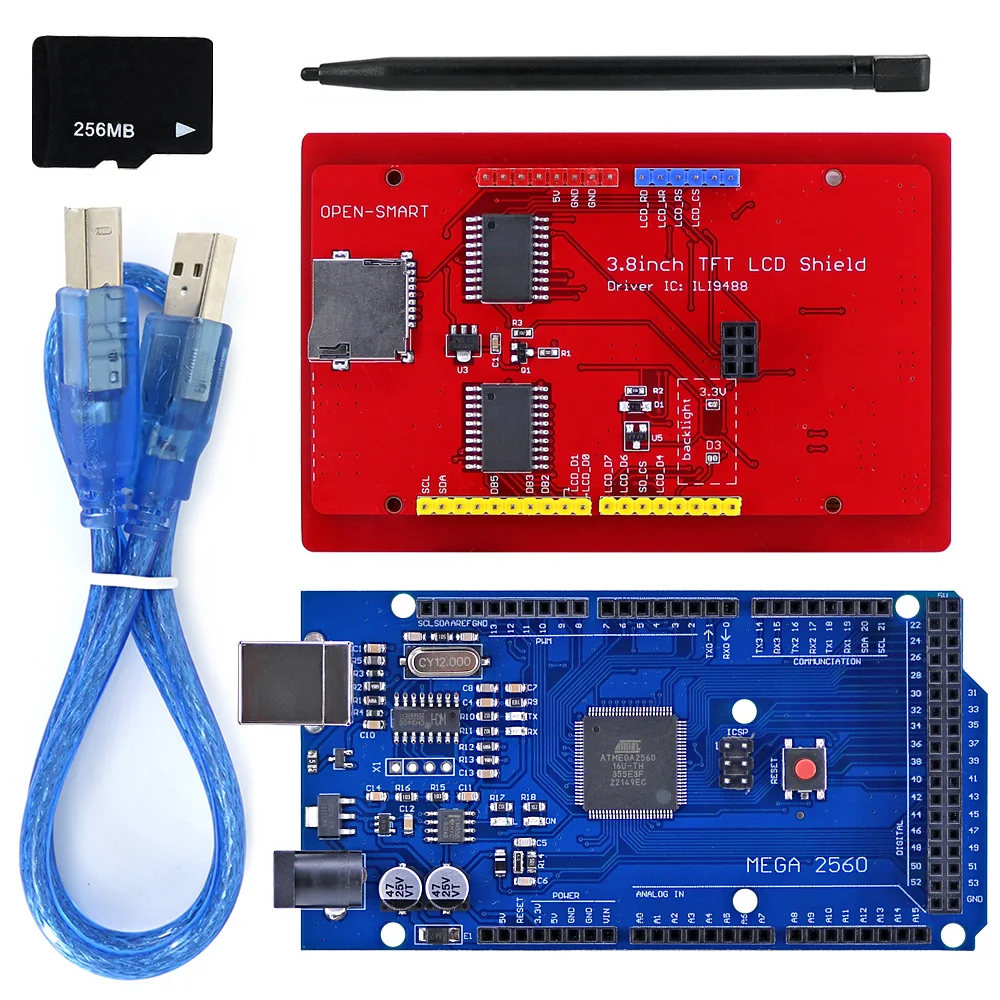

It integrates a 3.8 inch touch screen, TF card holder, level conversion circuit, and the secondary development is easy.

With GPRS module, you can design your Arduino phone.

With NFC reader module, you can create access control systems with the photos show.

With voltage and current sensor, you can make oscilloscope.

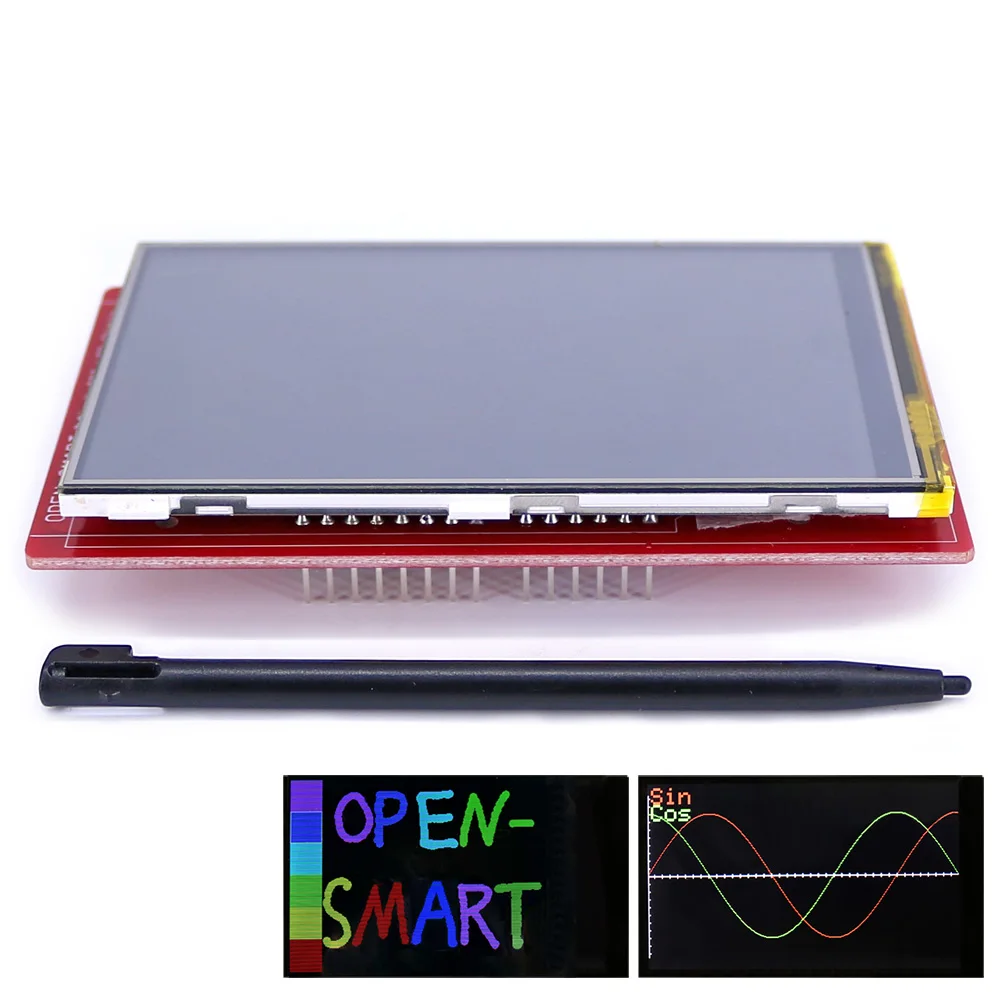

- Can use it directly to display characters, graphics and BMP format images. And touch controlling is available;

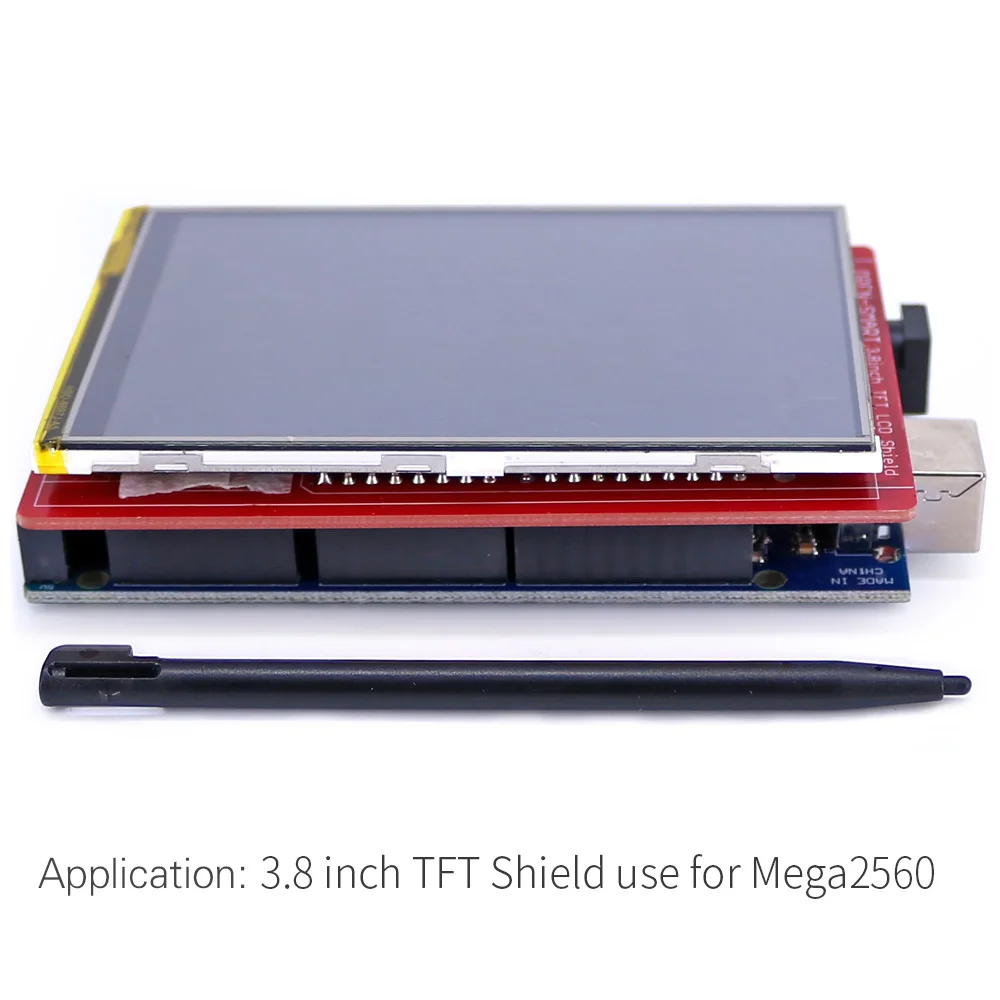

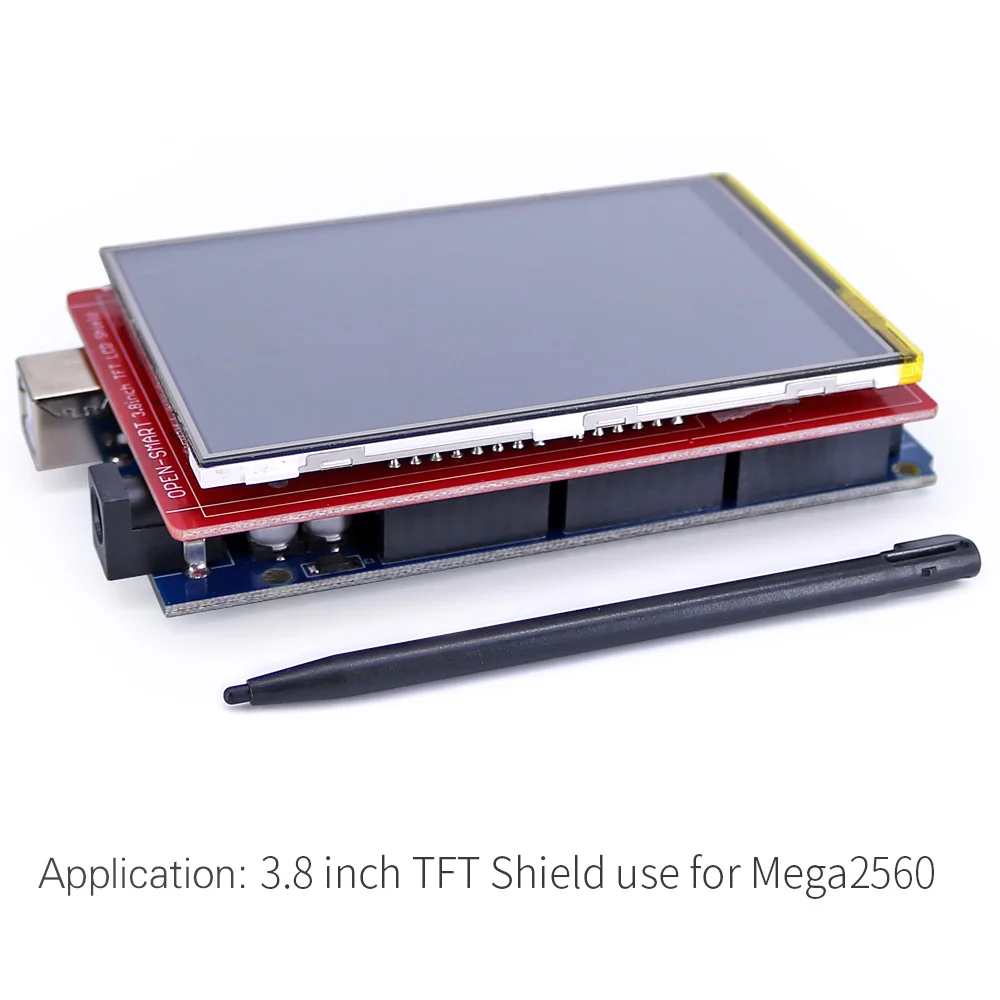

- Compatibility: As the SD card is connected to SPI pins of ICSP  interface, it is compatible for Arduino ATmega328P /              ATmega2560 board.

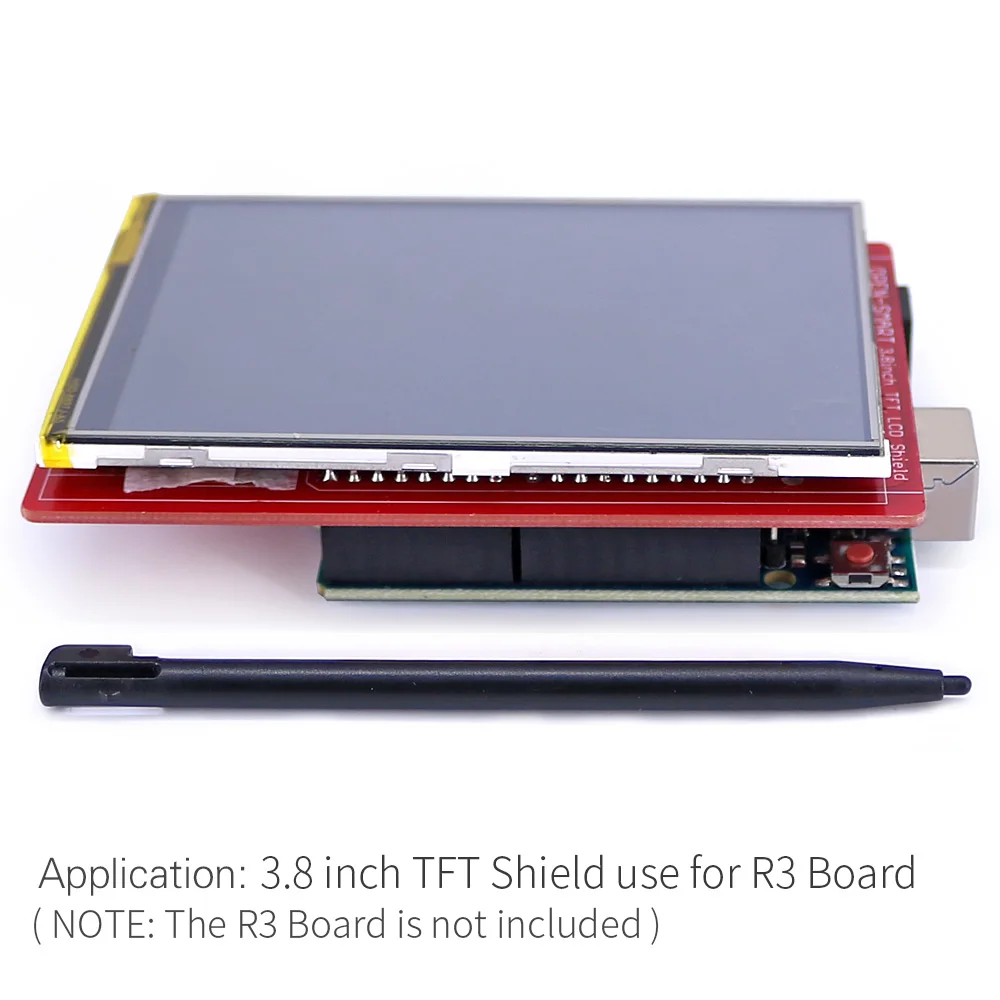

   And it also compatible for OPEN-SMART ONE R3 board.

- Touch screen type: resistive touchscreen.

- Touch Pen: length is 9cm;

- Resolution: 320x480;

- Display size: 3.8 inch;

- Operating voltage: 5V;

- Logic level: 5V / 3.3V;

- On-board 3.3V / 300mA regulator circuit;

- Operating current: the maximum is 150mA

- Use the A0 ~ A3 pins, D4 ~ D13 pins. And I2C interface, D0 / D1 / D2 / D3 is available, please refer to the product schematics for the details.

- Onboard Micro SD slot, support Micro SD / TF Card;

- Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor.

Dimensions :

Photos

Part List(Schematics and program can be sent via e-mail,Please contact us)
