2WD Robot Car Chassis 2 Motors Magician Robotics Platform for Arduino
US$ 17.57
US$ 20.77
: In stock
: 250312
Brand N/A Model N/A Quantity 1 Color Yellow Material high quality plastic Features Mechanical structure is simple, very easy to install . The car comes with tachometer encoder. With four...
Share:
| Brand | N/A |
| Model | N/A |
| Quantity | 1 |
| Color | Yellow |
| Material | high quality plastic |
| Features | Mechanical structure is simple, very easy to install . The car comes with tachometer encoder. With four on the 5th battery compartment , convenient to the entire system power supply . At the same time with a switch for start and stop . No add-on is very convenient , the whole system is highly integrated. Can be used for distance measurement , velocity |
| Specification | Motor: Voltage DC 3V DC 5V DC 6V Current 100 MA 100MA 120MA Reduction rate 48:1 RPM (With tire) 100 190 240 Tire Diameter 66mm Car Speed(M/minute) 20 39 48 Motor Weight (g) 50 Motor Size 70mm*22mm*18mm Noise <65dB |
| Application | robot car chassis |
| English Manual/Spec | no |
| Other | Note: motor power supply is 3V~6V. All the parameter above is tested without load |

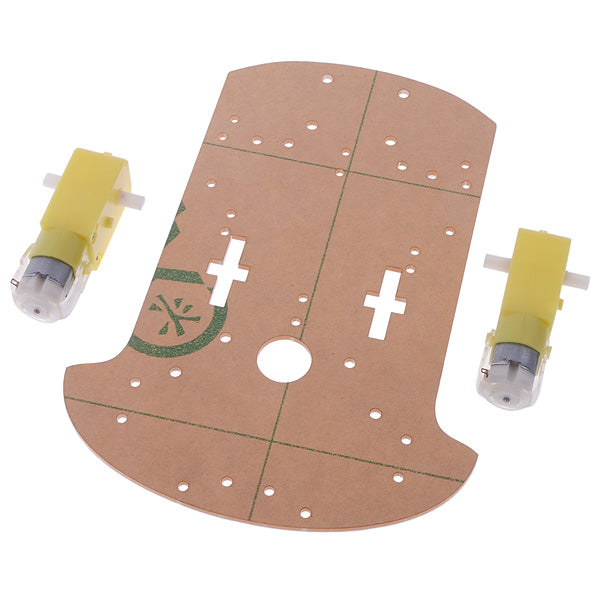

| Packing List | 1 x Car chassis 2 x Gear Motor (1:48) 1 x Universal wheel 2 x Car tire 2 x Speed encoder 4 x Fasteners 1 x Battery Box 1 x Power button 14 x Screw 10 x Nut |
