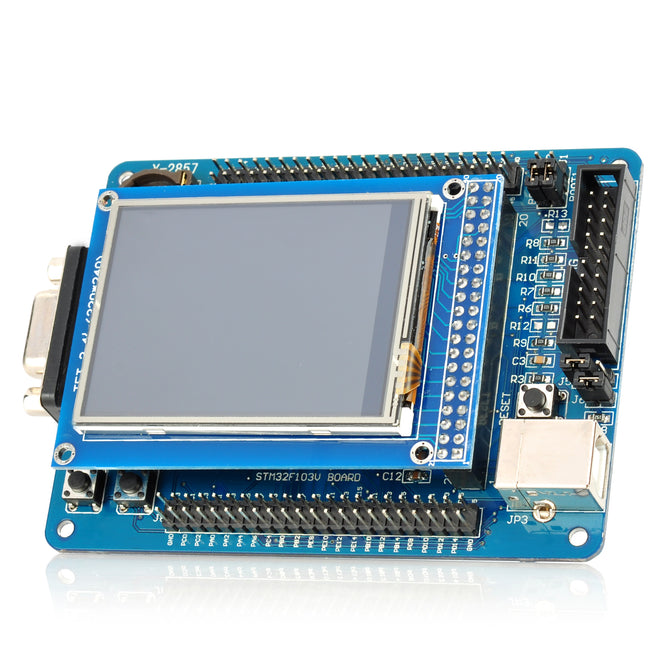

2.4" TFT Touch Screen ARM Cortex-M3 STM32F103VET6 STM32 SCM Development Board

US$ 34.60 US$ 37.80

Availability: In stock

SKU: 149015

Model I073109 Quantity 1 Color Blue Material PCB Features CPU: STM32F103VET6 (ARM Cortex-M3), LQFP100; FLASH: 512K Bytes, SRAM: 64K Bytes; 2.4" TFT touch screen (320 x 240); With JTAG interface...

Add to wishlist

Tweet
Facebook
Google+
Linkedin
Pinterest

Model	I073109
Quantity	1
Color	Blue
Material	PCB
Features	CPU: STM32F103VET6 (ARM Cortex-M3), LQFP100; FLASH: 512K Bytes, SRAM: 64K Bytes; 2.4" TFT touch screen (320 x 240); With JTAG interface and reset button; With 32.768KHz and 8MHz crystal oscillators; Built-in DC 5V to DC 3.3V AMS1117-3.3 chip; With RS232 serial port, UART1 and UART2 need to set jumper; Supports USB or JLink Power On power supply methods.
Application	For DIY project
Packing List	1 x STM32F103VET6 development board
	1 x 2.4" TFT touch screen board
	1 x Software CD
