1Set Infrared Transceiver Infrared Transmitter IR Emitter Module + IR Receiver Module Infrared Receiver 38KHz 940nm for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Description

Note: If you want to place the bulk order that the stock is not enough, please contact with us.

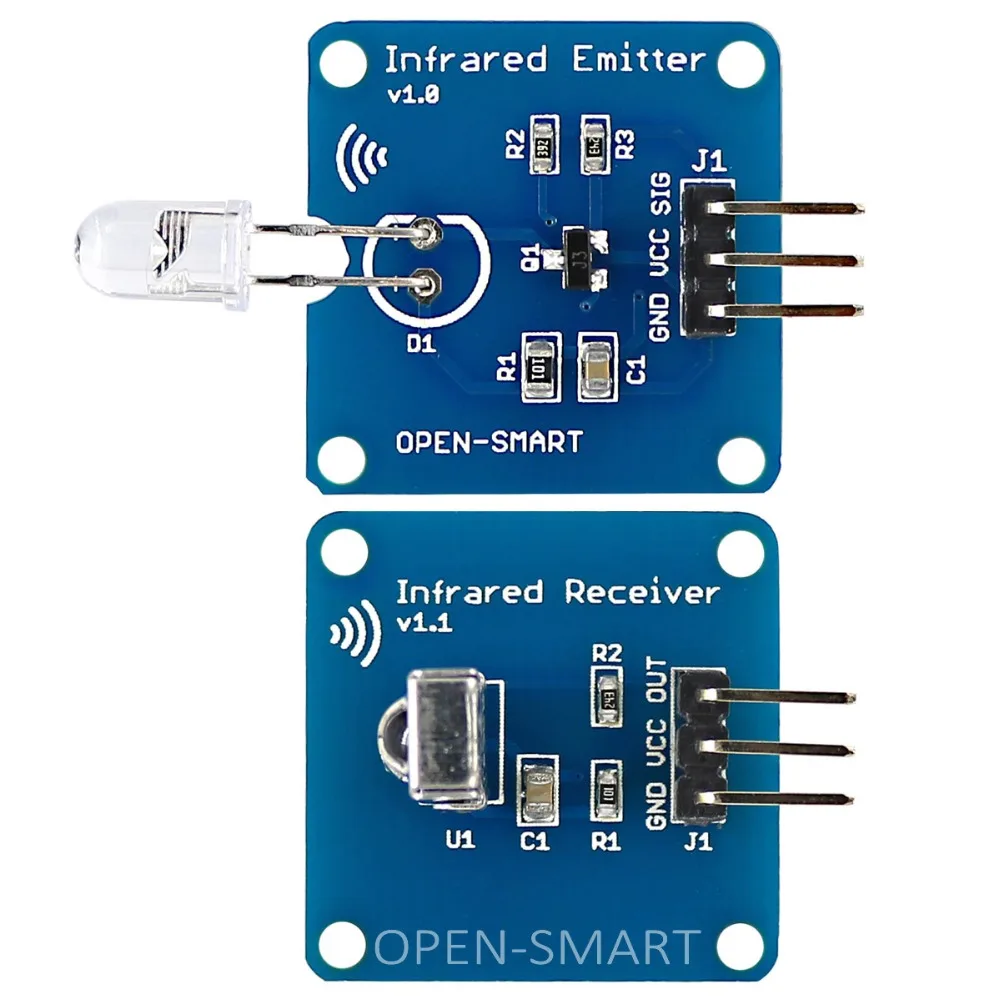

Note: 1 Set = 1 x Infrared Emitter + 1 x Infrared Receiver

Note: This set of Infrared Transceiver Kit is paired, with use the board that has upload the NEC protocol program, The remote control distance can reach about 6 meters, and with the angle of the transmitting and receiving module aligned, the remote control distance may reach up to 8 meters.

The Infrared Emitter (Link)is based on the infrared emission infrared emission control module 940, the infrared signal emitted by the transmitter tube 940nm wavelength, the signal can be acquired infrared receiver module is a few meters away and demodulation, encoding and decoding process can be achieved with the remote control function.

Features:

(1). Level control interface, power supply for 5V or 3.3V;

(2). High drive currents needed to pull small;

(3). In accordance with the direction of the tube can be launched manually adjust the actual application requirements;

(4). 4 M2 screws positioning holes for easy installation.

The Infrared Receiver (Link)is based on HL-A838 integrated infrared receiver modules, IR transmitter module can receive incoming 38KHz modulated infrared signal, and demodulated into logic level,

When it receives the modulated infrared signal then output low level, otherwise output high level. IR remote control can be completed by using application of codec.

Features:

(1). Funny and easy to use;

(2). Low-power, wide-angle and long distance reception;

(3). Supply voltage can be 3.3V~5.5V;

(4). Output matching TTL, CMOS level;

(5). 4 M2 screws positioning holes for easy installation.

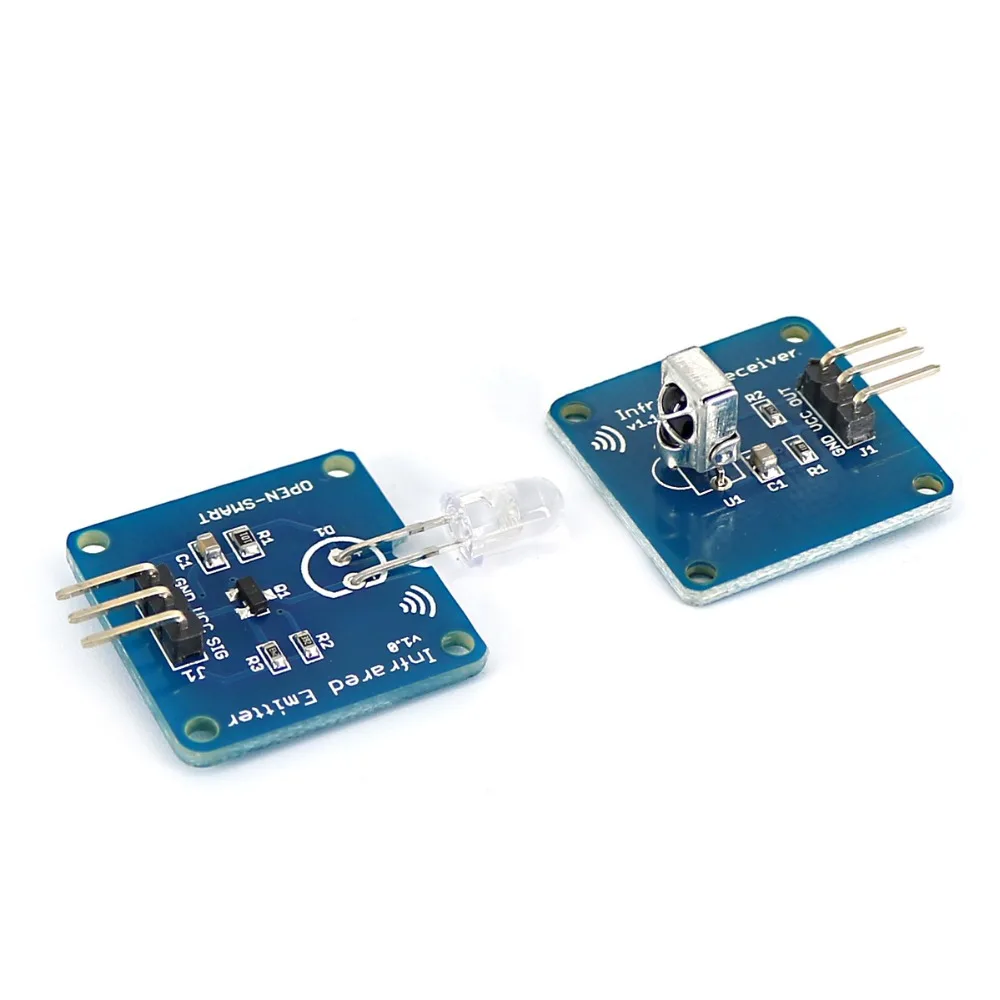

Photos

Part List (Schematics and program can be sent,Please contact us)

1 x Infrared Emitter

1 x Infrared Receiver
