1PCS ESP32 Development Board WiFi+Bluetooth Ultra-Low Power Consumption Dual Core ESP-32 ESP-32S ESP 32 Similar ESP8266
: In stock
:
Introduction (1) Product description:
Module main body ESP-Wroom-32 module, uses the USB-turning port chip CP2102/CH9102/CH340 to expand the Micro-USB/Type-C interface, you can directly use USB to connect to the computer to debug it. The data transmission is fast and stable. There are power indicators (red lights) and working status indicators (blue lights) on it, which can always understand the state of the module. There are two touch keys, one reset, and the other enable module to enter the download program mode. In addition, the excrement on both sides of the development board can facilitate the connection of developers.
The module has a powerful Bluetooth and WiFi function. It is a Bluetooth and WiFi development board. In addition, the module supports the development environment such as Arduino and Nodemcu, which expands the scope of obtaining its resources and greatly improves the easy degree of learning and development. Of course, he can also be widely used in the Internet of Things occasions, such as home automation, wireless industry control, wireless positioning system signal, etc.
Introduction (2) Main features:

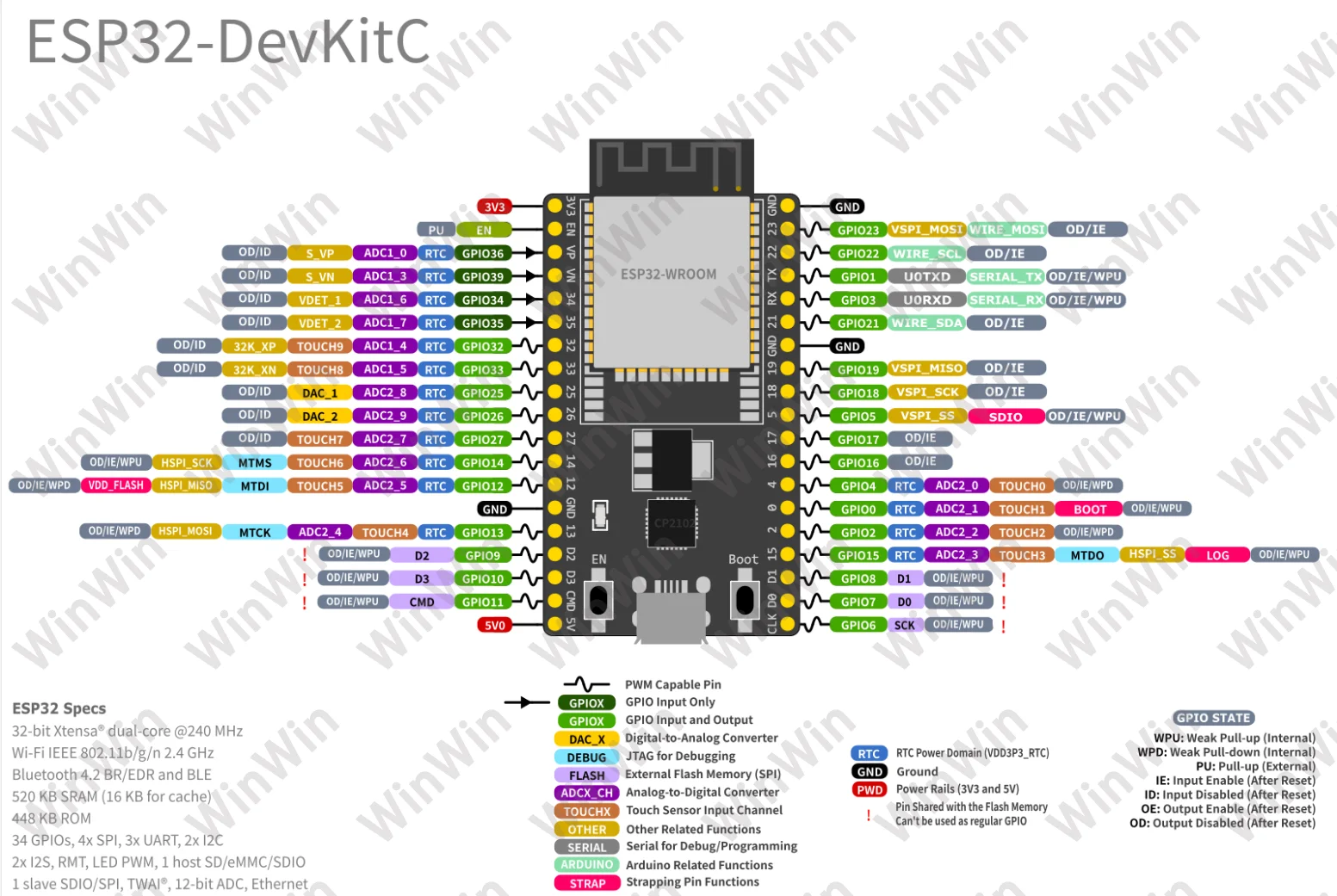

The module is the ESP-Wroom-32 development board. The ESP-Wroom-32 parameter feature is the parameter characteristics of the module.
■ 802.11b/g/wifi+BT module;
■ Low -power dual -core 32 -bit CPU can be used as application processor;
■ The main frequency is as high as 240MHz, and the computing power is as high as 600DMIPS;
■ Built -in 520KB SRAM;
■ Support UART/SPI/L2C/PWM/DAC/ADC and other interfaces;
■ Support OpenOCD debugging interface;
■ Support a variety of dormant mode. When the deep dormant, the current is as low as 6.5UA;
■ Embedded LWIP and FRERTOS;
■ Support STA/AP/STA+AP mode;
■ Support Smart Config/Airkiss one -click matching network;
■ GM instruction, easy to get started;
