130 dc motor Small DC motor 3V-6V Miniature motor four-wheel motor small
US$ 3.02
: In stock
:
Small DC motor 3 Runs on as little as 3 Volts, . Current at 5V: 400 mA No Load, 1.7A Stalled (Do not stall for more than a few...
Share:
Small DC motor 3
Runs on as little as 3 Volts, .
Current at 5V: 400 mA No Load, 1.7A Stalled (Do not stall for more than a few seconds at 3V). The RoboRED, when running from an external power supply, can supply 5V at 2A which can run one of these motors. Otherwise a separate 3V supply is needed. Runs well from two AA batteries.
Can be speed controlled with PWM (Pulse Width Modulation) by for Arduino. A power transistor must be used to control the motor; for Arduino pins do not have enough power to run this motor directly.

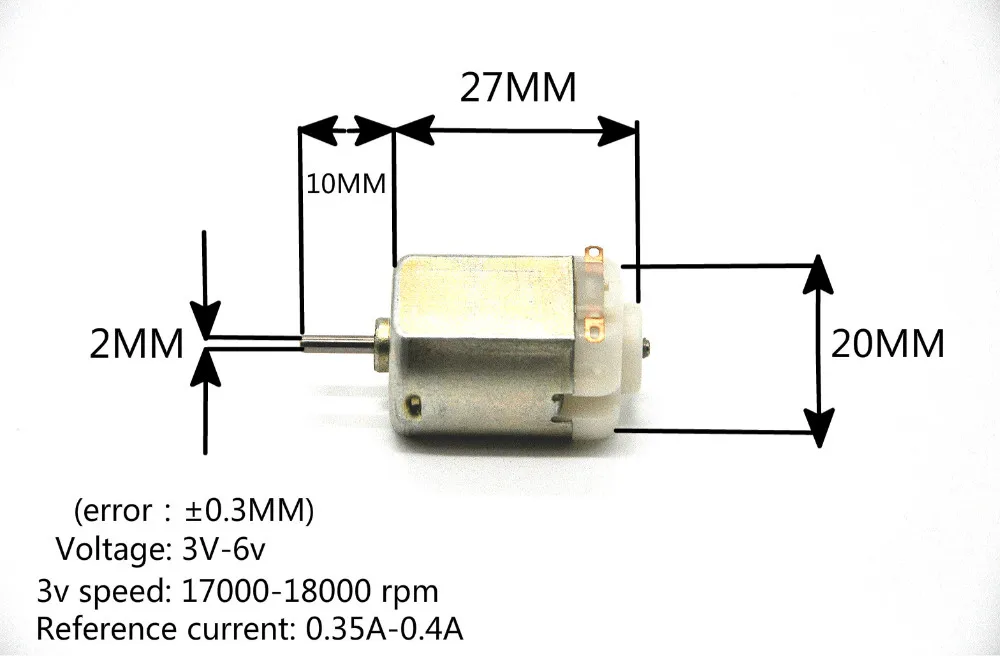

Size: 20 * 15 * 25
Shaft length: 8mm
Shaft Diameter: 2mm
Voltage: 3V-6V
Reference current: 0.35-0.4A
