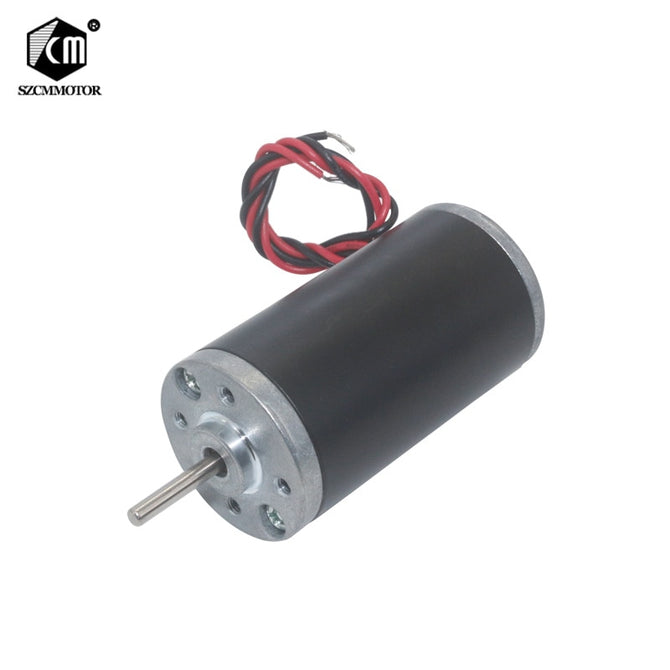

12V 24V 3500RPM 5000RPM 6000RPM 8000RPM Permanent Magnet DC Motor High Powerful Micro Carbon Brush Motor CW/CCW High Speed Motor

US$ 12.10 US$ 15.00

: In stock

:

DC12-24V 3500rpm-8000rpm 31ZY Large Torque Permanent Magnetic Carbon Brushed Motors    Specification: Motor Diameter: about 31mm Motor Body Length: about 57mm Output Shaft Diameter: about 3mm Output Shaft Length: about...
Speed(RPM)

DC12-24V 3500rpm-8000rpm 31ZY Large Torque Permanent Magnetic Carbon Brushed Motors

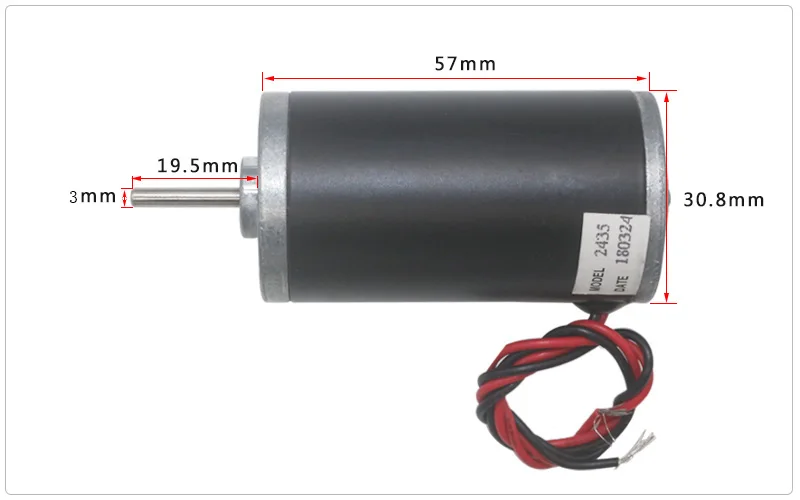

   Specification:

  • Motor Diameter: about 31mm
  • Motor Body Length: about 57mm
  • Output Shaft Diameter: about 3mm
  • Output Shaft Length: about 19mm
  • Weight: about 160g
  • CW: red wire-Power (+),black wire-Power(-)
  • CCW: red wire-Power(-),black wire-Power(-)
  • Error: ±10%

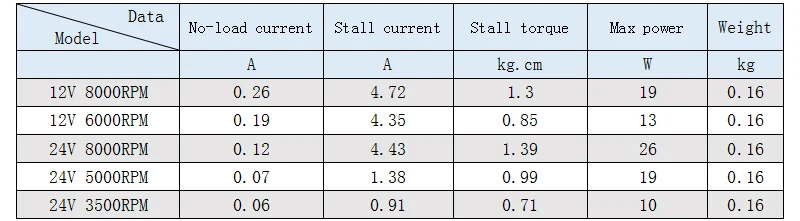

   Test Datasheet:

数据表

     Remark:Rated voltage 12V then voltage range @0-12V,Rated voltage 24V then voltage range @0-24V,

     reduce voltage then reduce speed.

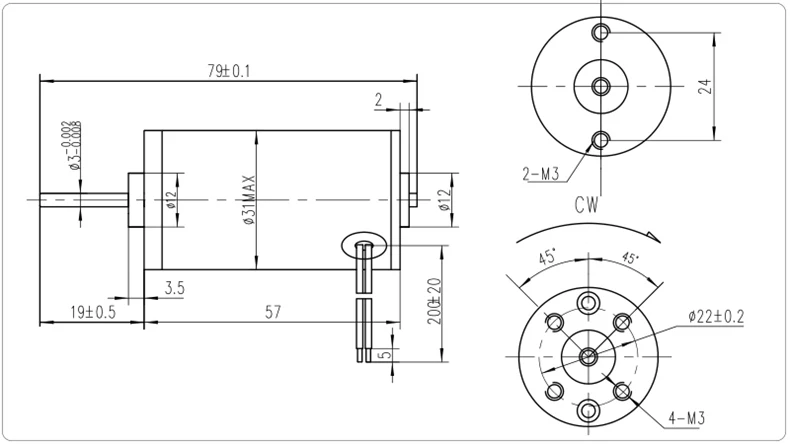

  Dimensions(unit:mm):

  size of gear motor

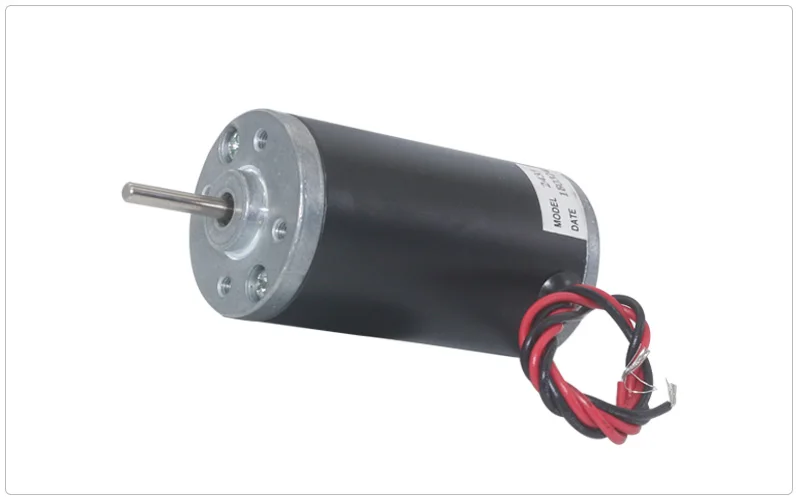

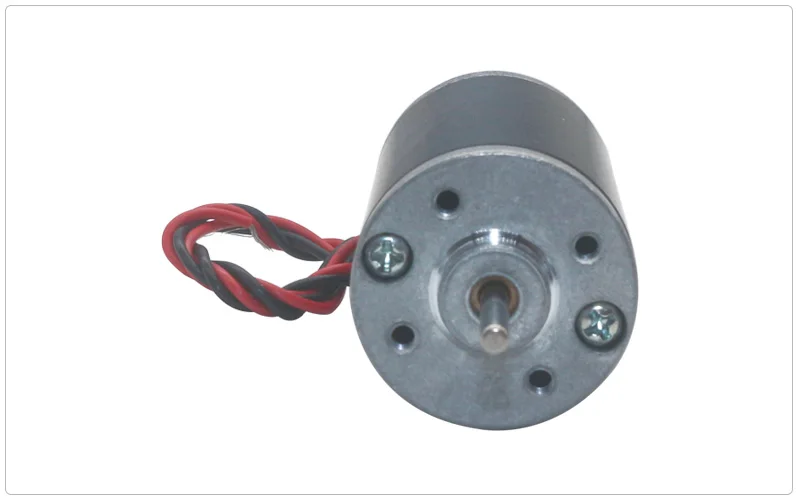

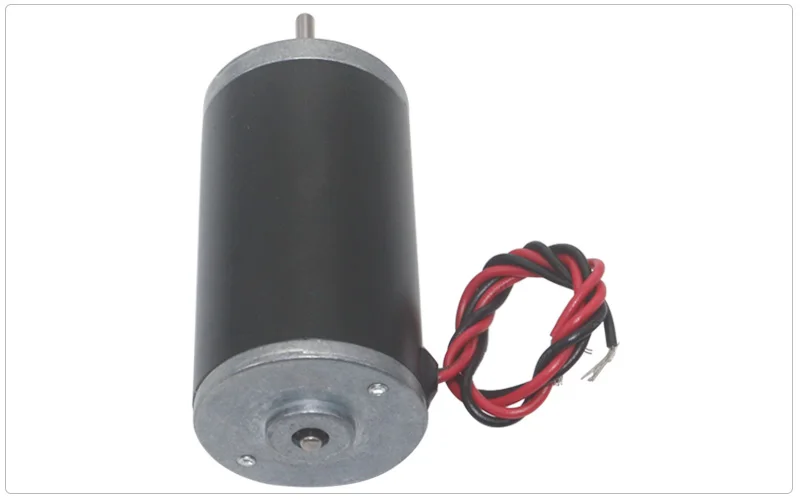

Product show:

31zy



31ZY_0231ZY_0331ZY_0431ZY_0531ZY_06

Applications:

23Applications

payment1

our service2

*General Service:
*Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 2 days, bulk or customized order about 15 days.
*Payment Choice:T/T, Western Union,, L/C, etc, easy for your business.
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.

*Customization Service:
  Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be       tailor-made according to customer’s requirements.

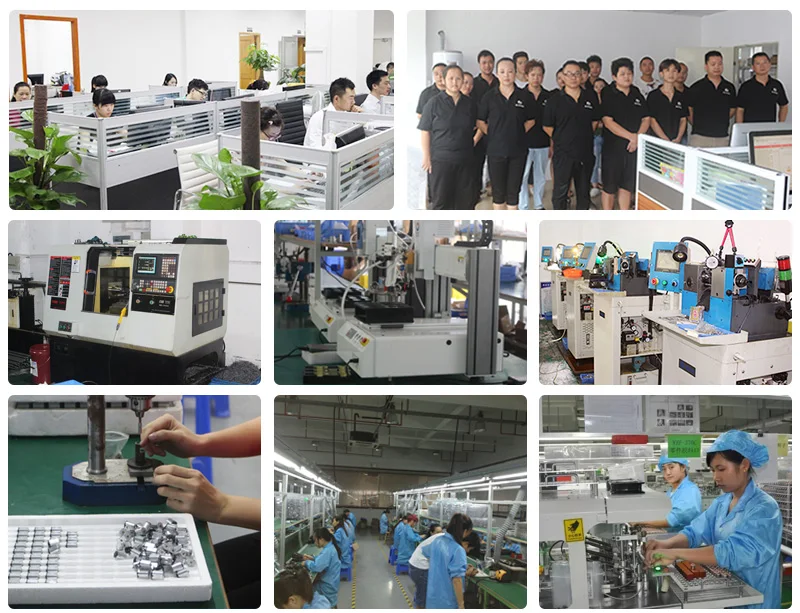

our factory3
