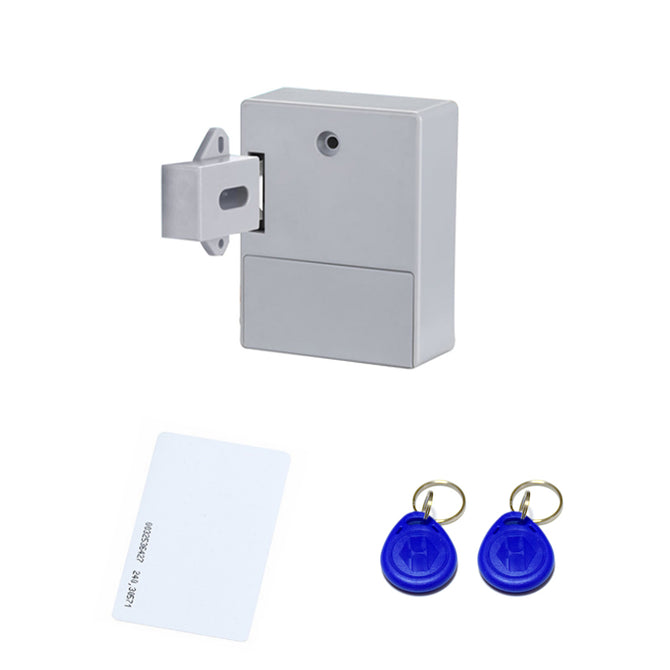

125KHz EM RFID ID card cabinet lock Invisible Hidden mini electric drawer cabinet Lock

Specification:

Power : 2x AA battery (Not included )

Card type : 125KHz ID EM card

Work temperature : -30~80°C

Work humidity : 95%RH

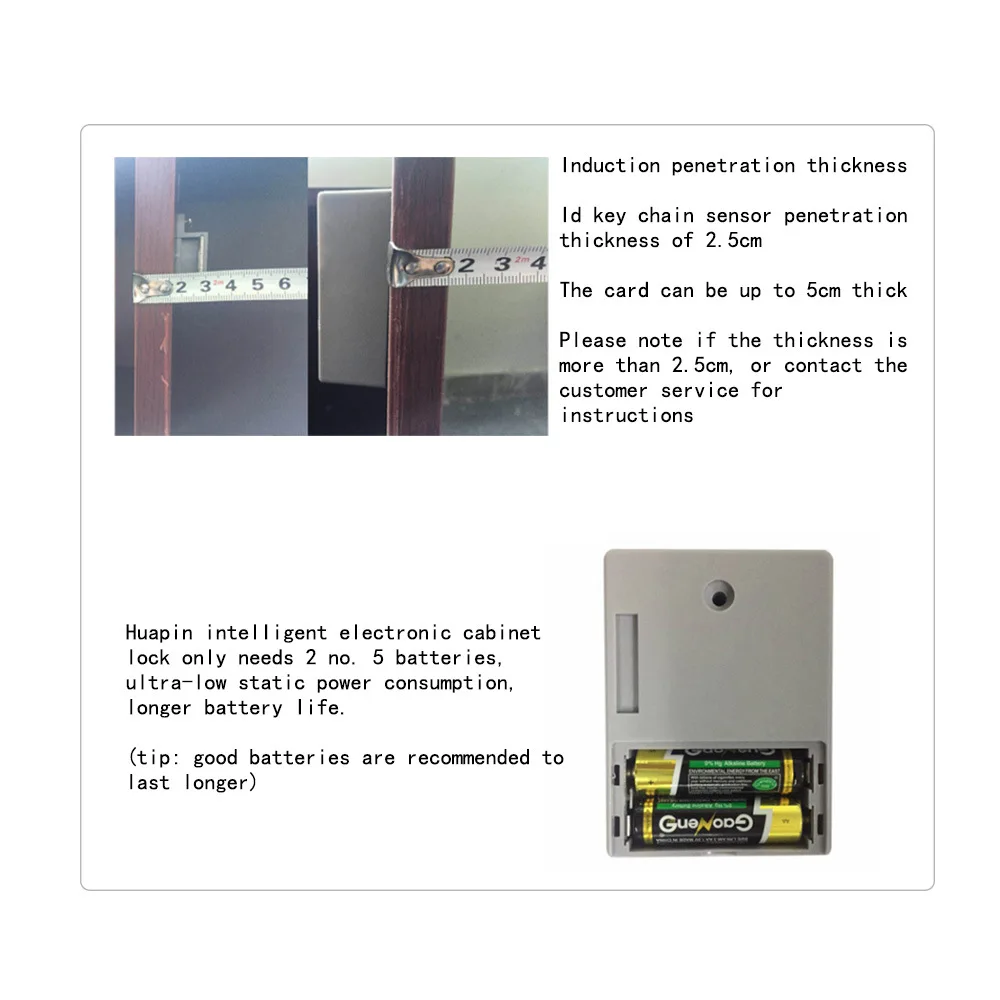

​Sensing distance :  ID keychain tag 2.5cm,  ID card 4~5cm

Attention : This lock can't be used for Metal cabinet, because the metal will interface the lock sensing the card ！！！

Manual Instruction

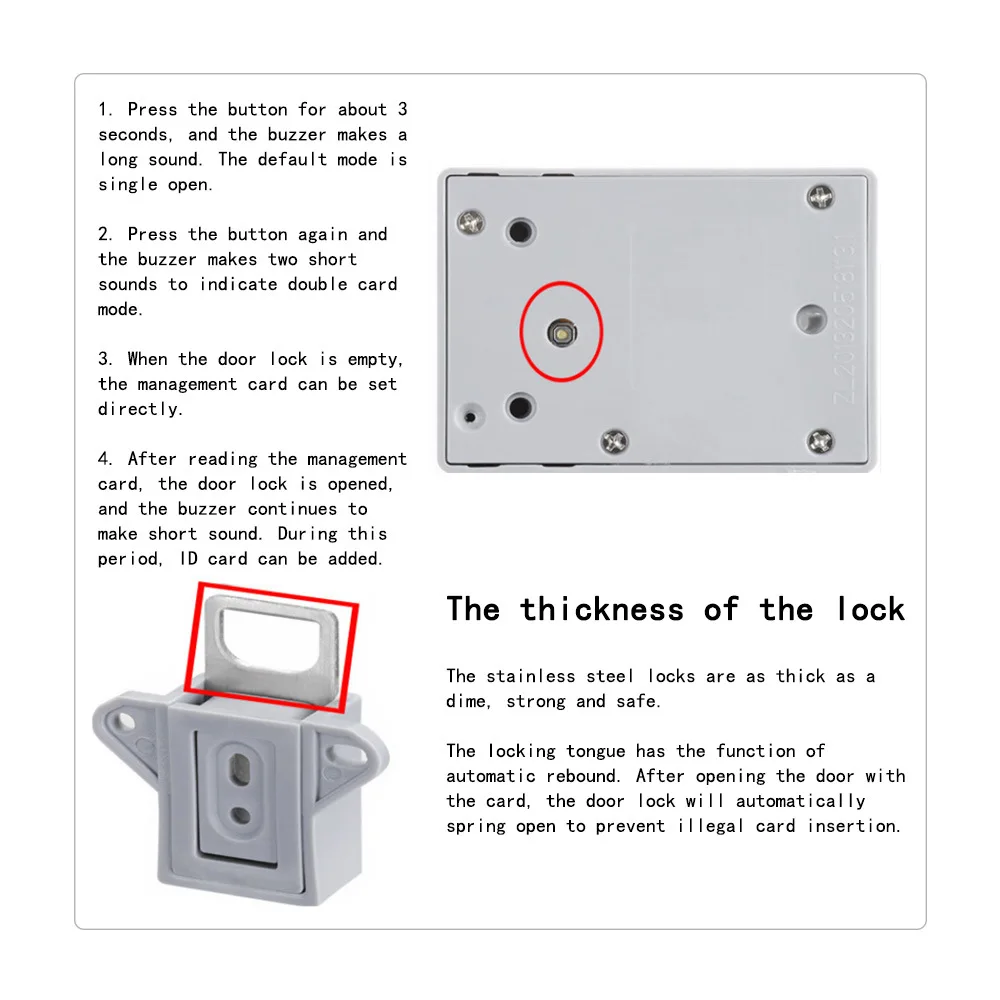

1．Single card mode

1.1  Press the reset button for about 3 seconds, then the buzzer make a long sound. Swipe card, the first card will be as manager card; if you continue to swipe card, the follow card also will be the manager card. But the max manager card is 3 pcs；so you only can add 3pcs card this time.

1.2. Add user card :  Swipe the manager card, then swipe user card, the max user card is 7pcs;

2. Double card mode

2.1  Press the reset button again and the lock output "DiDi" . Then swipe card, the first card will be as manager card; if you continue to swipe card, the follow card also will be the manager card. The max manager card is 3 pcs；

2.2. Add user card :  Swipe the manager card, then swipe card A, card A will be as server card(only can add one server card ). Continue to swipe card B,C,D…… . then B,C,D will be as user card. when you want to open the lock, you need to use two cards (server + user card) to open , like as A+B, A+C,A+D. but B+C,C+D can’t open the lock. Of course you can use any manager card to open the lock.

3. Delete card

Swipe the manger card for 3 times, and wait for 5 seconds, then all user card will be delete. Swipe manager card for 5 times, all manger card will be delete

4. Back to factory mode

Press the reset button for over 3 seconds,  the buzzer make a long sound. The lock back to factory mode. All the card will be delete.

5. Low voltage alarm

When you swipe the card, the buzzer make a long sound, that indicate the lock is low voltage, please change the battery ASAP. If the battery is not replaced, the lock will be opened automatically. On the low voltage status, opened the lock can not be locked again until you change the battery.

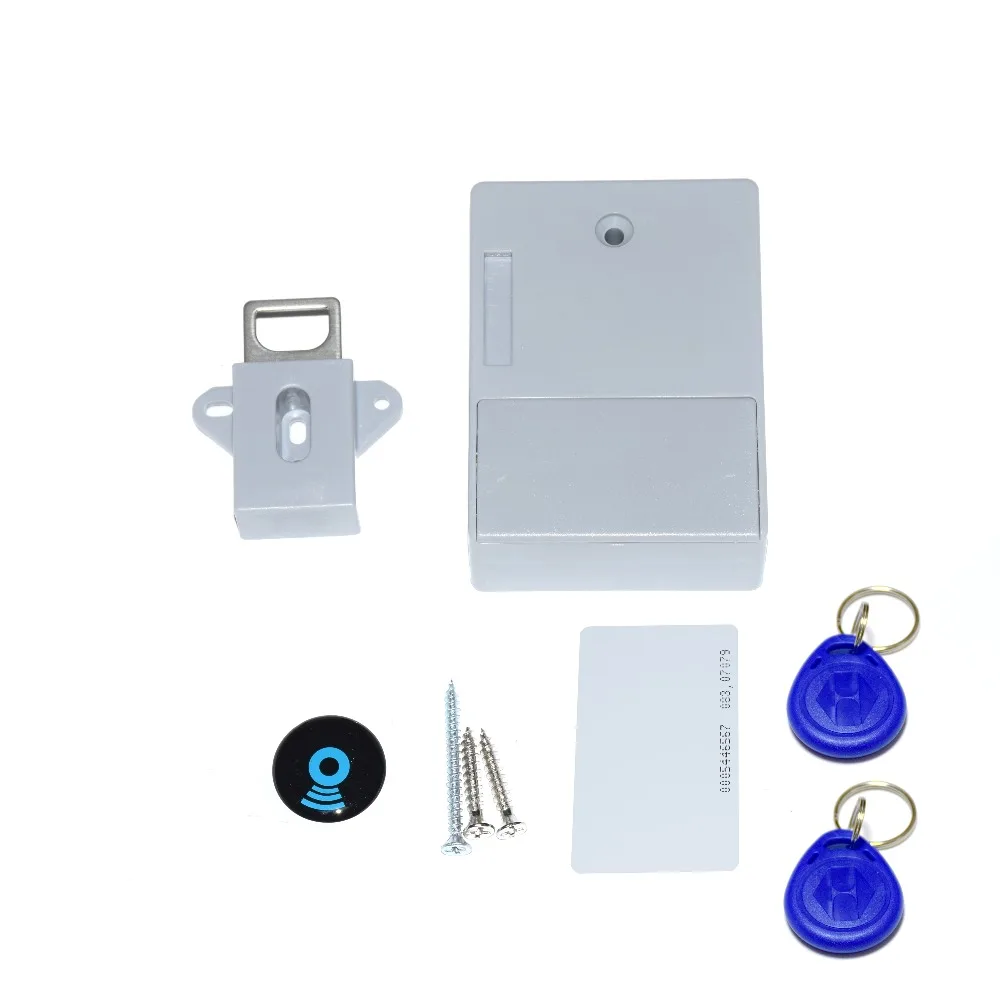

Packing List :
