10 Pin Bootloader Programmer Module Test Tool PCB Test Fixture 1 x 10P Use to Test Module, Board, Upload Bootloader for Arduino
US$ 10.28
US$ 15.82
: In stock
:
Wholesale electronics best price, bulk price,wholesale accessories Note: If you want to place the bulk order that the stock is not enough, please contact with us. You can also buy...
Share:
Wholesale electronics best price, bulk price,wholesale accessories
Note: If you want to place the bulk order that the stock is not enough, please contact with us.
NOTE: If you have other Pin count requirement, please contact with us before ordering.
We are a foreign trade technology company headquartered in Shenzhen, specialized in serving Southeast Asian customers, providing customers with one-stop services such as electronic materials, electronic products, computers and peripheral equipment, crafts, electronic watches, wearables, overall solutions, etc. We can also help Southeast Asian customers to purchase a variety of goods from China, providing high quality products.
Find the right supplier for customers in China, grow together with customers, create miracles and the future.
The founder of the company has served in the electronics industry for more than 20 years, has rich experience and technology, has its own professional electronics factory and rich supply chain.
Note: If you want to place the bulk order that the stock is not enough, please contact with us.
You can also buy Programmer Module Test Tool PCB Test Fixture 1 * 6P here (Link) :
NOTE: If you have other Pin count requirement, please contact with us before ordering.
Description

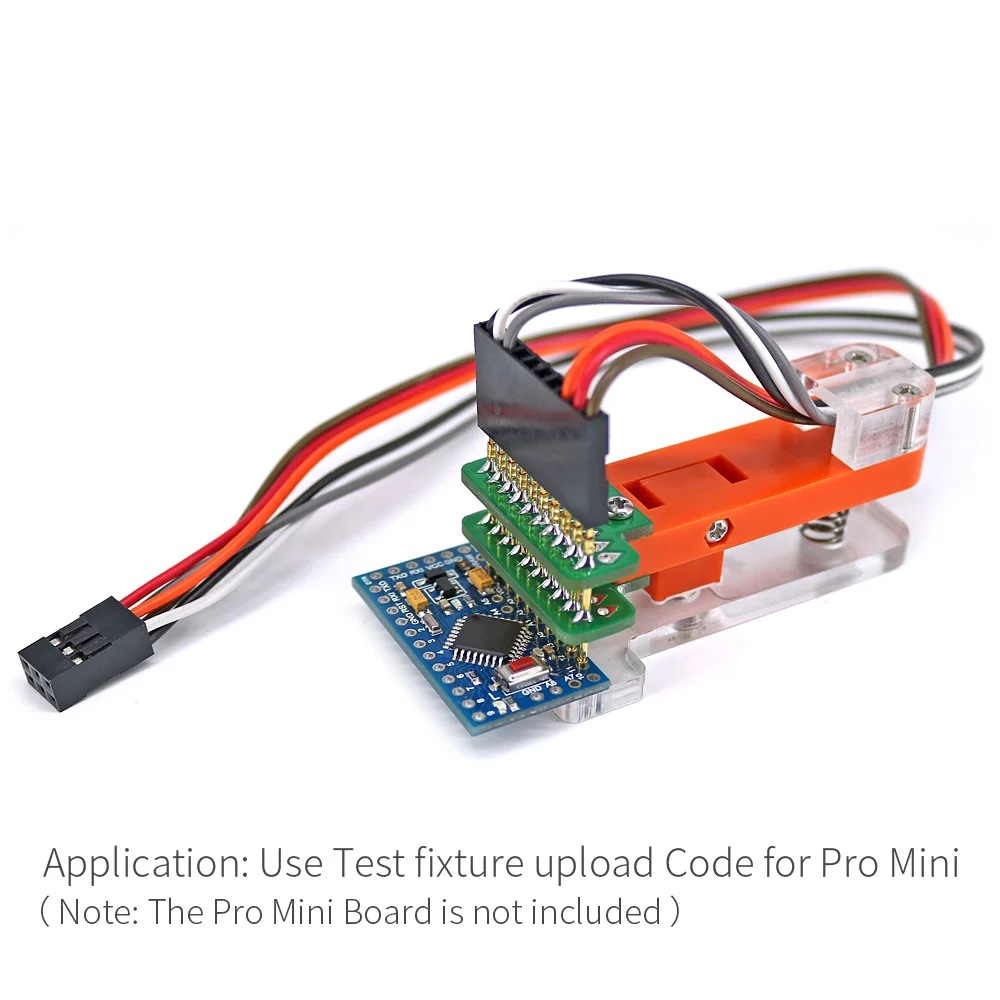

This is a test fixture dedicated to module testing and bootloader burning. It is suitable for modules and boards without soldering pin headers, and can be used to upload bootloader for Pro Mini / or for OPEN-SMART Mini ATmega8 without soldering pin headers.
feature:
- Number of Pins: 1X10P
- Pin pitch: 2.54mm
- Probe head type: P75-E3 (cone), gold-plated, durable
- Probe head applicable pad: through pad, surface pad
- Probe receptacle type: R75-3W
- Probe receptacle tail specifications: 0.64X0.64MM, apply to DuPont cable
- Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line)
- Operating current: Each pin 1A (max)
- Operating voltage: 30V (max)

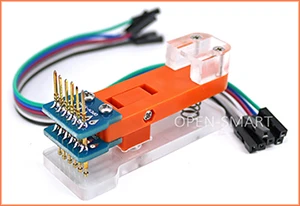

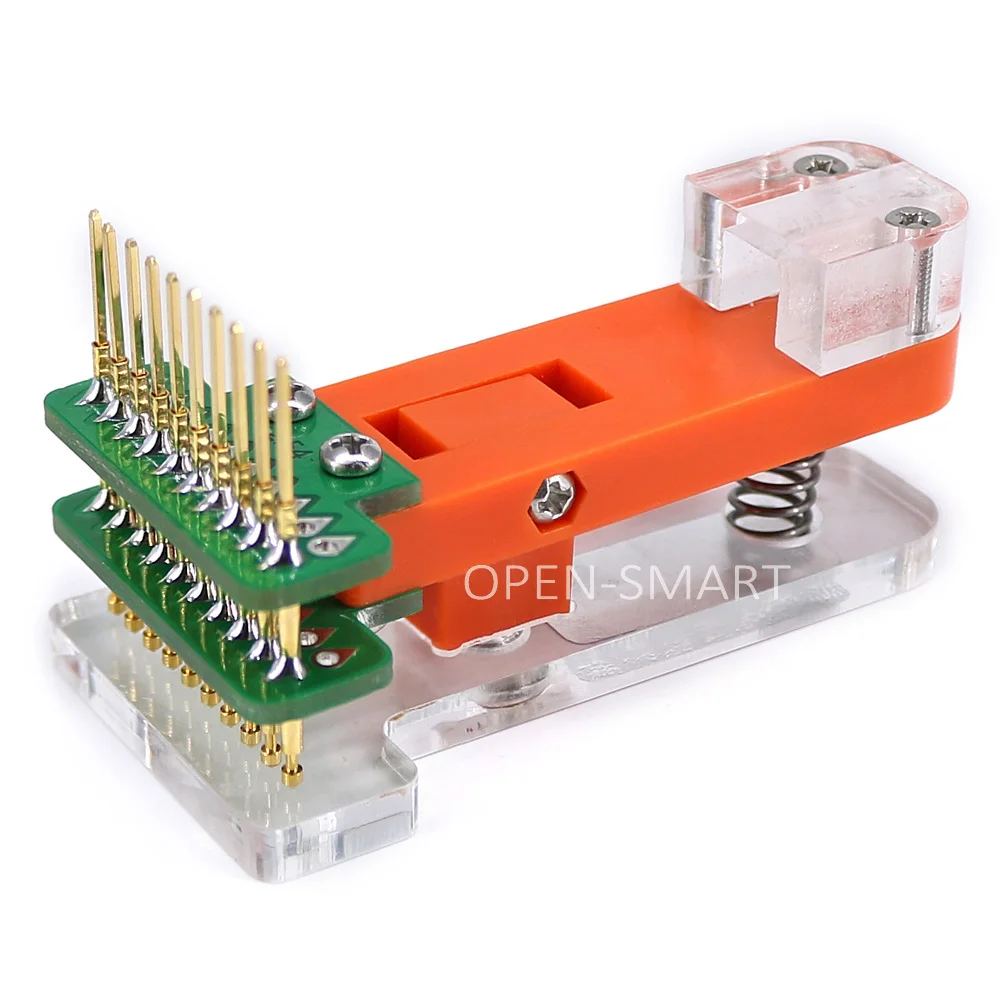

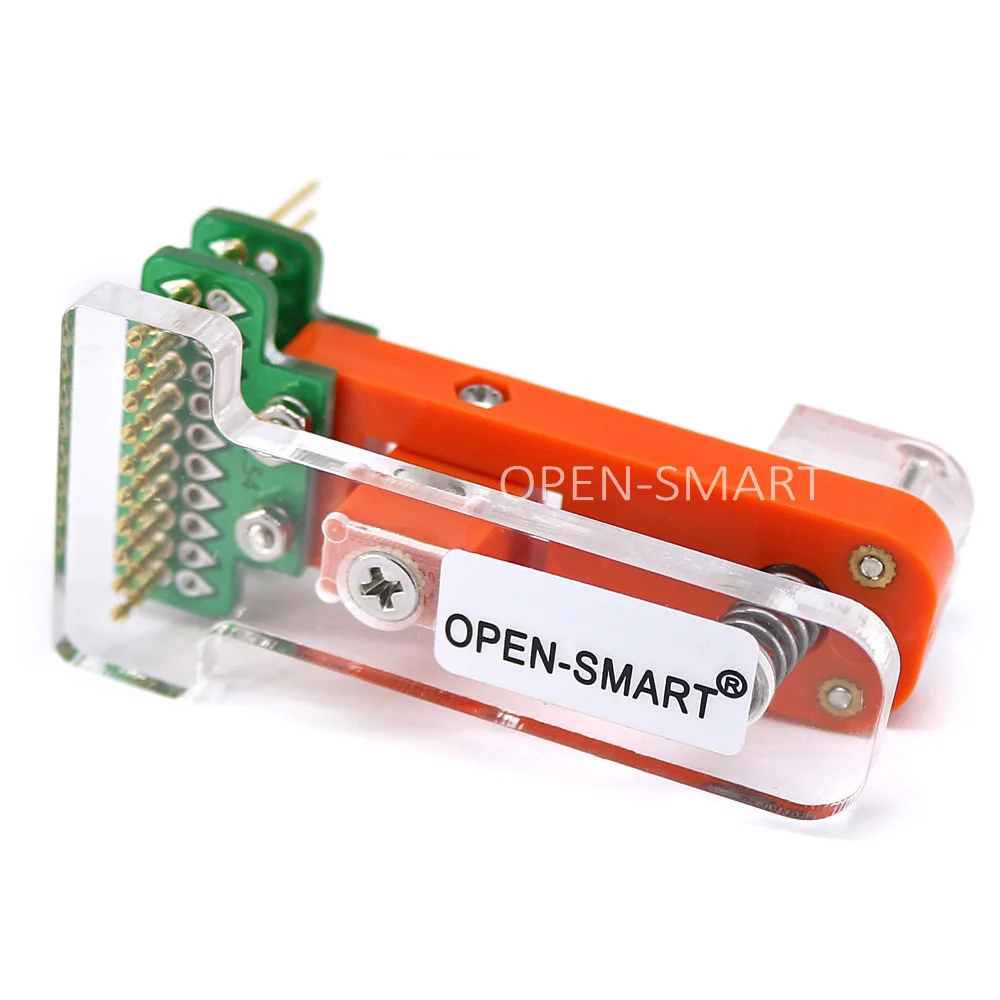

Photos
Part List (Schematics and program can be sent ,Please contact us)
1 x Test Fixture
1 x 10p female to female cable
